Interactive White Board Technology

1

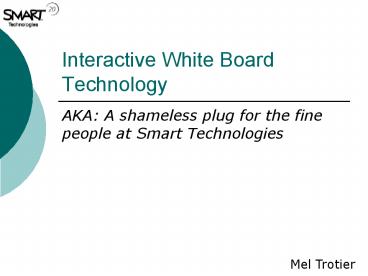

Interactive White Board Technology

• AKA A shameless plug for the fine people at
  Smart Technologies

Mel Trotier
2
Technology History

• Smart introduced the first interactive white
  board in 1991.
• Early markets were focused on those using
  distance learning such as education and
  government groups.
• An early partnership with Intel secured the
  companys financial and market future.

3
Electronic White Boards V. Smart

• Electronic whiteboards capture what you write
  using specially designed stylus handles that
  contain dry erase markers. You can then save your
  notes to a computer file. There is essentially no
  interactivity.
• Interactive whiteboards display your computer
  desktop allowing users to interact with
  applications as well as make notes, etc. that can
  be saved alone or imbedded in other files.

4
How they work/hardware/software

• The product hardware is relatively simple a
  projector, a computer and a Smart Board screen.
• The typical Smart Board also has four stylus, an
  eraser and an on-screen keyboard function.

5
What it does

• The interactive screen acts as a computer
  monitor, displaying images in large scale via a
  projector.

6
Electromagnetic Interactivity

• Boards employing electromagnetic technology are
  made by
• sandwiching a sensing grid and core material such
  as foam
• between two nonflexible plastic sheets. The
  sensing grid
• registers contact with the boards surface via an
  electronic
• pen or a pen containing a magnetic coil. All
  communication
• occurs between the special pen and surface alone,
  i.e.,
• fingers and other devices do not work.

7
Resistive Technology Interactivity

• Boards incorporating resistive technology are
  made with
• a flexible plastic front sheet and a hard
  backboard. The
• resistive sides of each are separated by a tiny
  air gap about
• the thickness of two human hairs. Pressure
  applied to the
• surface of the front sheet closes the gap,
  registering a
• contact point that is converted from an analog
  signal to a
• serial data stream and then sent to a computer
  for further
• processing. This technology can process contact
  from a
• finger, plastic pen or any device.

8
Flat screen models

• Allows users to interface via a flat screen or
  plasma television
• DViT technology lets you use your finger as a
  mouse and write on the screen without special
  tools or reduction in image quality. DViT
  technology uses cameras to track contact on the
  screen.

9

• The user can interact with the screen by using
  their finger as the mouse, dragging and tapping
  (clicking) as on a computer screen.

• There are also stylus that allow the user to
  write on the screen. These drawings can be
  saved as part of the document or discarded on
  exiting the program.

10
Front Projection Screens

• The Smartboard 660 is a model used frequently. It
  comes with the most standard features.
• Board cost 1,599
• Projector cost 2,999 for an Epson projector.
  Costs vary by lumens and portability.
• Ironically, the projector is the most expensive
  piece.
• Rear projection model 2000i can cost 10,999 and
  up.

11
The Airliner

• The Airliner is a wireless tablet that allows the
  same interactivity as a Smartboard, but from a
  distance of up to 52 feet. Multiple tablets can
  be used at the same time, even while using the
  Smartboard!
• An Airliner will only cost 699.

12
Questions

• What is the major difference between an
  interactive and an electronic white board?
• What are the major hardware components of a
  Smartboard system?
• Name two ways a user can interact with the white
  board.
• What is the major difference between
  electromagnetic and resistive interfaces?
• What is DViT and how does it allow interactivity
  with a flat or plasma screen?
• All sources from www.smarttech.com
