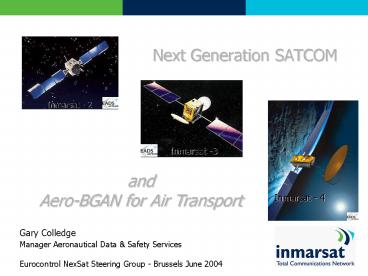

Next Generation SATCOM

1
Next Generation SATCOM
andAero-BGAN for Air Transport
Gary Colledge Manager Aeronautical Data Safety
ServicesEurocontrol NexSat Steering Group -
Brussels June 2004
2
Contents

• Update on October 03 presentation
• BGAN Extension Evolution
• Aero-BGAN Safety Services
• NexSat HLMR and Satcom CONOPS
• Potential features enabling new Safety Services

Eurocontrol NexSat Steering Group - Brussels June
2004
3
Inmarsats Next Generation satellites and SARPs
compliant communications

• Inmarsat-4 will support existing Aeronautical
  safety services
• Inmarsats Public Service Agreement (PSA)
  commitment to ICAO (and IMO)
• For the near term, data and voice safety services
  will operate via Inmarsat H/H, I and L
• Enhanced capabilities using the new Inmarsat-4
  Satellites and new terrestrial infrastructure

Eurocontrol NexSat Steering Group - Brussels June
2004
4
Inmarsats Next Generation satellites new
capabilities

• Referred to as Aero-BGAN (Broadband Global Area
  Network) working title
• Designed to operate in conjunction with existing
  safety services (voice and data) and Swift 64.
• Will provide data rates up to 432kbps per
  channel.
• Will provide both Circuit Switched and Always
  on TCP/IP data.
• Supported through High, Intermediate and Low gain
  antennas.
• Also provides the opportunity for development of
  significantly smaller terminals, and leads to
  lower priced services.
• Working with 4 avionics manufacturers

Eurocontrol NexSat Steering Group - Brussels June
2004
5
Inmarsat-4 Satellite

• User Link L Band
• Global, Regional and Narrow spot beams
• Feeder Link C Band
• Spacecraft Power 12 kW
• Launch Mass 6 Tons
• Solar Array Span 48 m
• Prime Contractor Astrium
• Current planned Launch Dates
• F1 (64E Indian Ocean) 4th Qtr 2004
• F2 (53W Atlantic Ocean) 1st Half 2005
• F3 ground spare

Eurocontrol NexSat Steering Group - Brussels June
2004
6
Inmarsat-4 Satellite

• Launch Vehicles
• ILS Atlas 5
• Sealaunch
• Current planned BGAN Service commencement
• Mid 2005
• Aero services expected 2006

Inmarsat 4 integration and environmental testing
in Toulouse
Eurocontrol NexSat Steering Group - Brussels June
2004
7
Inmarsat-4 Composite Coverage Map
Eurocontrol NexSat Steering Group - Brussels June
2004
8
BGAN Two Networks in One
Eurocontrol NexSat Steering Group - Brussels June
2004
9
BGAN Services

• CS Domain
• Direct Dial Voice
• SIM Roaming
• Voice Mail Services
• Other UMTS Services
• CLI, Call divert, Conf. Calling etc.
• SMS (Two way)
• ISDN

• PS Domain
• DSL class internet access
• Static and Dynamic IP addressing
• Bandwidth on demand
• Two service classes
• Basic IP Services- UMTS Background /Interactive
  class- Variable data rate
• Premium IP Services- Streaming- Guaranteed bit
  rate

Eurocontrol NexSat Steering Group - Brussels June
2004
10
BGAN Extension Evolution

• The Aero/Maritime Evolution programme consists
  of
• 1) Activity funded as part of BGAN Extension
• Development through to technology validation.
• Aeronautical Directional
• Maritime Omni (inc Aero)
• Multi-cast
• 50 funded by ESA / 50 by Inmarsat and partners

Eurocontrol NexSat Steering Group - Brussels June
2004
11
BGAN Extension Evolution

• 2) Other activities outside the Extension
  project
• Commercialisation
• Business Support Systems
• Type Approval
• Distribution/Sales/Marketing
• Multi-user enhancements
• Maritime directional products
• Land mobile/vehicular products

Eurocontrol NexSat Steering Group - Brussels June
2004
12
I4/BGAN Evolution Studies
Eurocontrol NexSat Steering Group - Brussels June
2004
13
Aero-BGAN Safety Services

• Evolution of the expected Aero-BGAN system would
  be required for safety services support, which
  might imply
• Planning timeline for pre-operational trials of
  Aero-BGAN safety services circa. 2010
• Beginning safety service requirements
  evaluation.Many questions, not least
• Contingency?
• How to achieve priority and pre-emption?
• The effect of applying ESARRs
• NexSat as part of latter stages of LINK 2000?
  Also CASCADE?
• ICAO view of digital voice versus circuit mode?
• Inmarsat has made Aero-BGAN technical input to
  ICAO ACP WGC

Eurocontrol NexSat Steering Group - Brussels June
2004
14
NexSat HLMR and Satcom CONOPS

• NexSat HMLR provides good starting point for
  baseline requirements, but ideally
• A Concept of Operations is required for combined
  data and voice satcom operation in European
  region answering such questions as
• What is the voice distribution requirement?
• Digitised voice offers new concepts of operation,
  should these taken into account?
• Which datalink services will the NexSat support?

Eurocontrol NexSat Steering Group - Brussels June
2004
15
Potential features enabling new Safety Services

• Make before break capability
• Seamless voice and data in designated areas
• Continuity of data delivery
• Always-on capability removes previous inherent
  R, and T channel utilisation issues
• Digitised voice offering
• New ways to ensure priority and pre-emption
  service
• Multicast capability
• Net radio

Eurocontrol NexSat Steering Group - Brussels June
2004
16
The TotalCommunicationsNetwork
Gary_Colledge_at_inmarsat.com
