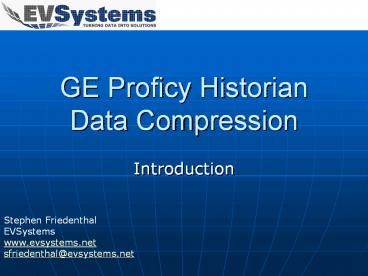

GE Proficy Historian Data Compression

1
GE Proficy Historian Data Compression

• Introduction

Stephen Friedenthal EVSystems www.evsystems.net sf
riedenthal_at_evsystems.net
2
What is data compression?

• There are two fundamental classes of file
  compression
• Identify repeating elements (e.g., ZIP file
  compression)
• Pros No loss of information all original data
  restored
• Cons CPU intensive need to compress and
  decompress, large files take a lot of time
• Identify redundant data that can be discarded
  (e.g., JPEG, dead-band, rate-of-change)
• Pros Fast, reduces network traffic, well suited
  for streaming data
• Cons Some data loss

3
Customer quotes when I ask them about compression?
Disk space is cheap.
We dont want to lose any data so we store
everything
Todays computers are so fast theres no penalty
for storing everything.
Were a regulated industry. We arent allowed
to use compression.
From all of the above, you might come to believe
that data compression is an antiquated response
to a problem that no longer exists. Computers
are fast, storage is cheap, so store everything.
4
Why compression is (still) important

• Needle in the haystack problem
• Much more difficult to find the truly interesting
  data
• Limited network bandwidth
• Storing terabytes of data is only useful if you
  can easily extract it
• High long-term costs
• Disk drives are cheap, but managing the data
  gets expensive
• Superior performance
• Storing the minimum necessary data greatly
  increases system performance and speed for
  clients servers.

5
GE Historian Compression Methods

• The Proficy Historian has two forms of data
  compression
• Collector compression (CC)Also called, dead
  band compression. It works by examining data
  and discarding any that does not exceed a defined
  limit (e.g. /- 0.5 Deg F.)
• Archive Compression (AC)Also called rate of
  change or swinging door compression. It works
  by examining data (after CC) and discarding any
  that falls within a slope range (more on this
  later.)

6
Collector Compression
Constant slope line

• Collector compression overview
• Pros
• Good at filtering out noise
• Reduces data storage by 80 to 90
• Easy to understand
• Cons
• Unable to reduce data when slope (vs. value) is
  unchanged (see constant slope section above)

7
Archive Compression

• Archive compression looks at the data after
  collector compression
• It only stores data that changes direction
  beyond a configured range
• In effect, it stores data based on its rate of
  change. Compare to collector compression which
  stores data based on the amount of change.

8
Archive Compression Effect
Red values are stored Green values are discarded
Large change in slope, so values is stored
Discarded by archive compression

• Archive compression overview
• Pros
• Can significantly reduce storage for certain
  signal types and noise
• Stores only the most relevant values
• Cons
• More difficult to tune
• More difficult to understand

9
Archive Compression A deeper dive

• How does it compare to OSIs Swinging Door
  compression?

10
OSI PI Swinging Door Comrpession
PI checks to see if all points lie inside the
compression blanket, a dead band parallelogram
drawn from end points using the CompDev as a
tolerance. If any points fall outside the dead
band, an archive event is triggered.
Even though this is the point that falls outside
the dead band, this is the one that gets archived
because it is the last end point for which all
points were inside the dead band.
11
Archive Compression vs. PI
OSI PI swinging door algorithm checks if a point
is inside parallelogram.
The GE Historian algorithm checks if line between
end points intersects the tolerance bar.
4) Check if ABS difference lt CompDev
2) Calculate upper y for this x.
1) Calculate slope of upper line
3) Calculate difference
5) Check if point y is lt upper y
6) Check if point y is gt lower y
1) Calculate slope of this line
2) Calculate y for this x.
4) Calculate lower y for this x.
3) Calculate slope of lower line
12
GE Archive Compression vs. PI
New Point
Archived Point
Swinging Door method.
Instead of checking if each point is inside the
parallelogram, the GE Proficy Historian checks if
the line intersects the dead band of each point.
GE Proficy Historian
New Point
Archived Point
13
GE Archive Compression Example

• As an additional benefit, there is no need to
  buffer all points between the last archived point
  and the newest point.
• Heres an example of how it works. The key
  points to understand
• An Archived Point is one that is stored
• A Held Point is the last good value that
  arrived. We dont know if it will be stored
  until the next value arrives to tell us if the
  slope has changed sufficiently.

Held Point
Archived Point
After a point is archived, the next point becomes
the held point.
14
GE Archive Compression Example
Construct error bands around the held
point. PI E CompDev GE E deadband / 2
E
E
Archived Point
Held Point
15
GE Archive Compression Example
Step 1 Calculate the slopes of the two lines, U
and L, connecting the archived point with the
upper and lower ends of the error bands (dead
band) associated with the held point.
_ U
Archived Point
_ L
Held Point
16
GE Archive Compression Example
The upper and lower slopes define a critical
aperture window.
Critical Aperture Window
_ U
Archived Point
_ L
Held Point
17
GE Archive Compression Example
If the slope of the line N, connecting the
archived point with the new point, is between the
upper and lower slopes, it intersects the dead
band of the held point.
_ U
_ N
New Point
Archived Point
_ L
Held Point
18
GE Archive Compression Example

• As new points are added, the previous new point
  becomes the current held point, and the same
  process is repeated.
• The critical aperture window will always be
  constructed from the lowest upper slope and the
  highest lower slope to insure that the conditions
  necessary to compress all previous points will be
  preserved.
• If the slope of the new point is within the
  critical aperture window, the previous held point
  may be discarded.

You can forget about this point now.
Forget the slope of this line
New Point
Remember the lowest upper slope and the highest
lower slope.
Held Point
Forget the slope of this line
19
GE Archive Compression Example
With each new point the process is continued,
narrowing the aperture and discarding unnecessary
points as you go.
Forget
Forget
New Point
Keep
Held Point
Forget
20
GE Archive Compression Example
With each new point the process is continued,
narrowing the aperture and discarding unnecessary
points as you go.
Keep
Forget
Forget
New Point
Held Point
Forget
21
GE Archive Compression Example
With each new point the process is continued,
narrowing the aperture and discarding unnecessary
points as you go. If this continues long enough,
the critical aperture window will close,
converging on the slope of the trend for this
segment.
Keep
Forget
Forget
New Point
Held Point
Forget
22
GE Archive Compression Example
When the slope of the new point lies outside of
the critical aperture window, an archive event is
triggered.
Keep
Outside critical aperture window.
Forget
New Point
Forget
Held Point
Forget
23
GE Archive Compression Example
The held point is archived, the new point becomes
the held point and the process starts anew.
The previous new point is now the held point.
Held Point
Archived Point
The held point is now archived.
24
GE Archive Compression Example
The process continues, as additional data arrive
the critical aperture grows longer and thinner
until a new value triggers an archive event.
Held Point
25
GE Archive Compression Example
This one example is very encouraging, but more
statistically significant work must be done as
well as a data quality assessment comparing these
approaches.
23 out of 120 points archived
10 out of 120 points archived
26
Questions

• Stephen Friedenthal
• EVSystems
• www.evsystems.net
• 617.916.5101
