RPC Auditing Tools

1

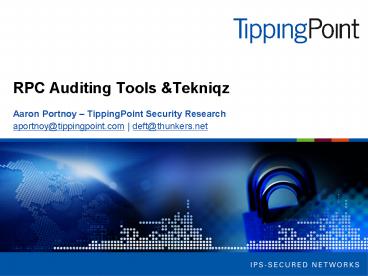

RPC Auditing Tools Tekniqz

• Aaron Portnoy TippingPoint Security Research
• aportnoy_at_tippingpoint.com deft_at_thunkers.net

2
The Problem

• Problems to be solved
• Communicating with an RPC Server
• All you have is an IDL (interface description
  language file)
• Need to code Metasploit module, Impacket script,
  or full C client
• Tests frequently return RPC_X_BAD_STUB_DATA
• Embedded structures/unions can get VERY unwieldy
• Dont know what the traffic looks like on the
  wire
• NDR data is often padded in annoying ways
• Auditing (be it fuzzing or otherwise)
• No way to dynamically update your data
• Summary pain in the ass to audit by hand

3
For Example

• For Example
• You must obtain the IDL information
• Weve written scripts to automate this
• Heres an IDL snippet from LSASRV.dll
• Once you have the IDL you must code a client

long _s_SSCryptUnprotectData (
outsize_is(arg_2) byte arg_1, out long
arg_2, insize_is(arg_4) byte arg_3,
in long arg_4, in, outptrstring wchar_t
arg_5, inuniquesize_is(arg_7) byte
arg_6, in long arg_7, in, outptr struct
struct_1 arg_8, inunique struct struct_2
arg_9, in long arg_10, inuniquesize_is(ar
g_12) byte arg_11, in long arg_12 )
This sucks.
4
The Solution

• What weve done
• Written an IDL lexer and parser
• Returns instantiated objects for any IDL on WinXP
  and Win2k
• Allows you to quickly parse any IDL and instantly
  talk to the RPC Server
• Uses Impacket to actually send our packed data
• Written an NDR library
• Parser returns instantiated NDR opcodes, structs,
  and unions
• Each object has a get_packed() which returns
  ready-to-send data
• Began work on context-aware RPC sessions
• Allows deeper auditing
• Saves handle information

5
The Tools

• Heres an excerpt
• An IDL opcode
• The parsers debug output

/ opcode 0x4A, address 0x75799D53 / long
sub_78590C02 ( incontext_handle void
arg_1, in struct struct_2C arg_2, in /
enum16 / short arg_3, in struct struct_2D
arg_4, in char arg_5, out struct struct_2E
arg_6 ) Parsing opcode
0x4A ------------------------ arg_1
ltndr.ndr_context_handle instance at
0x00B26468gt arg_2 ltndr.ndr_struct instance
at 0x00B264B8gt ltndr.ndr_short instance
at 0x00B26508gt ltndr.ndr_short instance
at 0x00B265D0gt ltndr.ndr_unique instance
at 0x00B265A8gt ltndr.ndr_unique instance
at 0x00B26698gt arg_3 ltndr.ndr_short
instance at 0x00B264E0gt arg_4
ltndr.ndr_struct instance at 0x00B26710gt
ltndr.ndr_long instance at 0x00B26760gt
ltndr.ndr_unique instance at 0x00B267D8gt
arg_5 ltndr.ndr_char instance at 0x00B26670gt
out parameter ------------------------
Finished opcode 0x4A
6
Questions, etc aportnoy_at_tippingpoint.com
deft_at_thunkers.net

• dvlabs.tippingpoint.com
