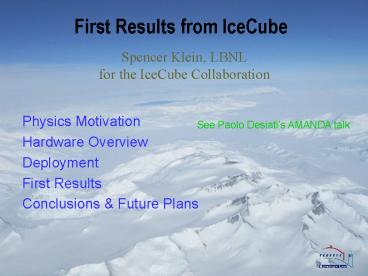

First Results from IceCube

1
First Results from IceCube
Spencer Klein, LBNL for the IceCube Collaboration

• Physics Motivation
• Hardware Overview
• Deployment
• First Results
• Conclusions Future Plans

See Paolo Desiatis AMANDA talk
2

• Alabama University, USA
• Bartol Research Institute, Delaware, USA
• Pennsylvania State University, USA
• UC Berkeley, USA
• UC Irvine, USA
• Clark-Atlanta University, USA
• Univ. of Maryland, USA

• IAS, Princeton, USA
• University of Wisconsin-Madison, USA
• University of Wisconsin-River Falls, USA
• LBNL, Berkeley, USA
• University of Kansas, USA
• Southern University and AM College, Baton
  Rouge, USA

The IceCube Collaboration
USA (12)
Japan
Europe (12)

• Chiba university, Japan
• University of Canterbury, Christchurch, NZ

New Zealand

• Universite Libre de Bruxelles, Belgium
• Vrije Universiteit Brussel, Belgium
• Université de Mons-Hainaut, Belgium
• Universiteit Gent, Belgium
• Humboldt Universität, Germany
• Universität Mainz, Germany
• DESY Zeuthen, Germany
• Universität Dortmund, Germany

• Universität Wuppertal, Germany
• Kalmar university, Sweden,
• Uppsala university, Sweden
• Stockholm university, Sweden
• Imperial College, London, UK
• Oxford university, UK
• Utrecht university, Netherlands

ANTARCTICA
3
Physics Motivation

• Search for cosmic-ray accelerators
• Protons are bent in galactic magnetic fields
• n are produced by hadron accelerators
• HE (gt51013 eV) photons are absorbed by
  interaction with 30K microwave background photons
• gg --gt ee-
• Study the High-Energy Universe
• 100 GeV 1019 eV
• Cross section effective area rise with energy,
  so a single detector can cover a very wide energy
  range

4
Physics Topics

• Source searches
• Active Galactic Nuclei
• Supernova remnants
• Gamma-Ray Bursts
• Calculations predict 1-10 n/km3/year from many
  source models
• Neutrino physics
• Expect 100,000 atmospheric n/year
• Cross-section measurements
• Absorption in earth
• Decoherence
• Oscillations
• Searches for supersymmetry, WIMPs, MeV n from
  supernovae, monopoles, Q-balls.

Active Galactic Nucleus
Crab Nebula
5
Detector Requirements

• Need 1 km3 area for a good chance to see signals
• Requires a natural material
• Ice or water
• South Pole Ice has
• Long absorption length
• Shorter scattering length
• Depth dependent
• Low dark noise rates

Ice model Scattering vs. wavelength and depth
6
Lessons from AMANDA

• AMANDA pioneered n astronomy at the South pole
• Deployed first OMs 1993/4
• Observed atmospheric nm
• Deep ice (gt 1 km) has good optical qualities
• Data transmission to surface nontrivial
• Paolo Desiatis talk will present AMANDA results

A muon in AMANDA
7
IceCube

• 1 gigaton instrumented volume
• 80 strings of 60 digital optical modules
• 1450-2450 m deep
• 17 m spacing
• 125 m hexagonal grid
• Each DOM is an autonomous data collection unit
• IceTop air shower array
• 160 surface water tanks
• Each contains 2 DOMs

• 1 string 8 tanks deployed Jan. 2005

8
nm, ne and nt

• IceCube will distinguish nm, ne and nt based on
  the event characteristics
• nm --gt m produce long muon tracks
• Good angular resolution, limited energy
  resolution
• Atmospheric nm are a significant background to
  searches for extra-terrestrial n
• Soft energy spectra --gt may improve signal to
  noise ratio by optimizing for higher energy n
• ne --gt e produce EM showers
• Good energy resolution, poor angular resolution
• Above 1016 eV nt produce double-bang events
• One shower when the t is created, another when it
  decays

9
Simulated m Events
Eµ10 TeV, 90 hits
Eµ6 PeV, 1000 hits
10
A simulated multi-Pev nt event
A ne would appear as a single shower n.b. gbct
300 m for Et 6 TeV
11
Digital Optical Module
Hardware
LED flasher board
PMT base
25 cm PMT
main board
33 cm Benthosphere
12
Analog Front-End

• Want to measure arrival time of every photon
• 2 waveform digitizer systems
• 200-700 Megasamples/s, 10-bit
• switched capacitor array
• 3 parallel digitizers give 14 bits of dynamic
  range
• 128 samples --gt 400 nsec range
• Dual chips to minimize dead-time
• 40 Megasamples/s, 10-bit ADC
• 256 samples --gt 6.4 ms range
• Self-triggered
• Also, local-coincidence circuitry looks for
  hits in nearby modules

Time bin (3.3 ns)
An ATWD waveform
13
DOM Readout

• Each DOM is a mini-satellite
• FGPA ARM7 CPU for
  control, data compression
• Packetized data is sent to surface
• Baseline data transmission
• waveforms for local coincidence data
• Rate 15-30 Hz
• timing and charge info for isolated hits
• Rate 700 Hz
• Rapcal timing calibration maintains
  clock calibration to lt 2 nsec

A Main Board
14
Surface DAQ

• Trigger based on multiplicity topology (in a
  sliding time window)
• Selected data saved to tape
• High-priority data sent north over a satellite
  link
• GPS clock for overall timing

15
IceCube
AMANDA
South Pole
Skiway
Dome (old station)
road to work
Summer camp
Amundsen-Scott South Pole station
http//icecube.wisc.edu
16
Hose reel
IceTop tanks
The drilling site in January, 2005 Hot-water
drilling
17
The 5 MW water heater for the hot water
drill (car-wash technology)
Hose Reel
18
An IceTop tank
Each 2 m dia. IceTop tank contains two DOMs.
m signals from IceTop DOMs
19
Schedule Logistics

• Can work December --gt mid-February
• Logistics are a huge concern
• Freight, power, are expensive!
• Weather is always a factor

The new South-Pole station
20
IceCubes First String January 28, 2005
27.1, 1008 Reached maximum depth of 2517
m 28.1, 700 preparations for string
installation start 915 Started installation of
the first DOM 2236 last DOM installed 12
min/DOM 2248 Start drop 29.1, 131 String
secured at depth of 2450.80 2040 First
communication to DOM
21
2 high-multiplicity muon events
Time Residual (ns)
Depth (m)
Time Residual (ns)
Time Residual (ns)
Depth (m)
22
First Results from String 21

• Time calibration
• Muon reconstruction
• Timing verification with muons
• Timing and Energy measurement with LED flashers
• Coincidence events
• IceCube - IceTop

23
Time Calibration
In-ice DOMs
Time
IceTop
IceTop
24
Muon and Flasher Reconstruction
10m-long cascades, ne nt neutral current

• Observe Cherenkov radiation from charged particle
  tracks
• Muons produce km long tracks
• hadronic shower at interaction point
• EM cascades produce point sources
• LED flashers are a surrogate for ne
• Reconstruct both with maximum likelihood
  techniques
• Use arrival times of all photons, as determined
  from waveform information

25
Muon zenith angle distribution
26
Timing studies with muons
The random and systematic time offsets from one
DOM to the next are small, /- 3ns
Residual Timing (ns)
Scattering L (1/m)
27
A flasher event
Flasher
Color --gt arrival time Circle size --gt
Amplitude

• Equivalent to 60 TeV ne

28
Timing resolution from flashers
Photon arrival time difference between DOM45 46

1.74 ns rms
29
Energy Measurement for flashers

• Reconstruct energy of flash for each flashing
  DOM, using known position
• Variation due to
• Ice models
• LED intensity
• Detector Response..
• Good agreement across entire string

All LEDs Side LEDs 450 LEDs 1/3 Intensity
30
IceTop and in-ice coincidences
Some of the difference is due to shower curvature
31
Conclusions Outlook

• IceCube will explore the high-energy n sky.
• With a 1 km3 effective area, IceCube has the
  power to observe extra-terrestrial neutrinos.
• We deployed our first string in January, 2005.
• 76 out of 76 DOMs are working well.
• Timing resolution is lt 2 nsec
• Next austral summer, we will deploy 8-12 more
  strings.
• Largest neutrino observatory in the world.
• By 2010, we will have instrumented 1 km3.

32
Extras/Backup

• IceCube reviewers read no farther

33
10 PMT Hamatsu-70
34
Muon Angular Resolution
Waveform information not used. Will
improve resolution for high energies !
35
Timing verification with light-flashers
