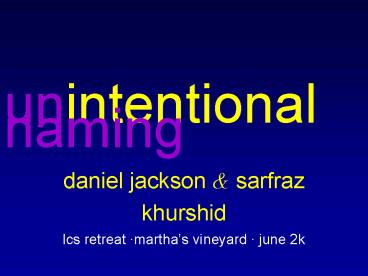

daniel jackson

1
daniel jackson sarfraz khurshidlcs
retreat marthas vineyard june 2k
unintentionalnaming
2
alloy project

• hypothesis
• better software?
• base on clear simple concepts
• why models?
• smaller more flexible than code
• can analyze exhaustively
• alloy
• a RISC modelling notation
• for structural properties
• SAT-based analyzer

3
architecture
4
intentional naming case study

• why INS?
• naming vital to infrastructure
• INS more powerful than Jini, COM, etc
• the Kaashoek challenge
• what?
• analyzed lookup operation
• based model on SOSP paper Java code
• a few weeks in April
• Khurshid did all the work

5
intentional naming

• attribute/value pairs
• ?city cambridge?
• hierarchical specs
• ?city cambridge, building ne43, room 524?
• ?service camera, resolution hi?
• ?service printer, postscript level2?
• lookup
• database maps spec to set of records
• query is set of specs
• lookup returns records meeting all specs

6
tree representation
7
strategy

• model database queries
• characterize by constraints
• generate samples
• check properties
• obvious
• no record returned when no attributes match
• claims
• wildcards are equivalent to omissions
• essential
• additions to DB dont reduce query results
• discuss and refine

8
alloy model state

• model INS domain Attribute, Value,
  Recordstate Root fixed Value! valQ
  Attribute? -gt Value? attQ Value? -gt Attribute
  valDB Attribute? -gt Value attDB Value?
  -gt Attribute rec Value -gt Record lookup
  Value -gt Record

9
alloy model constraints

• // no cycles in queryinv Q4 no v v in
  v.nextQ
• // if query and DB share a leaf value, lookup
  returns its recordsinv Lookup1 all v no
  v.attQ no v.attDB -gt v.lookup v.rec
• // adding a record doesnt reduce resultsassert
  LookupOK7 AddRecord -gt Root.lookup in
  Root.lookup'

10
checking assertions
3 attrs,vals, recs
selectscope
runcheck
fixmodel
incrscope
counter?
N
Y
N
N
real?
slow?
Y
Y
propfails
propholds
11
results

• 12 assertions checked
• when query is subtree, ok
• found known bugs in paper
• found bugs in fixes too
• monotonicity violated

12
counterexample
13
time effort

• costs
• ? 2 weeks modelling, 100 lines Alloy
• cf. 900 lines testing code
• ? all bugs found in lt 10 secs with scope of 4
• 2 records, 2 attrs, 3 values usually enough
• cf. a year of use
• ? exhausts scope of 5 in 30 secs max
• space of approx 1020 cases

14
lessons

• ?
• quick easy prototyping
• more effective than testing
• assertions easily invented
• visualization a big help
• ?
• model not modular
• algorithm a bit tricky
• cant express paths

15
related experiences

• case studies
• microsoft COM no encapsulation
• collaborative arrival planner ghost planes
• PANS phone light gets stuck
• other users
• alloy taught in courses at 5 universities
• case studies at DERA, ATT, FS, U.Southampton,
  Imperial, Oxford
• typical dimensions
• model 20 200 lines
• space 30 300 bits

16
helping oxygen?

• rapid experimentation
• articulating essence
• simplifying design

17
musings

• why does Alloy help?
• ?lazy specification
• ?refining design ideas
• ?catching showstopper bugs
• modelling on the rise?
• tool as trojan horse (SDL, SPIN, SMV)
• design patterns phenomenon
• shop floor to drafting office, c.1850
