Title: Bio-Networking Architecture

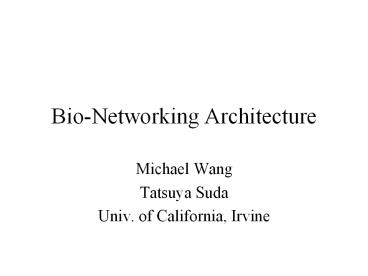

1
Bio-Networking Architecture
  • Michael Wang
  • Tatsuya Suda
  • Univ. of California, Irvine

2
Outline
  • Motivation (Observation of Biological Systems)
  • Overview of the Bio-Networking Architecture
  • how bio concepts are used in the bio net
  • Bio-Networking Architecture Design
  • cyber-entity design
  • platform software design
  • Preliminary Adaptation Simulation
  • Bio-Net Based Web Application
  • Summary

3
Key Requirements
  • Network services/applications need to be
  • scalable (to millions of users)
  • adaptable (to heterogeneous and dynamic network
    conditions)
  • survivable (from security attacks) and (always)
    available
  • simple (easy to design and maintain)

4
Large Scale Biological Systems
  • Example bee colony key features
  • scalable
  • adapt to environment
  • evolve to more optimal forms
  • secure and survivable
  • relatively simple components (individual bees)

5
Key Biological Concepts
  • Emergent behavior/characteristics
  • simple behaviors
  • Lifecycle
  • food/energy, reproduction, death
  • Evolution
  • diversity, natural selection
  • Local interactions
  • Scent/pheromones
  • Self-protection

6
Outline
  • Motivation (Observation of Biological Systems)
  • Overview of the Bio-Networking Architecture
  • how bio concepts are used in the bio net
  • Bio-Networking Architecture Design
  • cyber-entity design
  • platform software design
  • Preliminary Adaptation Simulation
  • Bio-Net Based Web Application
  • Summary

7
Bio-Net Emergent Behavior
  • Biological systems
  • useful group behavior emerge from autonomous
    local interaction of individuals with simple
    behaviors

8
  • Bio-Network
  • applications/services are implemented by a
    distributed, collective entity, super-entity
  • super-entity consists of multiple autonomous
    entities, cyber-entities
  • each cyber-entity behaves similarly to biological
    entities (e.g., migration, replication/reproductio
    n, energy exchange)
  • each cyber-entity has basic functionality related
    to its application and service

9
super-entity
individual cyber-entities
  • Desirable characteristics emerge in the
    super-entity from the actions/interactions of its
    cyber-entities

10
Bio-Net Food and Energy
  • Biological systems
  • biological entities strive to gain energy by
    seeking and consuming food

11
  • Bio-Network
  • cyber-entity stores and expends energy (food,
    money)
  • energy exchange
  • gain energy from a user in exchange for
    performing a service
  • expend energy to use network/computing resources
  • energy can be used as a control mechanism
  • abundance induces replication or reproduction
  • scarcity induces death

12
Bio-Net Evolution and Adaptation
  • Biological systems
  • the biological system specializes and optimizes
    itself for environmental changes of long-term
    (evolution) and short-term (adaptation)
  • key components
  • diversity from mutations and crossovers during
    replication and reproduction
  • natural selection keeps entities with beneficial
    features alive and increase reproduction
    probability

13
  • Bio-Network
  • super-entity and cyber-entities evolve, adapt,
    and localize through diversity and natural
    selection
  • diversity
  • cyber-entities replicate/reproduce with mutation
    and crossover
  • human designers can introduce diversity in
    cyber-entities

14
  • natural selection
  • death from energy starvation
  • tendency to replicate/reproduce from energy
    abundance

15
Bio-Net Local Interactions (Social Networking)
  • Human society six degrees of separation
    concept
  • any two humans being separated by at most six
    relationships
  • A asks his friends to find B friends of A ask
    their friends to find B etc.

16
  • Bio-Network
  • directory service capability (Social Networking)
  • cyber-entities establish relationships
  • cyber-entities in same super-entity are of the
    same family
  • cyber-entities in different super-entities may
    form friends
  • when a cyber-entity wants to find a cyber-entity
    belonging to another super-entity, it asks its
    family and friends
  • if they dont have a relationship with a
    cyber-entity in the target super-entity, they ask
    their family and friends

17
Bio-Net Pheromones
  • Biological systems
  • pheromones are emitted to attract partners, find
    partners, deter enemies, and sense danger
  • pheromones decay with time and distance

18
  • Bio-Network
  • cyber-entities emit pheromone packets
  • to improve the social networking efficiency
  • check the adjacent nodes for pheromones
  • follow the strength of pheromones
  • to keep cyber-entities of the same type apart

19
Outline
  • Motivation (Observation of Biological Systems)
  • Overview of the Bio-Networking Architecture
  • how bio concepts are used in the bio net
  • Bio-Networking Architecture Design
  • cyber-entity design (design only, not
    implemented)
  • platform software design
  • Preliminary Adaptation Simulation
  • Bio-Net Based Web Application
  • Summary

20
Design Node Architecture
Resource Cyber-entity
Other Cyber-entities
Resource negotiation Energy exchange
Resource configuration control
Resource access
Bio-Networking Platform Software
Virtual Machine (e.g. Java Virtual Machine)
Unmodified, commercial software
Heterogeneous OS Hardware
21
Design Cyber-Entity
ID
Super-entity ID
Attributes
Type
Stored Energy
Age
Non-Executable Data
Body
Cyber-Entity
Executable Code
Migration
Replication
Reproduction
Behavior
Protection
Service
Communication
Pheromone Emission
...
22
Basic Cyber-entity Behaviors
  • Migration
  • Replication, Reproduction
  • Social Networking
  • Pheromone Emission
  • Protection
  • Communication
  • Energy Exchange

23
Design Behaviors
  • A cyber-entity behavior can be implemented by a
    number of algorithms

24
Design Migration Behavior
Example algorithm

calculate the direction a user request came from
- W2
calculate cost of migration
W1
gt M
If
then migrate
Factors which affect migration
W1, W2, and M (aggressiveness) are parameters
25
Design Reproduction
  • Factors that affect reproduction behavior
  • stored energy level
  • availability of desirable mate (age, energy
    level, type)
  • reproductive aggressiveness
  • Crossover and mutation

26
Mutation
  • Concatenate behavior factor weights into a bit
    string
  • Flip a random bit to mutate

Aggressiveness
Energy source proximity
Mutual repulsion
Migration Cost
gt

-
0011
1001
1011
1001
0011
1001
1001
1001
27
Mutation
  • Arrange algorithm in a tree

gt
gt
-
-
mutation


Aggressiveness
Aggressiveness
Migration Cost
Migration Cost
Fairness
Mutual repulsion
Energy source proximity
Energy source proximity
28
Crossover
Parent A behaviors
Parent B behaviors
Child behaviors
29
Increasing Diversity
  • Human designers can introduce behavioral
    diversity into the cyber-entity population
  • Diversity will
  • ensure large domain for evolution
  • make the population more immune to specific
    attacks

30
Design Social Networking
  • Cyber-entities establish relationships
  • family relationship (cyber-entities belonging to
    the same super-entity)
  • friend relationship (cyber-entities not in the
    same super-entity)
  • Cyber-entities with relationships inform each
    other of their super-entity membership and
    current network location
  • existing multicast algorithms will be used

31
  • For cyber-entity s to find super-entity T,
  • s multicasts inquiry to a subset of its family
    members.
  • if family members share a node or have
    relationship with any members of T or can detect
    a member of T using pheromones, T is found.
  • otherwise, family members contacted by s ask
    their friends to find T
  • this process repeats until T is found.

32
Finding a Super-Entity
Red Group Found at R
  • Green cyber-entity wants to find/join Red
    super-entity
  • Green finds Blue Group
  • Green multicasts inquiry to Blue Group
  • if Blue Group does not find Red Group, Blue Group
    asks its friends

G
33
Finding Nearest Cyber-Entity
  • Starting from R0
  • navigate toward the adjacent node with smallest
    distance to G
  • stop navigation when all other adjacent nodes are
    farther in distance

R0
G
R
34
Social Networking Issues
  • Recursive querying large amounts of traffic
  • sequential search vs. parallel search
  • a maximum propagation count set for queries
  • initial queries with low propagation count
    increase the count if previous queries did not
    succeed
  • Social network may be partitioned so that one set
    of cyber-entities cannot find another set

35
Design Pheromone Emission
  • Cyber-entity can emit pheromone packets
    containing cyber-entity ID, super-entity
    membership
  • Factors of the pheromone emission
  • strength of pheromone
  • decays with distance from the source
  • decays with time
  • rate of pheromone emission

36
  • Pheromone
  • allows a cyber-entity to know what other
    cyber-entities on neighboring nodes
  • to improve the performance of the social net
  • to keep cyber-entities of same type apart
  • to find a mate for reproduction

37
Design Protection
  • Cyber-entities protection behaviors include
  • information fragmentation and dispersion

38
Fragmentation and Dispersion
A file or document is fragmented and given to
multiple cyber-entities Cyber-entities disperse
by migrating to different places in the network
b
a
a
c
b
c
original file
abc
39
Variable Rate of State Change
Not all cyber-entities change immediately
Authenticated (signed) Update Request
40
Consistency Checking
All cyber-entities periodically check consistency
with their replicas
Successful attack
41
Outline
  • Motivation (Observation of Biological Systems)
  • Overview of the Bio-Networking Architecture
  • how bio concepts are used in the bio net
  • Bio-Networking Architecture Design
  • cyber-entity design
  • platform software design (partially implemented)
  • Preliminary Adaptation Simulation
  • Bio-Net Based Web Application
  • Summary

42
Design Node Architecture
Resource Cyber-entity
Other Cyber-entities
Resource negotiation Energy exchange
Resource configuration control
Resource access
Bio-Networking Platform Software
Virtual Machine (e.g. Java Virtual Machine)
Unmodified, commercial software
Heterogeneous OS Hardware
43
Design Platform Software
  • Platform software provides
  • cyber-entity execution environment
  • strict resource control
  • various system services for cyber-entities
  • Platform software can implement some of
    cyber-entity behaviors

44
  • Implementing functionality in platform software
    vs. implementing functionality in cyber-entity
    behaviors
  • platform software implementation
  • more secure
  • to reduce size of cyber-entities
  • implementation can be optimized
  • cyber-entity behavior implementation
  • easily changed and can evolve

45
Design Platform Software
Cyber-Entity Execution Environment
Cyber-Entity Context
Cyber-Entity Registry
Cyber-Entity LIfecycle
Registry Lookup
Group Membership
Social Networking
Migration
Cyber-Entity Commun.
Energy Management
Pheromone Emission
Security
46
Design Platform Software
  • Some components have been implemented

Cyber-Entity Execution Environment
Cyber-Entity Context
Cyber-Entity Registry
Cyber-Entity LIfecycle
Registry Lookup
Group Membership
Social Networking
Migration
Cyber-Entity Commun.
Energy Management
Pheromone Emission
Security
implemented
47
Demo, migration
48
Same age, do nothing.
Update agent file.
Update local file.
Demo, updating files
49
Outline
  • Motivation (Observation of Biological Systems)
  • Overview of the Bio-Networking Architecture
  • how bio concepts are used in the bio net
  • Bio-Networking Architecture Design
  • cyber-entity design
  • platform software design
  • Preliminary Adaptation Simulation
  • Bio-Net Based Web Application
  • Summary

50
Adaptation Simulation
  • Ability of cyber-entities to respond to changes
    in their local environment
  • Cyber-entity behaviors implemented
  • migration, replication, parameter mutation, death
  • Environment factors considered
  • ResourceCostFactor cost of living at current
    node - cost at a neighboring node
  • EnergySeekingFactor direction of energy sources
    (which adjacent node the request came from)
  • RepulsionFactor congregation of similar
    cyber-entities

51
Migration Behaviors
  • W1 ResourceCostFactor
  • W3 RepulsionFactor gt Aggressiveness
  • Resource Cost Minimizing Entity
  • migrate towards regions with lowest resource
    costs
  • avoid coexisting on a node with similar entity

52
Migration Behaviors
  • W1 ResourceCostFactor W2 EnergySeekingFactor
  • W3 RepulsionFactor gt Aggressiveness
  • Resource Cost Minimizing Entity
  • migrate towards regions with lowest resource
    costs
  • avoid coexisting on a node with similar entity
  • Energy Seeking Entity
  • migrate towards source of energy (user requesting
    service)
  • avoid coexisting on a node with similar entity

53
Replication Behavior
  • If current energy level gt aggressiveness
  • create a new entity of same type
  • mutate weight factors and aggressiveness value

54
Energy Seeking Entity (Simulation 1)
Entity 3 w1 .575, w2 .45, aggress 4.5
Entity 1 w1 .5, w2 .5, aggress 4
Entity 2 w1 .425, w2 .575, aggress 2.25
55
Resource Cost Minimizing Entity (Simulation 1)
Entity 1 w1 .5, w2 .5, aggress .25
Entity 3 w1 .6, w2 .55, aggress .75
Entity 2 w1 .55, w2 .45, aggress 0
Entity 4 w1 .5, w2 .5, aggress .1
56
Outline
  • Motivation (Observation of Biological Systems)
  • Overview of the Bio-Networking Architecture
  • how bio concepts are used in the bio net
  • Bio-Networking Architecture Design
  • cyber-entity design
  • platform software design
  • Preliminary Adaptation Simulation
  • Bio-Net Based Web Application
  • Summary

57
Bio-Net Based Web Caching/Replication System
  • Cyber-entities hold one or small set of web pages
  • User request for a web page is associated with a
    value
  • value of a web page request energy unit value
    in a service request in Bio-Net

58
  • Cache replacement algorithm in Bio-Net
  • market based (users can specify how important
    each web page is)
  • The amount of energy units received by a
    cyber-entity affects its behaviors (e.g.
    migration and reproduction)
  • Tracking of hit rates in Bio-Net
  • active thread of execution is associated with a
    web page (cyber-entity)

59
Users Indicate Value of Web request
BlueHat/prodA
BlueHat/prodA



BlueHat/prodA
FanClub/Zed

FanClub/Zed

user downloads software for business evaluation
user download newsletter for entertainment
- only slight value to user

- valuable to user
60
Effect of value on cache replacement algorithm
As disk and memory resources become scarce on the
Bio-Networking Platform, resource costs on the
node increase. This may cause the FanClub
cyber-entity to migrate away and make room for
other, possibly more valuable cyber-entities.
BlueHat/prodB
(distant) Bio-Networking Platform
BlueHat/prodA
FanClub/Zed
Bio-Networking Platform
user downloads software for business evaluation
user download newsletter for entertainment
- only slight value to user
- valuable to user

61
Effect of value on cache replacement algorithm
As disk and memory resources become scarce on the
Bio-Networking Platform, resource costs on the
node increase. This may cause the FanClub
cyber-entity to migrate away and make room for
other, possibly more valuable cyber-entities.
FanClub/Zed
(distant) Bio-Networking Platform
BlueHat/prodA
BlueHat/prodB
Bio-Networking Platform
user downloads software for business evaluation
user download newsletter for entertainment

- valuable to user

62
Thread of Execution Associated with Web Page
  • A web page (i.e., cyber-entity) has a thread of
    execution associated with it.
  • tracking page hits or access patterns
  • implementing dynamic content, scripts, etc
  • intellectual property protection/checking

63
Outline
  • Motivation (Observation of Biological Systems)
  • Overview of the Bio-Networking Architecture
  • how bio concepts are used in the bio net
  • Bio-Networking Architecture Design
  • cyber-entity design
  • platform software design
  • Preliminary Adaptation Simulation
  • Bio-Net Based Web Application
  • Summary

64
Summary and Conclusion
  • Bio-Networking Architecture represents a new
    paradigm in the construction of network services
    and applications
  • Services and applications consists of multiple,
    autonomous cyber-entities that exhibit emergent
    behavior
  • Bio-Networking is adaptable, evolvable, secure,
    survivable, scalable, and simple

65
Research Questions
  • What are the beneficial concepts and mechanisms
    from the biological world?
  • What is the relationship between individual
    behaviors and emergent behaviors?
  • What is the stability/adaptability tradeoff?
  • Can Bio-Networking Architecture evolve fast
    enough?
  • How secure and survivable is the Bio-Networking
    Architecture?
  • What is the performance and overheads of Social
    Networking?
Write a Comment
User Comments (0)
About PowerShow.com
