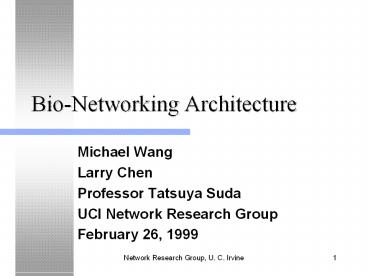

Bio-Networking Architecture

1
Bio-Networking Architecture

• Michael Wang
• Larry Chen
• Professor Tatsuya Suda
• UCI Network Research Group
• February 26, 1999

2
Outline of Talk

• Motivation and Overview of Bio-Networking
  Architecture
• Example application of Bio-Networking
  Architecture and its features
• adaptation and evolution
• security and survivability
• scalability and simplicity
• Bio-Networking Architecture implementation

3
Motivation

• Requirements for Future Network Services and
  Applications
• Adapt to heterogeneous and dynamic conditions
• Secure
• Survivable
• Scalable
• Easy to design and manage

4
Large Scale Biological Systems

• Example bee colony
• Key features
• Adapt to environment by direction action
• Evolve to more optimal forms
• Secure
• Survivable
• Scalable
• Relatively simple components (individual bees)
• Unifying concept emergent behavior

5
Bio-Networking Architecture

• Model the construction of network services and
  applications after biological systems
• A service or application is implemented by a
  distributed, collective entity called a
  super-entity
• A super-entity consists of multiple, autonomous
  entities called cyber-entities
• Cyber-entities have behaviors similar to
  biological entities
• migration, reproduction, mutation, protection,
  interaction

6
Bio-Networking Architecture
super-entity
Individual cyber-entities
7
Bio-Networking Architecture

• Two additional concepts
• Exchange of services for energy (food, money)
• Cyber-entities try to gain as much energy as
  possible, while expending as little as possible
• Cyber-entities can store energy
• Directory or service discovery capability called
  Social Networking
• Well suited for Bio-Networking Architecture
  because it can find mobile, replicated
  cyber-entities

8
Bio-Networking Architecture

• Social Networking
• Cyber-entities establish relationships with
  family and friend cyber-entities
• Cyber-entities with relationships inform each
  other of their super-entity membership and
  current network location
• When a cyber-entity wants to find a cyber-entity
  belonging to another super-entity (a web page or
  a service), it queries its family and friends
• If they dont have a relationship with a
  cyber-entity in the target super-entity, then
  they query their family and friends
• A set of desired cyber-entities may be returned
  from this procedure. The querying cyber-entity
  can determine which of the desired cyber-entities
  has the best response time.

9
Bio-Networking Architecture

• Social Networking Issues
• Overhead recursive querying of friends and
  family may cause large amounts of network traffic
• queries may be qualified by a maximum propagation
  count
• initial queries have low propagation count which
  is increased if previous queries did not find any
  desired cyber-entities
• Determinism social network may be partitioned so
  that one set of cyber-entities cannot find
  another set
• need simulation and analysis to determine
  probability of this scenario
• Security a cyber-entity can lie about who it has
  a relationship with
• the cyber-entity can compare multiple responses

10
Outline of Talk

• Motivation and Overview of the Bio-Networking
  Architecture
• Example application of the Bio-Networking
  Architecture and its features
• adaptation and evolution
• security and survivability
• scalability and simplicity
• Bio-Networking Architecture implementation

11
Example Super-Presence

• Super-Presence represents a person, organization,
  or concept in the network
• Super-Presence holds, disseminates, protects
• email address, web pages, files, preferences, etc
• Super-Presence is made up of cyber-entities which
  can
• migrate
• reproduce with mutations
• protect their bodies
• communicate and interact with other cyber-entities

12
Super-Presence
Distributor B
Factory
Corporate and RD Headquarters
Distributor A
Factory
13
Super-Presence
Distributor B
Factory
Corporate and RD Headquarters
Distributor A
Factory
14
Super-Presence
Distributor B
Factory
Corporate and RD Headquarters
Distributor A
Factory
15
Super-Presence
Distributor B
Factory
Corporate and RD Headquarters
Distributor A
Factory
16
Super-Presence Adaptation

• Super-Presence adapts its configuration in
  response to amount of user demand, location of
  user demand, and network resource constraints
• This is the emergent result of the
  cyber-entities migration and reproduction
  behaviors
• Administrators do not need to manually replicate
  or tune the Super-Presence

17
Super-Presence Evolution

• Algorithmic diversity can be automatically
  generated and introduced by the designers
• Cyber-entities with the most optimal algorithms
  live longer and reproduce more
• Evolution may produce localized results
• Designer is freed from having to set the optimal
  parameters in the new cyber-entities

18
Super-Presence Security

• Bio-Architecture based security is used in
  conjunction with traditional security techniques
  such as encryption and authentication
• Replication inherent in Bio-Networking
  Architecture gives us additional mechanisms
• Variable rate of state update
• Cyber-entities change state after random timeout
  period
• Consistency checking
• Cyber-entities periodically check each other for
  consistency

19
Security idea 1 Variable Rate of State Change

• Cyber-entities change their state only after
  random timeout

Authenticated (signed) Update Request
20
Security idea 2 Consistency Checking

• Cyber-entities periodically check each others
  state for consistency

Successful attack
21
Super-Presence Survivability

• Replication
• Emergence
• Wide distribution in the network
• Algorithmic diversity

22
Super-Presence Scalability

• In the Bio-Networking Architecture, there is no
  master entity, so control bottlenecks do not form
• Cyber-entities act autonomously, on a local
  basis, and using local information. This local
  interaction can be repeated as the cyber-entity
  population grows

23
Super-Presence Reduced Complexity

• Cyber-entity behaviors are relatively simple to
  design and implement. The complex behaviors
  emerge from collective behaviors and interactions
  of the cyber-entities
• Administration of Super-Presence is simplified
  because it adapts and evolves to heterogeneous
  and dynamic network conditions

24
Outline of Talk

• Motivation and Overview of the Bio-Networking
  Architecture
• Example application of the Bio-Networking
  Architecture and its features
• adaptation and evolution
• security and survivability
• scalability and simplicity
• Bio-Networking Architecture implementation

25
Implementation Node Architecture
Resource Cyber-entity
Other Cyber-entities
Resource negotiation Energy exchange
Resource configuration control
Resource access
Bio-Networking Platform Software
Virtual Machine (e.g. Java Virtual Machine)
Unmodified, commercial software
Heterogeneous OS Hardware
26
Implementation Platform Software

• Platform software provides
• Cyber-entity execution environment
• protects platform itself and cyber-entities from
  each other
• Strict resource control
• prevent denial of service through resource
  exhaustion
• promote natural selection process in
  Bio-Networking environment
• Migration and lifecycle facilities
• Communications facilities
• Energy management (prevent cheating by
  cyber-entities)

27
Implementation Platform Software

• Platform software can send a list of all
  cyber-entities residing on it to its neighbors.
  This is a form of pheromone emission and
  propagation.
• This allows a cyber-entity to know what other
  cyber-entities on neighboring nodes
• This information may be used to improve the
  performance of the social networking mechanism
• Presence of sibling cyber-entities nearby also
  affects other cyber-entity behaviors (e.g.
  migration, reproduction)

28
Implementation Platform Software

• Implementing functionality in platform software
  versus implementing functionality in cyber-entity
  behaviors
• Platform software can implement common
  functionality
• this reduces size of the cyber-entities
• platform software functionality can be optimized
• Platform software is more secure
• Implementing functionality as a cyber-entity
  behavior allows them to be easily changed and
  evolved

29
Implementation Cyber-entity
ID
Super-entity ID
Attributes
Type
Stored Energy
Age
Non-Executable Data
Body
Cyber-entity
Executable Code
Migration
Replication
Reproduction
Behavior
Protection
Service
Communication
Pheromone Emission
...
30
Implementation Behaviors

• A cyber-entity behavior can be implemented by a
  number of algorithms
• Each algorithm consists of several
• factors - small blocks of code
• parameters - variables
• Factors and parameters are automatically varied
  during replication and reproduction
• Human designers can introduce new algorithms,
  factors, or variables into the population at any
  time

31
Implementation Migration Behavior
One possible migration algorithm
calculate if more than 80 of requests coming
from a single direction

W2
calculate cost of migration
W1
gt M
If
then migrate
Factors which affect migration
W1, W2, and M are parameters
32
Implementation Reproduction

• Factors that affect reproduction behavior
• stored energy level
• current resource cost in the network
• availability of desirable mate
• reproductive aggressiveness

33
Implementation Crossover Mutation
cyber-entity A
child cyber-entity
Ownermwang
Behaviors abcde
Info xyz
Ownermwang
Behaviors abcde
Info xyz
child got behaviors a,b from parent A
behaviors c,d from parent B behavior e is a
mutation
Ownermwang
Behaviors abcde
cyber-entity B
Info xyz
34
Implementation Pheromone Emission

• Pheromones are emitted by biological entities for
  communication (e.g. marking a trail to food,
  readiness to mate, signify danger). Pheromones
  can be propagated, but decay with distance and
  time. Cyber-entities can also use this mechanism
  for establishing relationships in social
  networking, reproduction, etc.
• Factors of the pheromone emission behavior
• information contained in pheromone
• frequency and strength of pheromone emission

35
Implementation Increasing Diversity

• Human designers can introduce behavioral
  diversity into the cyber-entity population
• This will increase rate of adaptation and
  evolution
• This will also make the population more immune to
  specific attacks or failures

36
Implementation Deployment

• Bio-Networking Architecture can be deployed
  incrementally in todays IP networks
• Administrators load Bio-Networking Platform
  Software on various computers
• Bio-Networking nodes form a virtual network on
  top of IP network, similar to mbone
• Users can access Bio-Networking services and
  applications by download a Bio-Networking enabled
  applet into their conventional browsers

37
Research Questions

• What are the beneficial concepts and mechanisms
  from the biological world?
• What is the relationship between individual
  behaviors and emergent behaviors?
• What is the stability/adaptability tradeoff?
• Can Bio-Networking Architecture evolve fast
  enough?
• How secure and survivable is the Bio-Networking
  Architecture?
• What is the performance and overheads of Social
  Networking?

38
Related Work

• AI and robotics
• use a collection of simple intelligent components
  rather than building a monolithic complex
  intelligence
• Bio-Networking uses the same approach in the
  construction of network services and applications

• Artificial Life and Santa Fe Swarm project
• simulate biological processes and emergent
  behavior
• Bio-Networking applies lessons learned to network
  apps
• Network applications modeled after the immune
  system
• Bio-Networking provides a framework for applying
  the ideas developed in this area, e.g. mutation,
  diversity during reproduction

39
Related Work

• Intrusion detection systems
• detects intrusion based on signature or anomaly
• Bio-Networking detects intrusion based on
  inconsistency in state. Both approaches can be
  used as multiple layers of defense.
• Protection of Critical Information Infrastructure
• Presidential commission study saw need to protect
  information infrastructure
• Bio-Networking is trying to satisfy this new
  challenge
• Mobile agent systems
• Bio-Networking also consists of mobile agents,
  but they are governed by biological principles

40
Related Work

• Active Networks
• allows users to add new protocol behaviors in the
  network
• Bio-Networking allows users to add new
  application layer behaviors that can adapt and
  evolve based on usage
• Web caching
• web objects replicated to reduce server load
• Bio-Networking adds economic model for
  determining which objects are most valuable to
  cache, deals with updates better, and has
  inherent security features
• Jini (Sun Microsystems)
• ubiquitous model of computing based on Java
• Bio-Networking is less centralized and can adapt
  more

41

• Aphid A web caching (replication) service based
  on the Bio-Networking Architecture

Bio-Networking Platform w/ limited resources
BlueHat/prodA
BlueHat/prodB
Bio-Networking Platform with abundant (CPU,
memory, disk) resources (high-end server)
Bio-Networking Platform w/ limited resources
Bio-Networking Platform w/ limited resources
Bio-Networking Platform w/ limited resources
42

• Aphid A web caching (replication) service based
  on the Bio-Networking Architecture

BlueHat/prodB
Bio-Networking Platform w/ limited resources
BlueHat/prodA
BlueHat/prodB
Bio-Networking Platform with abundant (CPU,
memory, disk) resources (high-end server)
BlueHat/prodB
BlueHat/prodB
Bio-Networking Platform w/ limited resources
Bio-Networking Platform w/ limited resources
Bio-Networking Platform w/ limited resources
43

• Aphid A web caching (replication) service based
  on the Bio-Networking Architecture

BlueHat/prodB
Bio-Networking Platform w/ limited resources
BlueHat/prodA
BlueHat/prodB
BlueHat/prodC
Bio-Networking Platform with abundant (CPU,
memory, disk) resources (high-end server)
BlueHat/prodB
BlueHat/prodB
Bio-Networking Platform w/ limited resources
Bio-Networking Platform w/ limited resources
Bio-Networking Platform w/ limited resources
44

• Aphid A web caching (replication) service based
  on the Bio-Networking Architecture

BlueHat/prodB
Bio-Networking Platform w/ limited resources
BlueHat/prodA
BlueHat/prodB
BlueHat/prodC
Bio-Networking Platform with abundant (CPU,
memory, disk) resources (high-end server)
BlueHat/prodB
BlueHat/prodC
BlueHat/prodC
Bio-Networking Platform w/ limited resources
Bio-Networking Platform w/ limited resources
Bio-Networking Platform w/ limited resources
45

• Aphid A web caching (replication) service based
  on the Bio-Networking Architecture

46
Web Caching Squid

• client browsers are manually configured with
  address of proxy
• proxy caches web pages
• proxies can be manually configured to look for
  web pages in nearby proxies
• Difficult issues remain stale cache pages,
  dynamic content, tracking hits
• cache replacement algorithm(s) do not consider
  the value to a user (work related versus
  recreational info are cached equally)
• no inherent security or survivability features

47
Web Caching AWC

• easy migration path from Squid to Adaptive Web
  Caching (AWC), only proxies have to be modified
• proxies self-organize in a group and share their
  cache space to create a larger cache
• clients still manually configured to point at a
  proxy
• difficult issues of stale pages, dynamic content,
  tracking page hits are not resolved
• cache replacement algorithm does not consider
  value to the user
• no inherent security or survivability features

48
Web Caching Aphid (Bio-Net based)

• cyber-entities each hold a copy of a web page
• cyber-entities autonomously replicate, migrate,
  and die based on user demand
• clients find closest or least loaded cyber-entity
  using the social networking capability of the
  Bio-Networking Architecture
• update of the web page is propagated to all
  cyber-entities (solves the stale web page
  problem)
• because each cyber-entities is a thread of
  execution, it can generate dynamic content,
  e.g. mortgage calculator
• cyber-entities can track number of hits

49
Web Caching Aphid (Bio-Net based)

• cyber-entities receive energy units depending on
  the value of their web page, also expends energy
  depending on their size (cache replacement
  algorithm based on economic principles)
• cyber-entities have inherent security features,
  e.g. consistency checking
• cyber-entities have survivability features, e.g.
  there is no master copy of the web page

50
Web Caching Aphid (Bio-Net based)

• Limitations
• clients need to download plug-ins which implement
  social networking
• users/clients may need to indicate value of a
  web page request
• overhead of communications among cyber-entities
• cyber-entities do not have an algorithm to ensure
  globally synchronized, causal update of their
  content (this may not be a big problem for web
  pages)

51
Summary and Conclusion

• Bio-Networking Architecture represents a new
  paradigm in the construction of network services
  and applications
• Services and applications consists of multiple,
  autonomous cyber-entities that exhibit emergent
  behavior
• Bio-Networking Architecture is scalable,
  adaptable, evolvable, secure, survivable, and
  simple

52
More Information

• Bio-Networking Architecture web site
• http//netresearch.ics.uci.edu/bionet
• mwang_at_ics.uci.edu
• larryc_at_ics.uci.edu
• suda_at_ics.uci.edu

53

• Aphid A web caching (replication) service based
  on the Bio-Networking Architecture

Bio-Networking Platform
Bio-Networking Platform
A
B
C
Bio-Networking Platform
Bio-Networking Platform
Bio-Networking Platform
Bio-Networking Platform
Bio-Networking Platform
Bio-Networking Platform
