Title: New Particles in the Strange Charm System.


1

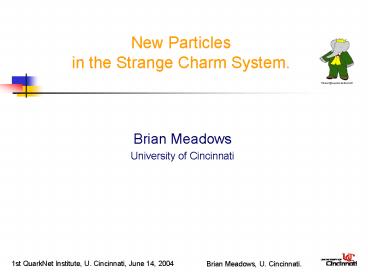

New Particlesin the Strange Charm System.
  • Brian Meadows
  • University of Cincinnati

2
Outline
  • Introduction to Particle Physics
  • Brief History
  • Forces of nature
  • Modern (standard model) view quarks, leptons
    and gauge bosons.
  • How are new particles found ?
  • The BABAR Experiment
  • The discovery of an new kind of particle?
  • DsJ ! Ds?0
  • What is Interesting about this?
  • Other new particles

3
A Brief History
  • Discovery of electron (Thompson)
  • Currant Bun model e-s spread uniformly
    through atomic volume?
  • Discovery of atomic nucleus (Rutherford). p is
    H nucleus.
  • Are there electrons in the nucleus as well as in
    the outer atom?
  • Quantum mechanics suggested this was not so.
  • Discovery of anti-electron, e (Anderson)
  • Discovery of the neutron, n (Chadwick, 1932)
  • Almost done? Just a few details and we
    understand how all 92 elements are built ??

4
A Brief History
  • Particle-wave duality -gt Gauge bosons
  • -gt Photons (?s) exist quanta of
    electromagnetic force.
  • -gt Yukawas meson (mass between me0.51 MeV and
    mp938 MeV) are quanta of nuclear force.
  • Discovery of ?
  • (V. Telegdi who ordered that!)
  • m 208 MeV, but no interaction with nuclear
    matter!
  • Yukawa meson, ? was found (also ?0, later)
  • Many more particles follow !!
  • A problem then arises! 92 elements but MANY more
    new particles!!

5
Forces of Nature
  • Particle physics is all about fundamental forces
  • Electromagnetic force
  • Holds atoms together (and apart!)
  • Stops us falling through the floor.
  • ! Long range / 1/r2
  • Gravity
  • Dominates on astrophysical scales.
  • Holds our feet ON the floor!
  • ! Long range / 1/r2

? photon
G graviton
6
Forces of Nature
  • Strong force
  • Holds protons (p) and neutrons (n) together in
    nuclei.
  • Holds quarks together inside neutrons, protons
    and all hadrons.
  • Contributes to hadron decays, e.g.
  • r ! pp-
  • ! Short range (nuclear diameter 10-15 m)
  • Weak force
  • Causes radioactive decay e.g.
  • n ! p e- ne
  • Not really weak but just rare.
  • ! Very short range ( 10-18 m).

g gluon
W, Z 0 vector bosons
7
The Force Scales
  • Particles that leave tracks either
  • are stable OR
  • decay by weak interaction

8
(No Transcript)
9
Quarks and Flavors
  • Just 6 quarks are building blocks for all
    strongly interacting particles (hadrons)
  • They come in two charges
  • u c t - charge 2/3 e
  • d s b - charge -1/3 e
  • Each has a unique flavor
  • Isospin u (I ½ ,I3 ½ ) d (I ½
    ,I3 ½ )
  • Strangeness s (S -1)
  • Charm c (C 1)
  • Beauty b (B 1)
  • Top t (T 1)
  • Baryon number (B) of each is 1/3.
  • Antiquarks have opposite charges, flavors and B.

10
Quarks and Hadrons
  • Hadrons are particles that feel the Strong Force.
  • Baryons - p, n, ?, ?, ?, ?, ?c,
  • Basic composition - 3 quarks
  • p uud, n udd, ? uus, p uud, etc.
  • Mesons - ?, K, D, Ds, B, ?, ?, ?, f, a,
  • Basic composition - quark-antiquark pairs
  • ? ud, ?- ud, K- su, D cd
  • Ds cs , B0 bd, etc.
  • Additional quark-antiquark pairs are not excluded.

11
Quarks and Decay Diagrams
  • Strong decay D ! D0 ?
  • Weak decay Ds ! K0 K

c
D0
c
u
All flavors conserved
D
u
?
s
K0
c
Flavors NOT Conserved (c ! s)
Ds
W
u
s
K
s
12
How to Find a New Particle
  • IF a) It is stable OR b) It decays by weak
    interaction
  • can observe it directly as a track in a set of
    detectors.
  • Its mass is the effective mass M of the decay
    products.
  • For example Ds ! K- K ?
  • of the indicated decay products.
  • (Note units are such that c1!)

13
How to Find a New Particle
  • IF it decays by Strong or EM forces
  • Its lifetime ? is too short for a track of
    visible length.
  • BUT its decay products (usually) do leave tracks.
  • Measure 4-momenta of decay products and compute
    their effective mass M as before to determine
    particles mass.
  • Uncertainty Principle relates lifetime (?) and
    the precision (?M) to which the particles mass
    can be determined.
  • ?M ? ¼ h (6 10-27 Jsec)
  • We expect a peak in the M distribution with
    width
  • ?M 100 MeV (Strong), 10 eV (EM), 0.01 eV for
    Weak decays.

14
  • The BaBar Detector
  • At Stanford Linear Accelerator Center
  • (SLAC)

15
The BaBar Detector at SLAC (PEP2)
  • Asymmetric ee- collisions at (4S).
  • ?? 0.56 (3.1 GeV e, 9.0 GeV e-)
  • Principal purpose study CPV in B decays

1.5 T superconducting field. Instrumented Flux
Return (IFR) Resistive Plate Chambers
(RPCs) Barrel 19 layers in 65 cm
steel Endcap 18 60 cm
16
Electromagnetic Calorimeter
  • CsI (doped with Tl) crystals
  • Arranged in 48(?) 120(?)
  • 2.5 gaps in ?.
  • Forward endcap with 8 more ? rings (820
    crystals).

g
g
?
BABAR
?
?0! gg
?0! gg
17
Particle ID - DIRC
  • Measures Cherenkov angle in 144 quartz bars
    arranged as a barrel.
  • Photons transported by internal reflection
  • Along the bars themselves.
  • Detected at end by 10,000 PMTs

Detector of Internally Reflected Cherenkov light
PMTs
18
Particle ID - DIRC
It Works Beautifully!
10 8 6 4 2 0
BABAR
K/? separation (?)
Provides excellent K/? separation over the whole
kinematic range
  • 2.5 3 3.5 4
  • Momentum (GeV/c)

19
Drift Chamber
dE/dx Resolution 7.5
Mean position Resolution 125 ?m
  • 40 layer small cell design
  • 7104 cells
  • He-Isobutane for low multiple scattering

20
Silicon Vertex Tracker (SVT)
  • 5 Layers double sided AC-coupled Silicon
  • Rad-hard readout IC (2 MRad replace 2005)
  • Low mass design
  • Stand alone tracking for slow particles
  • Point resolution ?z 20 ?m
  • Radius 32-140 mm

21
A Typical Event
? clusters
22
(No Transcript)
23
(No Transcript)
24
  • Surprising Discovery of New Particle

25
Data Selection
  • We looked for decays of well known particles
  • Ds ! K-K?
  • and
  • ?0 ! ??
  • The Ds decays are weak
  • So it leaves a track.
  • The ?0 decays are EM
  • So there is no track.
  • ?0s could come from
  • either end of the Ds track.

26
KK-? Effective Mass Spectrum
  • Effective mass for
  • Ds ! K-K?
  • Can also see another well known particle
  • D ! K-K?
  • Define signal and background (sideband) regions

27
The Ds?0 Effective Mass !!see PRL 90, 242001
(2003)
  • A striking signal observed in the Ds?0 system.
  • Signal clearly associated with both Ds and ?0
  • Is not a reflection of any other known state (MC)

Ds
D
Ds(2112) (known)
Ds(2112) (known)
?0
28
The Signal is Very Narrow
Ds(2112)
Fit to polynomial and a single Gaussian. N 1267
53 Events m 2316.8 0.4 GeV/c2 ? 8.6
0.4 MeV/c2 (errors statistical only).
Measurement Resolution curve.
? is compatible with detector resolution.
29
It Also Behaves Like a Particle ShouldCMS
Momentum (p) Dependence
  • Signal seen in all p ranges.
  • Background less significant at higher p values
  • Yield maximum at 3.9 GeV/c
  • Excitation curve appears to be compatible with
    charm fragmentation process.

30
Multiple Ds Modes
  • Separate Ds! K-K? into ?? and K0K
    subsamples
  • Ds(2112) and signal at 2.317 GeV/c2 present in
    both channels with roughly equal strength.

p gt 3.5 GeV/c
31
Search for Other DsJ(2317) Decay Modes
  • We also looked at effective mass spectra for
  • Ds ?0 ?0
  • Ds ?
  • Ds ? ?
  • Ds(2112) ?
  • Ds ?0 ?
  • In all cases, we required that
  • The ?s are not part of any ?0 candidate.
  • The combination has p gt 3.5 GeV/c.

None of these found
32
Ds?, Ds??, Ds(2112)?
  • No evidence for DsJ(2317) in any of these decays.
  • Absence of Ds? weakly suggests J 0
  • However other two modes would be expected for a
    JP 0.

33
Ds??0, Ds(2112)?0 - Other Possibilities
  • No evidence for DsJ (2317) either of these
    modes
  • BUT
  • There seems to be a second state at 2460 MeV/c2
    !

Events / 7 MeV/c2
Ds(2112)?0
A second, new state Ds(2460) ! Ds(2112)p0
m(Ds?0?)
34
What is Interesting About New Dss?
  • Ds mesons hitherto thought of as cs states.
  • Two problems for the new states
  • a) cs states have no isospin (I 0)
  • The p meson has I1 (triplet of charges).
  • p, p0, p-
  • So where does the isospin come from in the
    decay
  • Ds(2317) ! Ds p0 ??
  • b) Other problem has to do with the fact that
    this new state does not fit in with models of
    quark-antiquark mesons.
  • Some physicists think it may have an additional
    q-qbar pair!

35
Heavy-Light Quark Systems areLike the Hydrogen
Atom
  • c quark (Q) much heavier than s quark (q)
  • When mQ ! 1, sQ is fixed.
  • So jq L sq is separately conserved
  • Total spin J jq sQ
  • Ground state (L0) is doublet with jq1/2
  • Orbital excitations (Lgt0) two doublets
    (jql1/2 and jql-1/2).
  • Energy levels can be computed correctly
    predicts where at least 27 Qq and QQ particles
    are found to within 10 MeV.
  • The new Ds states have masses too low by 140 MeV
    !

36
Heavy-Light Systems (2)
2jqLJ
Width
JP
jq 3/2
2
3P2
small
large
1
1P1
L 1
1
3P1
small
jq 1/2
0
1P0
large
tensor
spin-orbit
jq 1/2
1-
1S1
small
L 0
small
0-
1S0
  • Narrow states are easy to find.
  • Two wide states are harder.
  • Since charm quark is not infinitely heavy, some
    jq1/2, 3/2 mixing can occur for the JP1
    states.

37
Charmed Meson Spectroscopy c. 1995
38
Charmed Meson Spectroscopy pre 2003
D0K threshold
D0K threshold
BABAR may have found these but below threshold.
39
We Seem to have Started Something!
  • Our competitor the BELLE experiment in Japan
    has seen a new, massive state
  • X(3872) ! J/? ??-
  • Again, its mass profile is narrow (width
    comparable to resolution).
  • Its existence has been confirmed in the CDF
    experiment at FNAL in proton-antiproton
    collisions at 1 TeV.
  • It is also seen in the BaBar experiment.
  • What is interesting
  • This lies just 100 MeV below D(2112) D
    threshold.
  • Ds (2317) lies just 40 MeV below DK threshold
  • Ds (2460) lies just 40 MeV below D(2112) K
    threshold

40
Yet Another New Narrow State!
BELLEs X
CDF Confirms X
  • BELLE m 3872.0 0.6 0.5 MeV/c2
  • CDF m 3871.4 0.7 (stat.) MeV/c2
  • ? compatible with resolution.

41
Unusual Baryons Also Being Seen
  • Various peaks have been reported in effective
    mass spectra of exotic systems such as
    strangeness S 1 baryons
  • (Cannot be three quark systems because s quark
    has strangeness S -1).
  • If confirmed, these signals could be regarded as
    pentaquarks three quark baryons with an
    additional quark-antiquark pair.

42
New, Narrow S 1 Baryon!
CLAS hep-ex/0307018
DIANA hep-ex/0304040
Spring-8 hep-ex/0301020 PRL 91 012002 (2003)
?d ! KK-pn
KXe ! K0pXe'
? n ! KK-n
MM(K)
  • CLAS m 1542 5 MeV/c2
  • DIANA m 1539 2 MeV/c2
  • Spring-8 m 1.54 .01 GeV/c2

? ¼ resolution
43
Conclusions
  • New, narrow (ie width consistent with mass
    resolution) states are being found after the
    discovery by BaBar of
  • DsJ(2317) ! Ds p0
  • The D_s states have masses inconsistent with
    spectroscopic models.
  • There is conjecture that mesons (and baryons)
    with additional quark-antiquark pairs may finally
    be seen.

44
Particle ID - DIRC
D0
D0
45
The Ds(2317) Appears !!see PRL 90, 242001 (2003)
  • When Antimo Palano plotted Ds?0 effective masses
    he found a huge, unexpected peak. A new
    particle!!

There is no signal from Ds sidebands. The (well
known) Ds(2112)! Ds?0 signal is clear too. How
did CLEO miss it?!
CLEO discarded All these events.
Write a Comment
User Comments (0)
About PowerShow.com
