Programming Parallel Algorithms NESL

1

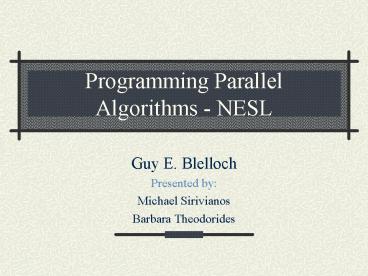

Programming Parallel Algorithms - NESL

• Guy E. Blelloch
• Presented by
• Michael Sirivianos
• Barbara Theodorides

2
Problem Statement

• Why design a new language specifically for
  programming parallel algorithms?
• In the past 20 years there has been tremendous
  progress in developing and analyzing parallel
  algorithms
• At that time less success in developing good
  languages for programming parallel algorithms
• There is a large gap between languages that are
  too low level (details that obscure the meaning
  of the algorithm) and languages that are too high
  level (making performance implications unclear)

3
NESL

• Nested Data Parallel Language
• Useful for teaching and implementing parallel
  algorithms.
• Bridges the gap allows high-level descriptions
  of parallel algorithms but also has a
  straightforward mapping onto a performance model.
• Goals when designing NESL
• A language-based performance model that uses work
  and depth rather than a machine-based model that
  uses running time
• Support for nested data-parallel constructs
  (ability to nest parallel calls)

4
Analyzing performance

• Processor-based models Performance is calculated
  in terms of the number of instruction cycles a
  computation takes (its running time) A
  function of input size and number of processors
• Virtual models Higher level models that can be
  mapped onto various real machines (e.g. PRAM -
  Parallel Random Access Machine)
• Can be mapped efficiently onto more realistic
  machines by simulating multiple processors of the
  PRAM on a single processor of a host machine.
  Virtual models easier to program.

5
Measuring performance Work Depth

• Work the total number of operations executed by
  a computation
• specifies the running time on a sequential
  processor
• Depth the longest chain of sequential
  dependencies in the computation.
• represents the best possible running time
  assuming an ideal machine with an unlimited
  number of processors
• Example Summing 16 numbers using a balanced
  binary tree

6
How can work depth be incorporated into a
computational model?

• Circuit model
• Designing a circuit of logic gates
• In previous example, design a circuit in which
  the inputs are at the top, each is an adder
  circuit, and each of the lines between adders is
  a bundle of wires.
• Work circuit size (number of gates)
• Depth longest path from an input to an output

7
How can work depth be incorporated into a
computational model? (cont)

• Vector Machine Models
• VRAM is a sequential RAM extended with a set of
  instructions that operate on vectors.
• Each location in memory contains a whole vector
• Vectors can vary in size during the computation
• Vector instructions include element wise
  operations (adding corresponding elements)
• Depth instructions executed by the machine
• Work sum of the lengths of the vectors

8
How can work depth be incorporated into a
computational model? (cont)

• Vector Machine Models Example
• Summation tree code
• Work O ( n n/2 ) O (n)
• Depth O (log n)

9
How can work depth be incorporated into a
computational model? (cont)

• Language-Based Models
• Specify the costs of the primitive instructions
  and a set of rules for composing costs across
  program expressions.
• Discuss the running time of the algorithms
  without introducing a specific machine model.
• Using work depth work depth costs are
  assigned to each function and scalar primitive of
  a language and rules are specified for combining
  parallel and sequential expressions.
• Roughly speaking, when executing a set of tasks
  in parallel
• work sum of work of the tasks
• depth maximum of the depth of the tasks

10
Why Work Depth?

• Work Depth used informally for many years to
  describe the performance of parallel algorithms
• easier to describe
• easier to think about
• easier to analyze algorithms in terms of work
  depth than in terms of running time and number of
  processors (processor-based model)
• Why models based on work depth are better than
  processor-based models for programming and
  analyzing parallel algorithms?
• Performance analysis is closely related to the
  code and code provides a clear abstraction of
  parallelism.

11
Why Work Depth? (cont)

• To support this claim they consider Quicksort.
• Sequential algorithm
• Average case run time O ( n log n ) , depth
  or recur. calls O ( log n )
• Parallel algorithm

12
Quicksort (cont.)

• Code and analysis based on a processor based
  model
• Code will have to specify how the sequence is
  partitioned across processor
• how the subselection is implemented in parallel
• how the recursive calls get partitioned among the
  processors.
• how the subcalls are synchronized
• In the case of Quicksort, this gets even more
  complicated. T
• The recursive calls are not of equal sizes.

13
Work Depth and running time

• Running time at the two limits
• Single processor. RT work
• Unlimited number of processors. RT depth
• We can place upper and lower bounds for a given
  number of processor.
• W/ P lt T lt W / P D
• valid under assumptions about communication and
  scheduling costs.
• e.g. given memory latency L
• W/ P lt T lt W / P LD
• Communication cost among processor is not unit
  time thus D is multiplied by a latency factor.
  Bandwidth is not taken into account. In case of
  significantly different bandwidth W should be
  divided by a large B factor and D by a small B
  factor.

14
Work Depth and running time (cont)

• Communication Bounds
• Work depth do not take into account
  communication costs
• latency time between making a remote request and
  receiving the reply
• bandwidth rate at which a processor can access
  memory
• Latency can be hidden.
• Each processor has multiple parallel tasks
  (threads) to execute and therefore has plenty to
  do while waiting for replies
• Bandwidth can not be hidden. While processor is
  waiting for data transfer to complete it is not
  able to perform other operations, and therefore
  remains idle.
• .

15
Nested Data-Parallelism and NESL

• Data-Parallelism the ability to operate in
  parallel over sets of data
• Data-Parallel Languages or Collection-Oriented
  Languages
• languages based on data-parallelism. Can be
  either flat or nested
• Importance of nested parallelism
• Used to implement nested loops and
  divide-and-conquer algorithms in parallel
• Existing languages, such as C, do not have direct
  support for such nesting!
• NESL
• Is a nested data-parallel language.
• Designed in order to express nested parallelism
  in a simple way with a minimum set of structures

16
NESL

• Supports data-parallelism by means of operations
  on sequences
• Apply-to-each construct which uses a set-like
  notation
• e.g. a a a in 3, -4, -9, 5
• Used over multiple sequences. a b a in
  3, -4, -9, 5 b in 1, 2, 3, 4
• Ability to subselect elements of a sequence
  based on a filter.
• e.g. a a a in 3, -4, -9, 5 a gt 0
• Any function may be applied to each element of a
  sequence
• e.g. factorial(i) i in 3, 1, 7
• Provides a set of functions on sequences, each
  of which can be implemented in parallel (sum,
  reverse, write)
• e.g. write(0, 0, 0, 0, 0, 0, 0, 0,
  (4,-2),(2,5),(5,9))
• Nested parallelism allow sequences to be nested
  and allow parallel funcitons to be used in an
  apply-to-each.
• e.g. sum(a) a in 2,3, 8,3,9, 7

17
The performance Model

• Defines Work Depth in terms of the work and
  depth of the primitive operations, and Rules for
  composing the measures across expressions.
• In most cases W(e1 e2) 1 W(e1) W(e2),
  where ei expresions
• A similar rule is used for the depth.
• Rules
• apply-to-each expression
• if expression

18
The performance Model (cont)

• Example Factorial
• Concider the evaluation of the expression
• e factorial(n) n in a where a 3, 1, 5,
  2.
• function factorial(n)
• if (n 1) then 1
• else nfactorial(n-1)
• Using the rules for work and depth
• where W , W, W- have cost 1.
• The two unit constants come form the cost of the
  function call and the if-then-else statement.

19
Examples of Parallel Algorithms in NESL

• Principles
• An important aspect of developing a good parallel
  algorithm is designing one whose work is close to
  the time for a good sequential algorithm that
  solves the same problem.
• Work-efficient Parallel algorithms are referred
  to as work-efficient relative to a sequential
  algorithm if their work is within a constant
  factor of the time of the sequential algorithm.

20
Examples of Parallel Algorithms in NESL (cont)

• Primes
• Sieve of Eratosthenes
• 1 procedure PRIMES(n)
• 2 let A be an array of length n
• 3 set all but the first element of A to TRUE
• 4 for i from 2 to sqrt(n)
• 5 begin
• 6 if Ai is TRUE
• 7 then set all multiples of i up to n to
  FALSE
• 8 end
• Line 7 is implementing by looping over the
  multiples, thus the algorithm takes O (n log log
  n) time.

21
Examples of Parallel Algorithms in NESL (cont)

• Primes (parallelized)
• Parallelize the line set all multiples of i up
  to n to FALSE
• multiples of a value i can be generated in
  parallel by 2ini
• and can be written into the array A in
  parallel with the write function
• The depth of this algorithm is O (sqrt(n)), since
  each iteration of the loop has constant depth and
  there are sqrt(n) iterations.
• The number of multiples is the same as the time
  of the sequential version.
• Since it does the same number of operations,
  work is the same O (n log log n).

22
Examples of Parallel Algorithms in NESL (cont)

• Primes Improving depth
• If we are given all the primes form 2 up to
  sqrt(n), we could then generate
• all the multiples of these primes at once
  2pnp in sqr_primes
• function primes (n)
• if n 2 then ( int )
• else
• let sqr_primes primes( isqrt(n) )
• composites 2pnp p in sqr_primes
• flat_comps flatten (composites)
• flags write(dist(true, n), (i,false)
  i in flat_comps)
• indices i in 0n fl in flags fl

• in drop(indices, 2)

23
Examples of Parallel Algorithms in NESL (cont)

• Primes Improving depth
• Analyze of Work Depth
• Work clearly most of the work is done at the top
  level of recursion, which does O (n log log n)
  work, and therefore the total work is
• O (n log log n)
• Depth since each recursion level has constant
  depth, the total depth is proportional to the
  number of levels. The number of levels is log log
  n (the size of the problem at the ith level is
  n1/2d gt d log log n) and therefore the depth
  is O (log log n)
• This algorithm remains work-efficient and greatly
  improves the depth.

24
Examples of Parallel Algorithms in NESL (cont)

• Sparce Matrix Multiplication
• Sparce matices most elements are zero
• Representation in NESL
• 2.0 -1.0 0 0
  A (0, 2.0), (1, -1.0),
• A -1.0 2.0 -1.0 0
  (0, -1.0), (1, 2.0), (2, -1.0),
• 0 -1.0 2.0 -1.0
  (1, -1.0), (2, 2.0), (3, -1.0),
• 0 0 -1.0 2.0
  (2, -1.0), (3, 2.0)
• E.g. multiply a sparce matrix A with a dense
  vector x.
• The dot product Ax in NESL is sum(v xi
  (i,v) in row) row in A
• Let n be the number of nonzero elements in the
  row, then
• depth of the computation the depth of the
  sum O ( log n )
• work sum of the work across the elements
  O (n)

25
Examples of Parallel Algorithms in NESL (cont)

• Planar Convex Hull
• Problem Given n points in the plane, find which
  of them lie on the perimeter of the smallest
  convex region that contains all points.
• An example of nested parallelism for
  divide-and-conquer algorithms.
• Quickhull algorithm (similar to Quicksort)
• The strategy is to pick a pivot element, split
  the data based on the pivot, and recurse on each
  of the split sets.
• Worst case performance is O (n2) and the worst
  case depth is O (n).

26
Examples of Parallel Algorithms in NESL (cont)

• hsplit(set,A,P) hsplit(set,P,A)
• cross product (p, (A,P))
• pm farthest from line A-P
• Recursively hsplit(set,A,pm)
• hsplit(set,pm,P)
• Ignores elements below the line

27
Examples of Parallel Algorithms in NESL (cont)

• Performance analysis of Quickhull
• Each recursive call has constant depth and O(n)
  work.
• However, since many points might be deleted on
  each step, the work could be significantly less.
• As in Quicksort, worst case performance is O (n2)
  and the worst case depth is O (n).
• For m hull points the best case times are O (n)
  work and O( log m ) depth.

28
Summary

• They formalize a clear-cut formal language-based
  model for analyzing performance
• Work depth based model is directly defined
  through a programming language, rather than a
  specific machine
• It can be applied to various classes of machines
  using mappings that count for number of
  processors, processing and communication costs.
• NESL allows simple description of parallel
  algorithms and makes use of data parallel
  constructs and the ability to nest such
  constructs..

29
Summary

• NESL hides the CPU/Memory allocation, and
  inter-processor communication details by
  providing an abstraction of parallelism.
• The current NESL implementation is based on an
  intermediate language (VCODE )and a library of
  low level vector routines (CVL)
• For more information on how NESL compiler is
  implemented
• Implementation of a Portable Nested
  Data-Parallel Language Guy E. Blelloch,
  Siddhartha Chatterjee, Jonathan C. Hardwick, Jay
  Sipelstein, and Marco Zagha.
•

30
Discussion

• Parallel Processing - Sensor Network Analogy
• Local processing -gt Aggregation. Work
  corresponds to total aggregation cost.
• Moving levels up -gt Collecting aggregated
  results from children nodes.
• Depth-gtDepth of routing tree in sensor network.
  Implies communication cost.
• Latency-gtCost to transmit data between motes.
• In parallel computation the goal is to reduce
  execution time.
• Sensor networks aim to reduce power consumption
  by minimizing communications. Execution time is
  also an issue when real time requirements are
  imposed.

31
Discussion

• NESL and TAG queries?
• Can latency be hidden by assigning multiple tasks
  to motes?
• Can you perform different operations on an
  array's elements in parallel? Is it hard to add
  one more parallelism mechanism besides
  apply-to-each and parallel functions?
