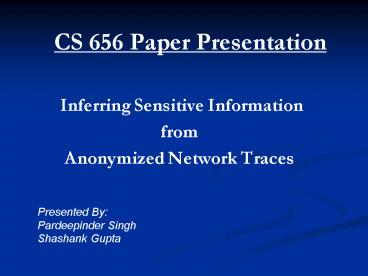

CS 656 Paper Presentation

1
CS 656 Paper Presentation

• Inferring Sensitive Information
• from
• Anonymized Network Traces

Presented By Pardeepinder Singh Shashank
Gupta
2
Why anonymize network data?

• Networking Research requires trace and log data
  to be publically available for verification and
  comparison of results.
• Publically available network data is vulnerable
  to attacks which compromise privacy of end users
  and security of networks.
• Anonymization is required to share network data.

3
Goals of network trace anonymization?

• Goals of anonymization are to prevent
• User audit trails
• Mappings of supported network services
• Leakage of security practices of the network.
• Provide balance between data utility and data
  privacy

4
How to anonymize network data?

• Destruction Outright removal from the
  dataset
• Fixed Transformation Single pseudonym value for
  all values of the field
• Variable Transformation Different pseudonym
  values based on the context of the field.
• Typed Transformation Single pseudonym value for
  each distinct value of the original field.

5
Anonymized Network Data Requirements

• Pseudonym Consistency Requirement The addressed
  provided within the trace data be consistently
  anonymized.
• Header Requirement Header information remains
  intact.
• Transport Protocol Requirement Records
  corresponding to transport layer traffic must be
  present.
• Port Number Assumption Ability to map port
  numbers to services.

6
Summary of Anonymization Techniques
Source S. E. Coull et al., "Playing Devil's
Advocate Inferring Sensitive Information from
Anonymized Network Traces," Proceedings of the
2007 Network and Distributed System Security
Symposium, San Diego, California, February 2007.
7
Primitives

• Heavy Hitters
• Dominant State Analysis
• Subnet Clustering
• Each connection c? C is described by a feature
  vector ltc1, c2, ckgt. In the paper k4 and
  features are c1source IP address, c2
  destination IP address, c3source port number and
  c4destination port number

8
Heavy Hitters
Normalized Entropy Zero indicates highly
peaked distribution for that attribute. One
indicates uniform distribution.
9
Finding Heavy-Hitters

• Iteratively remove very frequent values from the
  distribution.
• Re compute the normalized entropy until the
  distribution becomes sufficiently uniform,
  bringing the normalized entropy above a given
  threshold tH.

10
Finding Heavy-Hitters
Source S. E. Coull et al., "Playing Devil's
Advocate Inferring Sensitive Information from
Anonymized Network Traces," Proceedings of the
2007 Network and Distributed System Security
Symposium, San Diego, California, February 2007.
11
Dominant State Analysis

• Used for determining the characteristic behaviors
  for a given host .
• Apply on Heavy Hitters to create a behavioral
  profile for each.
• Steps
• For each heavy-hitter address x begin with a
  simple behavioral profile src addressx.
• C1 is the source IP address of connection c.
  Denote set of connections with c1x as Cx.

12
Dominant State Analysis

• For each heavy-hitter address x begin with a
  simple behavioral profile src addressx.
• c1 is the source IP address of connection c.
  Denote set of connections with c1x as Cx.
• Reorder the remaining features i increasing order
  of normalized entropy.
• For each feature in the set of connections,
  Cxi2..4 look for value of ci whose conditional
  probability with the current profile exceeds our
  threshold t. Append the value to the profile
  vector.

13
Dominant State Analysis

• Extend the profiles iteratively until no value
  meeting our threshold can be found, or all
  features have been examined.
• Output of DSA for each heavy-hitter IP address
  is a set of feature vectors describing its
  behavioral profiles.
• Repeat the same process using destination IP
  addresses, after finishing for source IP
  addresses.

14
Dominant State Analysis
Source S. E. Coull et al., "Playing Devil's
Advocate Inferring Sensitive Information from
Anonymized Network Traces," Proceedings of the
2007 Network and Distributed System Security
Symposium, San Diego, California, February 2007.
15
Subnet Clustering How to determine subnets?
Naïve solution Look for grouping of contiguous
addresses separated by large gaps. Authors use
k-means clustering algorithm on the set of IP
addresses present within the network data to find
the subnets.
16
k-means algorithm
The k-means algorithm is an algorithm to cluster
n objects based on attributes into k partitions,
k lt n. The objective it tries to achieve is to
minimize total intra-cluster variance, or, the
squared error function where there are k
clusters Si, i 1, 2, ..., k, and µi is the
centroid or mean point of all the points xj ?
Si.
17
k-means algorithm

Source http//en.wikipedia.org/wiki/K-means_algor
ithm
18
Subnet Clustering usign k-means

• Treat IP addresses as 4-dimensional vectors.
• Each element of the vector corresponds to one
  octet of the IP address.
• Determine cluster membership using modified
  Euclidean distance with bitwise exclusive-OR.
• Dimensions corresponding to the octets are
  exponentially weighted. Weighting ensures that
  hierarchical nature of subnetting is preserved.

19
Subnet Clustering using k-means

• K-means clustering requires number of clusters to
  be specified a priori. We dont have this info!
• Divide each octet dimension into m blocks.
• Place initial centriods at the boundaries of
  these partitions.
• Iteratively recompute centriod and corresponding
  cluster membership, till the membership of
  clusters reaches a steady state.
• Iterative refinement of clusters ensures that the
  addresses within a given cluster all reside in
  the same subnet without requiring exact identical
  centriod placement.

20
Active Attacks
Active probing attacks Insert unique values
into anonymized network data, observe the
transformations and deduce.
21
Passive Attacks

• Pseudonym Consistency Requirement allows tracking
  of behavior over a period of time.
• Using the current generation of network data
  gathering tools large amount of data passing
  through the Internet can be calculated over a
  period of time.
• The authors launches two passive attacks on the
  anonymized network data to perform passive
  reconnaissance of the network
• Recovering Network Topology
• Inferring Host Behavior

22
Recovering Network Topology

• Determine locations within the network where each
  of the traces were captured (Observation Points).
• Identify the routers at each observation point.
• Infer connectivity among routers.

23
Determining Observation Points

• Identify the network subnets which are present in
  the local area network where the trace was
  recorded.
• Two traces that share at least one subnet are
  considered to be coming from the same observation
  point.
• Find subnets by performing subnet clustering on
  IP addresses.
• (two cases ARP traffic present, not present)

24
Identifying Routing Devices
Check for hardware addresses that appear to have
multiple IP addresses associated with them over
some period of time. (Period of time should be
less than a typical DHCP lease) Infer the routes
taken by the observed traffic by applying subnet
clustering to the source and designation
addresses of TCP and UDP traffic that transits
the routers.
25
Reconstruct the network topology

• Represent each router as a vertex.
• Add edges when the hardware address for router is
  associated with some other discovered routing
  device.
• Superimpose routes using hardware addresses to
  characterize the actual routes taken by the
  network traffic.

26
Inferring Host Behavior

• Obtain heavy hitters using Algorithm 1.
• Apply dominant state analysis on heavy-hitters
  to create behavioral profiles.
• Gather public information about publishing
  organization (using DNS or web searching
  queries).
• Match public information to behavioral profiles
  created using dominant state analysis.

27
Example

• This illustrate the application of the
  aforementioned techniques on an anonymized trace
  from the Johns Hopkins University (JHU) network.
• The topology inference technique indeed finds a
  single observation point with subnets of
  128220231024 and 128220116026.
• The inference technique also finds one router and
  one gateway that are directly connected to one
  another, with the departmental network behind the
  router.
• Deanonymization of the web servers within the
  departmental network. We must first create an
  estimate of the behavioral profile for the heavy
  hitters.
• Example behavioral profiles for three
  heavy-hitters, found via Algorithm 1, in the
  departments network.

28
Matching Public Information to Profiles

• Apply queries to behavioral profiles to
  deanonymize heavy hitters.
• Authors use Alexa.com to find popularity of web
  servers.

Anonymized Address
Real Address (Hostname)
128.220.231.207 128.220.231.50 128.220.231.168
128.220.231.121
0.93 0.93 0.87
0.85
128.220.247.60 (simnet1) 128.220.247.203
(skdnssec) 128.220.247.5 (spar) -
29
Evaluation

• Techniques were evaluated on network traces for
  three distinct networks.
• Both NetFlow and packet trace data were used for
  validation.
• The anonymization approach suggested by Pang et
  al. was used to anonymize network data.

30

• Annonymized trace data include link , network and
  transport layer header.
• Payload data is deleted and fields are
  annonymised.
• Pang et al. also remove the packets generated by
  routers and certain security devices to prevent
  their discovery.
• Pang et al. also provides meta data to ensure
  sound measurement practices.

31
NetFlow

• NetFlow data was obtained from CERT containing
  logs of Two-distinct /24 networks taken over four
  hours on a single day.
• Reference to Routers and Network security devices
  was explicitly removed.
• All the information about connections(C) , the
  heavy hitter hosts , topology information and
  their behavioral profiles was dumped into the
  Rational database for fast and easy querying.

32
Infer Network Topology - LBNL

• Techniques described before found 29 distinct
  observation points with total of 31 associated
  enterprise subnets.
• Subnets found through subnet Clustering Technique
  agreed with those provided in Meta-Data.
• With Exception of one subnet whose size was
  over-estimated , thereby providing 96 accuracy.

33
Deanonymization

• Deanonymization of HTTP server for thr Bro IDS
  Project and other servers within its subnet.
• Why choose these ?
• Public information about these servers is readily
  available.

34
Steps in Deanonymization

• Query DNS records for the addresses of the Bro
  web server(www.bro-ids.org) and related hosts.
• Results showed that www.bro-ids.org resides in
  the same subnet as the ee.lbl.gov domain which
  includes SMTP,HTTP, and FTP services on
  ee.lbl.gov and HTTP services on ita.ee.lbl.gov.
• Knowledge of these services was gleaned only from
  Google and Alexa searches.

35

• By inferring subnet size from addresses provided
  by DNS records
• Set of possible subnets within the trace data is
  reduced to ten/22 subnets.
• If we consider that target subnet contains at
  least 3 heavy-hitter web servers there are
  six subnets which match this criteria.
• Noting that ee.lbl.gov server provides SMTP,HTTP,
  and FTP services , only two servers are left.

36

• So Combining subnet size, unique services offered
  ee.lbl.gov and specific mix of HTTP servers give
  us the actual server in the anonymized trace.
• By inspecting Google results for the ee.lbl.gov.
  It was suspected that it might be froggy.lbl.gov.
• Because it features a CGI web application which
  generates short bursts of HTTP connections as a
  function of CGI usage.

37
Sample Deanonymization results

• These are only suppositions as there is no ground
  truth available.

38
ResultsOverall Deanonymization
Source S. E. Coull et al., "Playing Devil's
Advocate Inferring Sensitive Information from
Anonymized Network Traces," Proceedings of the
2007 Network and Distributed System Security
Symposium, San Diego, California, February 2007.
39
Success/Failure

• These results according to them indicate that
  behavioral profiling is a plausible method for
  deanonymizing a variety of network traces.
• Success rate ranged from 66 to 100 for
  significant SMTP servers.
• And 28.6 to 50 for the significant HTTP servers
  in the subnets they examined.

40

• In addition to deanonymizing select hosts , the
  type of traffic present in various observation
  points can be characterized.
• The following table provides deeper insight into
  the presence of important servers.

41
Mitigation Strategies

• Creation of network topology maps can be
  prevented by
• Publishing only anonymized NetFlow logs.
• Remove link layer headers from packet traces.
• Exclude ARP traffic to make discovery of link
  layer topology information difficult.
• Remap port numbers to hinder ability to directly
  infer services offered and make creation of
  behavioral profiles more difficult.
• Remove hosts with unique behavior to make
  behavior profiling tougher.

42
Mitigation Strategies

• Hide the true identity of the publishing
  organization to make information gathering to
  mount attack tougher. Security by obscurity not
  a good idea.
• Non Technical ways
• Legislation
• Data remains on secure servers with access only
  to researchers.
• No third party access.
• Inefficient, Violations difficult to detect. But
  may provide (regrettably though) better privacy
  than offered by present
• anonymization methodologies.
• Balance needs to be maintained between the two
  conflicting requirements Utility and Privacy of
  released network data.

43
Conclusion

• This paper shows that even the anonymized data
  can be compromised but they are not able to give
  any solid example to prove that.
• Moreover in order to anonymize the data they have
  put lot of constraints on the annonymized data
  which might not be feasible to that extent in
  real world.
• It is still not clear that to what extent privacy
  of clients is threatened.

44
Future Work

• As a part of future work they tend to explore a
  formal framework for examining this Question.
• And for expressing the privacy properties of
  anonymization techniques in general.

45
Questions?
46
Thank You
