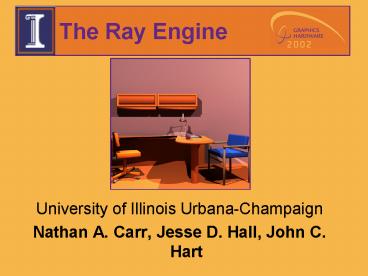

The Ray Engine

1
The Ray Engine

• University of Illinois Urbana-Champaign
• Nathan A. Carr, Jesse D. Hall, John C. Hart

2
The Programmable GPU

• Programmability is the future of Graphics
  Hardware
• Many problems can be solved using Graphics
  Hardware.
• Emerging Research Question
• What role does the CPU play?
• What role does the GPU play?

3
Why use the GPU?

• Is it faster? Does it scale?

Deep Pipeline
Process vertex
rasterize
Process fragment
Widen Pipeline
4
The Ray Engine
5
Ray Engine Models

• Existing Hardware Approach
• DirectX pixel shader 1.4
• Low precision 16 bit fixed point
• 5D ray-space partitioning data structure
• Future Hardware Approach via Simulation
• DirectX 9.0, OpenGL 2.0, Radeon 9700
• High precision 32 bit floating point
• Octree acceleration data structure

6
Partitioning the Problem Domain

• Assume a SIMD model of computation for the GPU
• Let the CPU do what it does best
• Complex Branching
• Sorting ( traversal, batching of coherent items )
• Synchronous execution paths
• Let the GPU do what it does best
• SIMD computation ( intersection, shading )
• Parallel execution paths
• Keep both the GPU and CPU busy
• Avoid one stalling the other

7
The Programmable Shading Crossbar

• Ray Intersection as a Crossbar
• Programmable Pixel Shading as a Crossbar

8
SIMD GPU model
Single Instruction Multiple Data

• Texture Maps are arrays of data elements
• Fragment Program is an instruction
• Frame buffer holds the result of the SIMD
  operation

m
Fragment Program
n
m
n
m
n
Frame Buffer (Result)
Screen Filling Quadrilateral
Texture Maps (Multiple Data)
Fragment Program (Single Instruction)
9
Ray Engine Core

• Performs all pairs (N x M) ray-triangle
  intersections

N rays to be queried
M triangles to be queried
RAY ENGINE CORE
hitRecords?gpuRayEngine(rays,triangles)

• N hit results
• Which triangle hit first (if any)
• Hit location ( barycentric coords )

10
Ray Engine Core
normal
D
O
edge0
edge1
TEXTURES
GEOMETRY
normal edge0 edge1 vertex ID ( color)
Ray Origins
Ray Directions
Fragment Shader Program
Hit Location Triangle ID
Distance Along Ray that Triangle was hit
Frame Buffer
Z-Buffer
11
Whats the Pay-Off

• Same computation can be done on the CPU
• Use partitioning scheme (BSP tree, Octree,
  Bounding Volumes)

hitRecords?cpuRayEngine(rays,triangles)
12
Finding N and M

• Answer depends on the scene, speed of GPU, and
  speed of CPU.
• Solution
• Use GPU processing only when we can collect N
  rays that need to be intersected with M
  triangles. For some N and M, where is is faster
  to do GPU processing.
• Use CPU processing in all other case
• Find ideal N and M experimentally.

13
Octree Granularity
Example Choose M 10, N2
2
4
2
5
3
0
3
5
5
2
2
0
3
1
4
4
14
CPU/GPU parallelism

• Both the CPU and GPU can be performing triangle
  intersection tests at the same time.
• Note A similar model may be taken to handle
  shading, where the GPU and CPU work together, but
  at different levels of granularity.

15
Results

16
Conclusions

• The GPU can be used to as a co-processor to
  accelerate ray-casting and visibility queries.
  8 - 52 speedup.
• Performance improvements can be achieved by
  interleaving and overlapping CPU and GPU
  computation.
• Asymmetric AGP bus transfer speeds greatly
  inhibit the ability of the GPU and CPU to work in
  cooperation.

17
Future Work..

• More careful tuning of the CPU portion of the
  Ray-Engine.
• Run the Ray Engine on Real Hardware
• Test alternate schemes to speed up CPU
  ray-traversal process
• Implement SIMD GPU shading engine to work in
  cooperation with the Ray Engine
• Explore better methods for interleaving CPU and
  GPU computation.
• Asynchronous readback semantics

18
CommentsQuestions?

• Thanks to
• NSF for project funding
• Nvidia, Matthew Papakipos
• Michael McCool

19
Fragment Shader Example in OGL 2.0

• void main(void)
• uniform vec3 vert0, vert1, vert2
• vec3 origin, direction, edge1,edge2, tvec, pvec,
  qvec, vec3 bary
• float det
• origin texture( 0 , coords)
• direction texture( 1 , coords)
• edge1 vert1 - vert0
• edge2 vert2 - vert0
• pvec cross( dir, edge2)
• det dot( edge1, pvec )
• if( det gt -EPSILON det lt EPLISON )
• kill(0)
• float invDet 1.0f / det
• tvec origin - vert0
• bary.x dot(tvec, pvec) invDet
• if( bary.xlt0.0 bary.xgt1.0 )
• kill(0)
• qvec cross( tvec, edge1 )
• bary.y dot( direction, qvec) invDet

Look up ray origin and direction from textures
Kill the pixel if the ray does not hit the
triangle
Writing triangle ID and where the triangle was
hit to the fragment color
Writing the distance along the ray the triangle
was hit to z-buffer
