Title: CMPE 257: Wireless and Mobile Networking


1

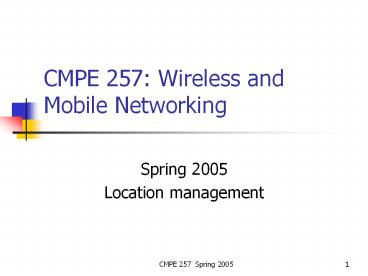

CMPE 257 Wireless and Mobile Networking
  • Spring 2005
  • Location management

2
Announcements
  • Homework 2 due tomorrow by midnight.
  • Stay tuned for homework 3.
  • Class evaluations on Tuesday, 05.31.
  • Need campus volunteer.
  • Final exam on Thu, June 2.
  • In class, closed books/notes.
  • Project presentations on June 9th, 4-7pm.

3
Today
  • Finish reliable multipoint e2e.
  • Location management.

4
Location Management
5
Why is location management needed?
  • In wired networks, hosts dont move.
  • Constant association between host (id, address)
    and its location.
  • In mobile wireless networks, hosts can move.
  • Host id/address no longer provides location
    information.
  • Need location tracking mechanism to deliver
    information destined to host.

6
Location for the Active Office Ward97
  • Indoor sensor system that tracks location of
    people (active badge), equipment (equipment
    tags), etc.
  • Requirements accurate (within 15cm), 3
    dimensions, scalable (number of objects
    locatable, area covered), cost.
  • RF communication.

7
System components
  • Transmitters attached to every locatable object.
  • Matrix of receiver elements in all rooms where
    objects are to be tracked.
  • Controller which polls one mobile object at a
    time.

8
Operation
  • Periodically, mobile node is polled.
  • Polled mobile broadcasts signal.
  • Controller synchronizes receivers, who listen for
    some time to detect the peak of mobiles
    transmission.
  • Controller polls receivers for the measured time
    interval between the sync signal and the signal
    peak (if any).

9
Distance computation
  • Time measured by receiver composed of time to
    transmit the polling signal (from controller to
    mobile)time to transmit pulse (function of
    distance being calculated)processing time.
  • Distance between mobile and receiver calculated.
  • Empirically computed speed of sound in the room
    and service times.

10
Position calculation
  • Triangulation using 4 receivers to determine a
    point in 3 dimensional space as estimate of
    position.
  • In this particular set up, since all receivers
    are in the ceiling, only 3 distances required.
  • Extra reported distances can be used for higher
    accuracy.

11
Evaluation
  • Experiments with prototype show 95 of readings
    within 14cm accuracy. Even better accuracy for
    averaged readings.
  • Addresses limit number of trackable objects.
  • Large number of receivers and ultrasound nature
    of transmission from mobile proved to pay off
    regarding accuracy.
  • Power savings mode minimizes maintenance.
  • Low interference levels from office equipment.

12
Testbed
  • Single floor (10500 sq. ft.) with 50 rooms.
  • 3 base stations covering entire floor.
  • Lucent WaveLAN RF technology.
  • 2 Mbps.
  • 1-2 ms one-way delay.
  • 200m and 25m range (open/close environments).

13
RADAR Bahl et al.
  • Similar to the Ward97 paper.
  • Provide indoor location service.
  • RF.
  • Use received signal strength triangulation.
  • Low cost.
  • Off-the-shelf hardware.

14
Testbed
  • Single floor (10500 sq. ft.) with 50 rooms.
  • 3 base stations covering entire floor.
  • Lucent WaveLAN RF technology.
  • 2 Mbps.
  • 1-2 ms one-way delay.
  • 200m and 25m range (open/close environments).

15
Operation
  • Off-line and real-time functions.
  • Off-line derive and validate accurate signal
    propagation models.
  • Real-time user location.

16
What is being collected?
  • Signal strength (in dBm).
  • s (Watts) 10log10(s/.001) (dBm)
  • Signal-to-noise ratio (SNR) (in dB).
  • SNR (dB) 10log 10 (s/n) (dB).
  • For each received packet, SS and SNR are
    recorded.

17
Data collection process
  • Mobile broadcasts beacons periodically.
  • Base stations record SS and SNR.
  • Different than the ORL system.
  • Scalability?
  • Path asymmetry.

18
More on data collection
  • All clocks synchronized.
  • Mobile broadcasts packets (4 pkt/sec).
  • BS records (t, bs, ss).
  • Off-line mobile also provides its location by
    using a floor map.
  • Orientation is important (LoS, obstruction,
    etc.).
  • In off-line phase, collected SS in all 4
    directions at 70 different floor locations.
  • For each (x, y, d), 20 ss samples.
  • d is direction N, S, E, W.

19
Processing data
  • Off-line data used to build signal propagation
    model.
  • Validation of assumption that from signal
    strength location can be inferred.
  • How is location determined?
  • Signal strengths from 3 BSs.
  • Compare to floor layout/energy map.
  • Pick location that minimizes (Euclidian) distance
    between measured and recorded set of SSs.

20
Results
  • Empirical method performs better than random
    and strongest BS.
  • Error approx. size of a room
  • Taking k nearest neighbors shows some
    improvement.
  • Analysis of impact orientation, number of data
    points, and number of samples.
  • User tracking.

21
Radio propagation model
  • Model of indoor signal propagation.
  • No need for empirical data.
  • Indoor propagation
  • Reflection, diffraction, scattering.
  • Multipath effect.
  • Receiver gets signal from multiple paths.
  • Distorted signal.
  • Challenges dependency on layout, material,
    obstacles (number and type), etc.

22
Radio propagation model (contd)
  • Adaptation of existing model to single floor.
  • Consider effects of walls.
  • Signal strength varies with distance AND number
    (and type) of obstacles.
  • Empirical characterization of wall attenuation.
  • Use (corrected) empirical data and linear
    regression to determine other parameters.
  • Similar values for different BSs (location,
    surroundings, etc.)
  • Less accurate results than empirical model, but
    more practical.

23
Localization in Sensor Networks Bulusu01
24
What are sensor networks?
  • Large number of small, low-power devices
    (wirelessly) connected.
  • Applications
  • Monitoring, surveillance, tracking, etc.
  • Typically ad-hoc deployable, unattended
    operation.
  • Data-centric (instead of node-centric).

25
Localization
  • Estimation of physical position (coordinates).
  • Localization.
  • Why is this important?
  • Data usually identified by location (temperature
    of a given area, target tracking, signal
    processing applications).
  • No a priori knowledge of location.
  • GPS?

26
Approaches
  • Multilateration nodes measure enough pair-wise
    distance estimates.
  • Combination of radio (for time reference) and
    acoustic (time of flight for distance) signals.
  • Proximity-based beacon nodes periodically
    broadcast position nearby nodes then estimate
    their position.
  • Iterative multilateration beacon information
    propagated multi-hop.
  • Beacon density sparse in some areas.

27
Self-configuring localized algorithms
  • Adjust to current conditions (load, environment,
    etc).
  • Localized algorithms distributed computation
    where communication is restricted to given
    neighborhood.
  • Node density.
  • Multiple modalities.
  • Environmental adaptation.

28
Density
  • Trade-off sparse vs. dense networks.
  • Controlling density transmit power.
  • Higher power makes networks more dense.
  • Multiple power levels for tiered structure.
  • Problem right balance between number of beacons
    (for coverage) and good localization.
  • Power conservation.
  • Interference.

29
Sensor modalities
  • Use different modalities (acoustic sensors,
    cameras, etc) to overcome environmental
    unpredictability.
  • Example acoustic sensors and acoustic/visual
    sensors.
  • Acoustic sensing prefers LoS.
  • Cameras can help by determining LoS sensors.

30
Adapting to the environment
  • Not only to dynamics but also to fixed
    characteristics (e.g., obstructions, terrain,
    etc.).
  • Example boundary beacon can extend its lifetime
    by cutting down its duty cycle.
  • Example adapting to the dynamics of wireless
    channel using learning algorithms.
