ARGOS

1
ARGOS

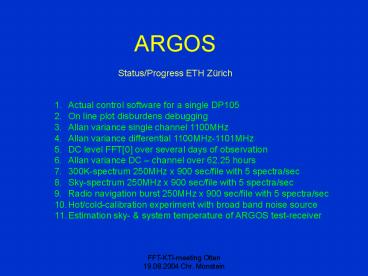

Status/Progress ETH Zürich

• Actual control software for a single DP105
• On line plot disburdens debugging
• Allan variance single channel 1100MHz
• Allan variance differential 1100MHz-1101MHz
• DC level FFT0 over several days of observation
• Allan variance DC channel over 62.25 hours
• 300K-spectrum 250MHz x 900 sec/file with 5
  spectra/sec
• Sky-spectrum 250MHz x 900 sec/file with 5
  spectra/sec
• Radio navigation burst 250MHz x 900 sec/file with
  5 spectra/sec
• Hot/cold-calibration experiment with broad band
  noise source
• Estimation sky- system temperature of ARGOS
  test-receiver

2
ARGOS
File AcqirisThread.h //-------------------------
--------------------------------------------------
ifndef AcqirisThreadH define
AcqirisThreadH include include
"vpptype.h" include "AcqirisD1Import.h" define
MaxSamples 32768 //------------------------------
--------------------------------------------- clas
s Acqiris public TThread private protected
void __fastcall Execute() public
__fastcall Acqiris(bool CreateSuspended) void
__fastcall ReadConfig(void) void __fastcall
FindDevices(void) void __fastcall
GetDigitalInput(void) void __fastcall
ConfigureDevice(void) void __fastcall
Acquire(void) void __fastcall
Readout(void) //------------------------------
--------------------------------------------- end
if
Application DP105.exe under Windows XP with
Borland C Builder 6 produces rf - spectra as
FITS - files using soft FFT.
File DP105params.cfg simulation0
// 0false, 1true samples512 // 216 sweeptime200 // 100msec timeslot
for one single spectrum prnsave0
// 0false, 1true fitsave1 //
0false, 1true fullscale0.05 // input
range - Volt sampinterval2.0E-9 //
seconds datapathe\argos2\data // place to
save FITS
3
ARGOS

• On line plots makes it easier to debug software
• and to find optimal parameters
• top left time signal (Yt)
• bottom left single spectrum (XY)
• bottom right dynamic spectras (XYZ)

4
ARGOS
Error bars 3sigma (0.997) 1 Tau
0.2sec 1174500 data points 62.25h of
observation
5
ARGOS
Error bars 3sigma (0.997) 1 Tau
0.2sec 1174500 data points 62.25h of
observation
6
ARGOS
24 hours
7
ARGOS
8
ARGOS
9
ARGOS
Tref Tnull 296K 3K
10
ARGOS
Cylindrical horn antenna looking to Zurich
sky Radionavigation band in HB9
11
ARGOS
Cylindrical horn antenna looking to Zurich
sky Direct hit of horn feed by microwave
communication
12
ARGOS
