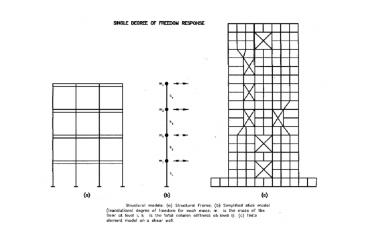

Idealized Single Degree of Freedom Structure

1
(No Transcript)
2
Idealized Single Degree of Freedom Structure
F(t)
Mass
t
Damping
Stiffness
u(t)
t
3
Equation of Dynamic Equilibrium
4
Observed Response of Linear SDOF (Development of
Equilibrium Equation)
Damping Force, Kips
Inertial Force, kips
Spring Force, kips
SLOPE k 50 kip/in
SLOPE c 0.254 kip-sec/in
SLOPE m 0.130 kip-sec2/in
5
Equation of Dynamic Equilibrium
6
Properties of Structural DAMPING (2)
AREA ENERGY DISSIPATED
DAMPING FORCE
DAMPING
DISPLACEMENT
Damping vs Displacement response is Elliptical
for Linear Viscous Damper
7
CONCEPT of ENERGY ABSORBED and DISSIPATED
F
ENERGY DISSIPATED
F
ENERGY ABSORBED
u
u
LOADING
YIELDING

ENERGY RECOVERED
ENERGY DISSIPATED
F
F
u
u
UNLOADING
UNLOADED
8
Development of Effective Earthquake Force
Ground Motion Time History
9
RELATIVE
TOTAL
M
M
Somewhat Meaningless
Total Base Shear
10
Undamped Free Vibration
Initial Conditions
Assume
Solution
11
Undamped Free Vibration (2)
T 0.5 seconds
1.0
Period of Vibration (seconds/cycle)
Circular Frequency (radians/sec)
Cyclic Frequency (cycles/sec, Hertz)
12
Periods of Vibration of Common Structures
20 story moment resisting frame T2.2 sec. 10
story moment resisting frame T1.4 sec. 1 story
moment resisting frame T0.2 sec 20 story braced
frame T1.6 sec 10 story braced frame T0.9
sec 1 story braced frame T0.1 sec
13
Damped Free Vibration
Equation of Motion
Initial Conditions
Assume
Solution
14
Damped Free Vibration (3)
15
Undamped Harmonic Loading
Equation of Motion
Frequency of the forcing function
0.25 Seconds
po100 kips
16
Undamped Harmonic Loading
Equation of Motion
Assume system is initially at rest Particular
Solution
Complimentary Solution
Solution
17
Undamped Harmonic Loading
LOADING FREQUENCY
Define
Structures NATURAL FREQUENCY
Transient Response (at STRUCTURE Frequency)
Dynamic Magnifier
Steady State Response (At LOADING Frequency)
Static Displacement
18
Undamped Resonant Response Curve
Linear Envelope
19
Response Ratio Steady State to Static (Signs
Retained)
In Phase
Resonance
180 Degrees Out of Phase
20
Response Ratio Steady State to Static (Absolute
Values)
Resonance
Slowly Loaded
Rapidly Loaded
1.00
21
Damped Harmonic Loading
Equation of Motion
po100 kips
22
Damped Harmonic Loading
Equation of Motion
Assume system is initially at rest Particular
Solution
Complimentary Solution
Solution
23
Damped Harmonic Loading
Transient Response, Eventually Damps Out
Solution
Steady State Response
24
Damped Harmonic Loading (5 Damping)
25
Resonance
Slowly Loaded
Rapidly Loaded
26
Alternative Form of theEquation of Motion
Equation of Motion
Divide by m
but
and
or
Therefore
27
General Dynamic Loading
For SDOF systems subject to general dynamic
loads, response may be obtained by

• Duhamels Integral
• Time-stepping methods

28
Development of an Elastic Displacement Response
Spectrum, 5 Damping
El Centro Earthquake Record
Maximum Displacement Response Spectrum
T0.6 Seconds
T2.0 Seconds
29
Development of an Elastic Response Spectrum
30
NEHRP Recommended Provisions Use a Smoothed
Design Acceleration Spectrum
Short Period Acceleration
SDS
Long Period Acceleration
Spectral Response Acceleration, Sa
SD1
T0
TS
T 1.0
Period, T
31
Average Acceleration Spectra for Different Site
Conditions
