Republic of Indonesia

1

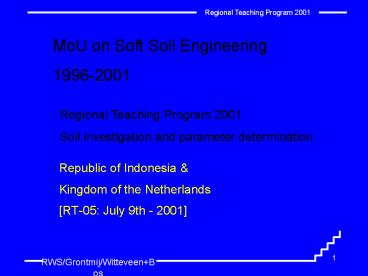

MoU on Soft Soil Engineering 1996-2001
Regional Teaching Program 2001 Soil investigation
and parameter determination

• Republic of Indonesia
• Kingdom of the Netherlands
• RT-05 July 9th - 2001

2
Contents (1)

• Purpose
• General aspects
• Boundary conditions
• Scope of work
• Design stages
• Preliminary investigation
• Investigation approach final design
• Site investigation techniques
• Laboratory testing
• Parameter determination

3
Contents (2)

• Cost estimate
• Correlations
• Presentation of results

4
Main Purpose of soil investigation

• Obtain an adequate (better) insight in the
  behaviour of the subsoil and fill material, so
  that it is possible to optimise the design of the
  construction, regarding risk assessment
• Important parameters of subsoil and fill are
• stiffness Cc, C, cv
• strength Phi, (un) drained cohesion

5
Sub purposes of soil investigation

• Geotechnical soil profile
• Representative cross sections
• Soil stratification
• Geotechnical parameters
• Geo-hydrological parameters
• Groundwater table and piezometric heads
• Environmental investigations and data

6
Wrong soil investigation approach
7
Wrong soil investigation approach
8
General aspects

• Depending on the kind of project site visit
• Determine geotechnical category (GC) of
  structure
• depends on risk assessment
• determines the amount and accuracy of the soil
  investigation
• Peat layers ask for special attention
• Determine the failure mechanisms
• shearing, squeezing, settlement, horizontal
  deformation, negative skin friction

9
Boundary conditions and requirements

• Primary boundary conditions
• stability and (residual) settlements
• availability of local construction materials
• functional requirements (dimensions)
• time frame
• site condition subsoil and water levels
• loads
• special attention to cables, pipes, other
  constructions
• maintenance cost optimisation

10
Scope of work

• Based on program of requirements PoR
• The amount of soil investigation depends on
  design stage the project is in
• Is it wise to carry out soil investigation in
  stages?
• Design requirements
• road classification (related to GC)
• dimensions of the embankment
• design levels
• loads in construction and operational phase

11
Scope of work

• dead weight, earthquake variable load (traffic,
  groundwater change)

12
Design stages

• Tune soil investigation to the design stage

13
Soil investigation vs model parameters

• Prediction models

• Soil investigation

• Interpretation?

• Soil Parameters

• Interpretation

• Model parameters

14
Preliminary investigation

• The use of archive
• Site visit

15
Preliminary investigationThe use of archive

• Site situation
• Soil structure
• Use of archive material and maps
• Geo-hydrological conditions
• Info cables, pipelines etc
• Experience from recently carried out comparable
  projects

16
Preliminary Investigation Site visit

• Site conditions (actual)
• Geologic and geotechnical conditions
• Geo-hydrological condition (open water)
• Historical information (old rivers, drains)
• Estimate the scope of field investigation
• is the site accessible for equipment?
• steep slopes?
• First briefing on geotechnical conditions for
  planning and design process

17
Investigation approach soil investigation

• Approach to soil investigation
• starting points sequences
• Investigation techniques
• Intensity
• amount of borings, in situ testing
• amount of (un)disturbed samples

18
Starting points and sequence
19
Soil investigation progress
20
Site investigation techniques
21
Site investigation techniquesExample CPT

• Cone resistance
• Sleeve friction
• Friction ratio

22
Site investigation techniquesWater-level
measurements

• Important, however expensive
• measuring groundwater level
• measuring piezometric level
• measuring during construction stages

23
Site investigation techniques Intensity

• Variation in soil stratification
• Accuracy (stability settlements)
• Safety
• Amount of soil investigation
• CPT /boring field tests each 100 -250 m
• samplings each 1-2 m depth
• Atterberg limits, field vane is powerful
• Higher intensity
• less supervision and monitoring
• in case of a problem easier to tackle
• design values more close to mean values
• risk of calamities decreases

24
Laboratory testing

• Purpose
• if possible do direct testing
• Type
• Classification tests
• Quantitative tests
• Parameter determination (site lab)

25
Laboratory testingClassification

• Water content
• Organic content
• Degree of Humification
• Fiber content
• Bulk density
• Atterberg limits
• Visual identification by an expert

26
Laboratory testingQuantitative tests in situ

• Parameter determination derived from in situ
  testing

27
Laboratory testingQuantitative tests in lab

• Parameter determination derived from laboratory
  testing more direct measurement

28
Parameter determination
29
Cost estimate

• Remark do it before starting!!
• Costs
• Mobilisation demobilisation
• Personal (supervisor crews)
• Field tests (boring, samplings, etc)
• Laboratory testing
• Reporting
• Interpretation and analysis

30
Correlation's

• Very powerful for design
• Cheap
• More than a rule of thump
• Gain in future own correlation's for Indonesian
  Peat
• Correlation's empirical and regression equations
  (compare with tables for clay deposits in
  literature J.E. Bowles)

31
Examples of correlation's

• Settlement
• look for regression equations with respect to to
  peat
• Compression index versus water content w, or
  Liquid Limit LL
• Terzaghi and Peck
• Nishida
• Compression ratio CR versus void ratio e
• Coefficient of consolidation cv versus Liquid
  Limit
• Coefficient of secondary compression Calfa vs
  water content w

32
Correlation CPT vs. soil type
33
Presentation of the results

• Give the client the feeling he paid for something
  worthwhile
• Geotechnical report
• present clear figures
• present interpretation/analysis of factual data
• present geotechnical parameter set for the
  predictions in a table
• present factual data separately
• Store the factual data for future projects

34
Presentation and store(example of a computer
program)
35
Presentation and store(example of a computer
program)
36
Example presentationParameters in a graph
37
Example presentation3D block model
38
Example presentationGeotechnical Profile
39
Example presentation3D solid layers
40
Example presentationThickness or depth map
41
Figures tend to give more insight than tables
Station Vijzelgracht
42
Application Export of geometry to software
Plaxis, Finite Element Methods
MGeo serie, analytical calculation software
43
Recommendations

• Do not forget soil investigation on fill material
• Think about the purpose of soil investigations
  prior to the start of a project
• Soil investigation and analysis is an essential
  part of the design
• Clear presentation of the interpretation of
  factual data is important
• Carry out soil investigations in different
  phases, related to the design stages

44
Excercise

• An embankment with a height of 6 metres above
  surface level needs to be constructed
• The subsoil can be described as follows
• up to 3 metres below surface peat
• beneath this layer a 3 metres thick silty clay
  layer is encountered
• beneath the silty clay layer sand is encountered
• The groundwater level reaches up to the surface

45
Excercise

• Preleminary study
• Determine the required data (make a list)
• Determine the possible geotechnical problems
  (make a list)

46
Excercise

• Soil investigation and parameters
• Perform a soil investigation program
• Make a cost estimate
• Determine the parameters required for stability
  and settlement calculations
• How can the parameters can be determined?
• Perform a laboratory test program
