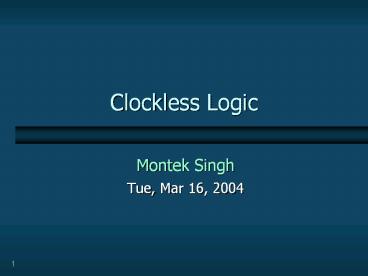

Clockless Logic

• Montek Singh
• Tue, Mar 16, 2004

2
Outline

• Where are we?
• Recap Logic Gate Families
• New Topic Asynchronous Pipelined Processing

3
Where are we?

• Introduction to clockless logic
• Benefits and challenges
• Data representation, and control signaling
• Graphical representation of asynchronous systems
• Petri nets, state transition graphs, burst-mode
  machines, etc.
• Algorithms for logic synthesis
• Combinational Sequential
• VLSI design primer
• Design techniques
• High-performance fine-grain pipelining
• Low-power
• Formal methods
• Performance analysis
• Verification
• Case studies of real-world asynchronous processors

4
ReviewLogic Gate Families

• Static CMOS logic
• Dynamic logic, or domino logic
• Transmission gates, or pass-transistor logic

5
Static CMOS logic

• Advantages
• output always strongly driven
• pull-up and pull-down networks are
  fully-complementaryexactly one of them is on
  always
• good immunity from noise and leakage
• both inverting and non-inverting functions
  implementable
• each gate is inverting
• cascade two gates together to get non-inverting
  logic
• Disadvantages
• slow/big PMOS devices needed (in addition to
  NMOS)
• greater chip area
• higher power consumption
• slower switching speed

6
Dynamic Logic, or domino

• Key idea
• only use NMOSs to compute function
• use a single PMOS to reset
• Advantages
• significantly fewer transistors ? smaller chip
  area
• higher speed, lower power
• less loading on wires (drive fewer transistors)
• for async no storage elements needed
• Disadvantages
• need extra control input to precharge
• logic is typically non-inverting only
• more vulnerable to noise and leakage effects

7
Dynamic Logic, or domino (contd.)

• Gate has 2 phases
• precharge (reset) output reset to 0
• evaluate output computed ? either stays 0, or
  switches to 1

control input
controlsprecharge
PC
PC 0 (asserted) ? precharge
pull-upnetwork
pull-down network
dataoutput
PC 1 (de-asserted) ? evaluate
datainputs
controlsevaluation

• Pull-up and pull-down must never both be
  simultaneously active
• ensure that data inputs are reset while gate is
  precharging
• or, add a footer device

8
Transmission Gates

• Key Idea
• transistors used in a different configuration
• when switched on instead of connecting output
  to Vdd or Gnd, they connect output to the input
• Advantage
• very efficient for implementing switches and
  multiplexers
• Disadvantage
• signal degradation unless both NFET and PFET
  passgates are used in a complementary
  configuration

9
Asynchronous Pipelined Processing

• Pipelining basics
• Fine-grain pipelining
• Approach I MOUSETRAP pipelines

10
Background Pipelining

• What is Pipelining? Breaking up a complex
  operation on a stream of data into simpler
  sequential operations

Storage elements(latches/registers)
Performance Impact Throughput significantly
increased (data items processed/second) Latency
somewhat degraded (seconds from input to
output)
11
Focus of Asynchronous Community

• Our Focus Extremely fine-grain pipelines
• gate-level pipelining use narrowest possible
  stages
• each stage consists of only a single level of
  logic gates
• some of the fastest existing digital pipelines to
  date
• Application areas
• general-purpose microprocessors
• instruction pipelines often 20-40 stages
• multimedia hardware (graphics accelerators, video
  DSPs, )
• naturally pipelined systems, throughput is
  critical input bursty
• optical networking
• serializing/deserializing FIFOs
• string matching?
• KMP style string matching variable skip lengths
