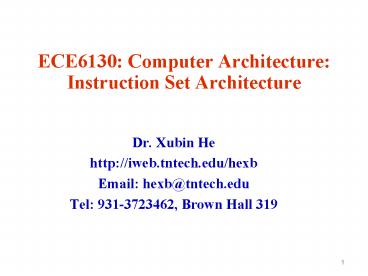

ECE6130 Computer ArchitectureInstruction Set
Architecture

• Dr. Xubin He
• http//iweb.tntech.edu/hexb
• Email hexb_at_tntech.edu
• Tel [phone], Brown Hall 319

2

• Previous Class
• Memory addressing
• Today
• Operands and operations

3
Type and Size of Operands

• Encoding in opcode designates the type of operand
• Data can be annotated with tags interpreted by
  hardware (in museums)
• Desktop and Server architectures
• Character (8 bits), half word (16 bits), word (32
  bits), single-precision FP (also 1 word), and
  double-precision FP (2 words)
• Some business apps have decimal format called
  packed decimal 4 bits are used to encode values
  0-9, and 2 decimal digits are packed into each
  byte
• Accurately match decimal numbers
• See figure 2.12
• Frequency of access to different data types
  decide what type are most important to support
  efficiently
• A 64-bit access path, or taking 2 cycles to
  access a double word

4
Figure 2.12 Distribution of data accesses by size
for benchmark programs
5
Operations in ISA

• Operator Types
• Simple operation instructions dominate most
  instruction executed
• Arithmetic and logical , -, and, or
• Data transfer load-stores (move inst)
• Control branch, jump, procedure call and
  return
• System OS call, VM management inst
• Floating point add, multiply
• Decimal decimal add, decimal multiply
• String string move, compare
• Graphics pixel and vertex Ops, compression/de
  Ops
• 80x86 as an example, see figure 2.16

Basic System functions
various
6
Figure 2.16
7
About Registers

• A register is an array of flip-flops with special
  properties
• Registers are the fastest kind of addressable
  memory
• Registers are located on the same die as the
  processor
• Registers are NOT located in main memory, L0
  cache!
• The set of registers in a processor is called the
  register file
• Registers are addressed separately differently
  from main memory
• MIPS R2000 architecture
• Main memory addresses are 32 bits
• 4,294,967,296 addressable 8-bit bytes
• Register addresses are 5 bits
• 32 addressable 32-bit general-purpose registers
• Register addresses run from 000002 010 to
  111112 3110
• MIPS assembler Register addresses are written
  0, , 31

8
About Registers
9
More about ISA

• Why register architectures are dominant?
• Since 1980, logic circuits have become much
  faster than dynamic RAM
• Registers are faster than main memory
• Registers are faster than stack
• A stack is built in main memory
• Operands that are in registers can be used in any
  order
• Registers can hold variables as they are updated
  in a multi-step computation
• Reduction of main memory traffic makes
  computations faster
• Register addresses (typically 5 bits) are shorter
  than main memory addresses (typically 32 to 64
  bits)
• Code density (information per bit in an
  instruction) is higher than in Load-Store archs
  than in archs allow memory-resident operands
• Short, fixed addressing ? fixed length
  instructions
• For a register machine, one can optimize the most
  frequently used instructions (which are very
  simple, by experiments)

10
More on addressing modes
11
(No Transcript)
12
(No Transcript)
13
(No Transcript)
14
(No Transcript)
15
(No Transcript)
16
(No Transcript)
17
Addressing Modes for Control Flow Instructions

• Must specify the destination address of a control
  flow instruction
• Mostly be specified explicitly in the instruction
• Procedure call is exception
• PC-relative addressing
• Problem Procedure return the target is unknown
  at compile time
• Solution supply a displacement added to program
  counter (PC)
• Pros
• target near current instruction
• specifying the position relative (delta) to PC
  requires fewer bits
• Permits the code to run independently of where it
  is loaded
• Position independence, eliminate some work when
  the program is linked and is also useful in
  programs linked dynamically during execution

18
Assume MyProgram is the main executable program,
Strcmp() is a call procedure and statically
linked with MyProgram.
1000
MyProgram needs to call strcmp()
Loadrel 100PC
Offset 100
100
1100
Strcmp().
1000
Main Memory
19
Register indirect jump

• Register indirect jumps
• Problem Target unknown at compile time
• Solution naming a reg that contains the target
  adr
• Register indirect jumps support following
  features in programming languages
• Case or switch statements
• Virtual functions or methods in OOP programming
• High-order functions or function pointer like C
  or C
• Dynamically shared libraries

20
Assume MyProgram is the main executable program,
Strcmp() is a call procedure and dynamically
linked with MyProgram.
1000
MyProgram needs to call strcmp()
Load R31
R31
1100
1100
strcmp().
Main Memory
21
Instruction for Control Flow

• Types of Control Flow Instruction
• Jump unconditional control transfers
• Branch conditional
• Procedure calls
• Procedure returns
• See figure 2.19
• See figure 2.30 for typical control flow
  instructions in MIPS
• All control instructions, except jumps to an
  address in a register, are PC-relative

22
Figure 2.19 breakdown of control flow instructions
23
How to specify branch conditions

• Most changes in control flow are branches ? how
  to specify the branch conditions
• Three primary techniques
• Condition code (CC) 80x86, PowerPC, SPARC
• Condition register Alpha, MIPS
• Compare and branch VAX, PA-RISC
• Compare and Branch
• Many branches are simple equality or inequality
  tests
• Large fraction are comparisons with zero
• Frequency of different comparisons used for
  conditional branching, see figure 2.22

24
Figure 2.22 frequency of different types of
compares in conditional branches
25
Procedure Calls/Returns

• Procedure calls/returns include some state saving
• For sure, the return address in a procedure call
• Sometimes, a GPR
• Sometimes the whole reg set in a procedure call
• If compiler has to save regs, 2 conventions are
  possible
• Caller saving calling procedure has to save the
  regs it wants preserved for access after the call
• Callee saving called procedure must save the
  regs it wants to use
• Compiler prefers caller saving to avoid
  complications from global variable allocations
• P1 calls P2 and both have a global variable x,
  save to a Reg, and must save x to a place P2
  knows before call P2.
• Why?

Because even P2 does not touch x, its
sub-procedure P3 may still access x!
26
Destination of Branches

• Most branches are forward (75)
• Most branches branch to nearby locations
• See figure 2.20
• The most frequent branches in the integer
  programs are to targets that can be encoded in
  4-8 bits
• Short displacement fields suffice for branches ?
  Gain encoding density by having a shorter
  instruction with a smaller branch displacement

27
Figure 2.20 branches distances tested on L/S Alpha
28
Encoding an Instruction Set

• Operation is encoded in a field Opcode
• How to encode the addressing modes with
  operations?
• Depends on the range of addressing modes and the
  degree of independence between opcodes and modes
• If many addr modes/operands gt use a separate
  address specifier for each operand
• Ex., 1-5 operands with 10 adr modes for each
  operand (Fig. 2.6)
• Address specifier tells what addressing mode is
  needed for each operand
• If (in a load-store machine) one mem operand and
  one/two addressing modes gt encode the addressing
  mode as part of opcode
• Need field(s) for encoding reg. And (maybe) addr
  mode, of regs and of addr modes ? instruction
  size

29
Encoding an Instruction Set

• Balance several competing forces
• Have as many regs and addr modes as possible
• Impact of the size of the reg and addr mode
  fields on avg inst size ? program size
• Desire to have inst encodes into lengths easy to
  handle in a pipelined implementation
• Many desktop and server architects have chosen to
  use a fixed-length inst to gain implementation
  benefits while sacrificing avg code size

30
Figure 2.23
31

• E.g., Intel 80x86 instruction (variable encoding)
• add EAX, 1000(EBX) 6 bytes

1000 gt 28, need 4 bytes
32 bit integer add with 2 operands This opcode
is 1 byte
Addr specifier is 1 or 2 bytes Specifying
src/des reg(EAX), AM, and base reg(EBX)?1 byte
32
Reduced code size in RISC

• Hybrid version of RISC
• Both 16-bit and 32-bit inst
• Fewer ops, smaller addr and immediate fields,
  fewer regs, two addr format than classic three
  addr
• ARM Thumb and MIPS 16
• Inst cache is 25 bigger
• IBM CodePack
• Compress standard Inst set, add HW to decompress
  inst as fetched from mem on an inst cache miss
• Compressed code kept in mem
• 10 overall performance loss but 35-40 code
  size reduction gain

33
Next
