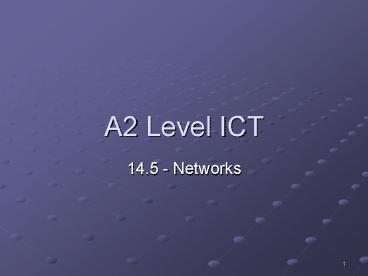

A2 Level ICT

1
A2 Level ICT

• 14.5 - Networks

2
Understand the particular security, audit
accounting problems associated with networks
recall the steps, which can be taken to preserve
securityUnderstand the reasons for using
accounting software in providing a network
service
3
Problems with using a network

• Risk of unauthorised access meaning potentially
  sensitive/confidential information may be
  accessible
• Risk of viruses all nodes need to have up to
  date anti-virus software
• Reliance on external agencies telecoms n/w that
  the company has little/no control over

4
Problems with using a network

• More vulnerable to spurious data if incorrect
  data is entered into the system, the mistake may
  not be picked up for a long time
• More difficult to backup as there will be no
  one centralised control
• Increased management overhead - means that more
  time/money/manpower will need to be dedicated to
  the computer systems

5
Accounting Log

• Record of facilities used - processor time
• Number of pages printed
• Disk space used
• System failure crash details
• File details for storage, update deleted
• E-mail storage usage
• Duration time of login

6
Accounting Log

• User ID
• Network address/station address
• Failed logon attempts
• Licenses used
• Network traffic
• Failed logins

7
Why is the accounting log important?

• Provides system administration evidence of
  network workload
• Allows administrators to deal with network
  performance problems
• Allow for sensible distribution of system
  resources
• Limit scarce resources - where required
• Administer a charging system

8
Why is the accounting log important?

• Make informed decisions about upgrades system
  enhancements
• Deal with network misuse
• Monitor software licenses
• Memory/storage utilisation
• Control network abuse
• Administrator identify support novice users

9
Measures to combat Intranet network problems

• Provide user login and password to make it more
  difficult to enter the system if not authorised
• Set up required procedures so that users know
  the tasks that need to be carried out to maintain
  system security/integrity
• Invest in redundant systems for mission critical
  applications so that if disaster hits,
  essential business functions can still be carried
  out

10
Measures to combat Intranet network problems

• Ensure validation/verification checks are made on
  data
• Encryption of data so that intercepted
  data/packets cannot be understood
• Use up to data anti-virus software
• Use a firewall to provide a filter on traffic
  coming in/going out

11
Preserving Network Security

• Assign access rights to different users -
  read/write access, read-only, input/edit update
  capability, summary reporting, queries system
  administration
• Control physical access to hardware - banks
  system for assigning PINs
• Control sensitive applications to certain
  terminals
• Codes of practice
• Train staff to be aware of security issues
  procedures
• Security procedures already in place
• Audit of security procedures

12
Preserving Network Security

• Auto-log off
• Control access to hardcopies/printouts
• Create a login ID or password to identify user
• Force change of passwords on a timed basis
• Create hierarchy of password giving different
  access rights
• Set an accounting log to track misuse/inappropriat
  e transactions
• Allocation of network address to workstation
• Firewall
• Controlled access to peripherals

13
Describe the measures taken to protect network
traffic against illegal access
14
Network Protection

• Never give your password to anyone
• Never write your password down
• Never let anyone stand behind you when you key in
  your password
• Never e-mail your password to anyone

15
Network Protection

• Never use a password that can be found in a
  dictionary
• Change your password on a regular basis
• Never use your user id as a password
• Do not choose a password that relates to you as
  an individual nickname
• Use encryption facilities when sending sensitive
  data

16
Understand the reasons for using audit software
in providing a network service
17
Audit Software

• Audit software is usually standalone meaning
  that it runs independently from the software it
  is monitoring/testing
• It is designed to supply test data, which is then
  processed according to the application software
  being run
• This tests the effectiveness of the applications
  software internal controls can be assessed in
  this way
• Audit software can also monitor system misuse
• The use of an accounting log can allow technical
  support the opportunity to back track, using the
  accounting log to trace any misuse

18
Understand how a network environment affects the
user interface provided, e.g. security, control
of software, control of files, access rights
19
Security of the system

• Need to login to the system puts more dialogue
  inn place before accessing the system proper

20
Control of software used

• Only allow the licensed number of concurrent
  copies to run at any one time
• So users may not access software on demand
• Time restrictions on access to software
• So that users are only allowed to use certain
  software at designated times

21
Control of files used

• Locking of files so that integrity of data is
  preserved
• Users are aware of others accessing the files
• Ability to provide files that cannot be altered
  by users

22
Access rights to resources

• Users can only print to certain printers
• So that users in different areas see different
  printers
• Users can only see network drives relevant to
  their needs e.g. administrators see all resources
• Access rights update, delete, edit, print, read
  only, read/write

23
Networked v. Standalone

• Login screen user has one more stage to
  complete before they are able to use their system
• More disk drives in screen user now has access
  to drives that are logical rather than physical
• Less control over data user may now find that
  they have changed/no right to access files they
  could previously

24
Networked v. Standalone

• Physical appearance of workstation/environment
  extra ports on machine/extra cable connected to
  machine/ability to print to other machines/extra
  hardware in the form of hubs
• Access to remote/shared resources
• Less control over the interface inability to
  customise
• Increased communication using/via the machine
