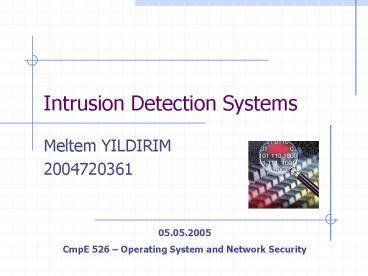

Intrusion Detection Systems

1
Intrusion Detection Systems

• Meltem YILDIRIM
• 2004720361

05.05.2005 CmpE 526 Operating System and
Network Security
2
Agenda

• Introduction to IDS
• Classification of IDS
• IDS Models
• Available IDS Tools
• Conclusion Future Work

3
What is Intrusion?

• Intrusion Actions attempting to break into or
  misuse ones system in violation of an
  established policy
• Types of Intrusion
• Attempted break-ins
• Masquarade attacks
• Penetration of the security
• control system
• Denial of Service
• Malicious Use

4
What is an IDS?

• IDS system trying to detect and alert on
  attempted intrusions into a system or network
• Reactive rather than proactive
• (usually does not prevent unauthorized users
  from entering the network, only identifies that
  an intrusion has occurred)
• May provide diagnostic information, too
• Objective 100 accuracy
• False positive false alarm
• False negative letting an attack pass undetected

5
An IDS Protected Enterprise
6
Elements of a Basic IDS Model

• Audit Data (logs)
• Keyboard inputs, command-based or
  application-based logs
• Reference Data Store
• Intrusion signatures (known attack patterns)
• Profiles of normal behaviours
• Algorithms searching for suspicious behaviour
• Alarm

7
Classifying IDSs

• Offline v.s. Online
• Host-Based v.s. Network-Based
• Anomaly Detection v.s. Misuse Detection

8
Offline v.s. Online

• Offline
• audit data is processed periodically, not
  real-time
• work on audit logs
• data mining

• Online
• audit data is processed real-time continuously
• may react and prevent an intrusion still going
  on

9
Host-Based v.s. Network-Based (1)

• Host-Based / HIDS
• A SW installed on each node

Disadvantage Consume CPU time, storage, memory
and other system resources
10
Host-Based v.s. Network Based (2)

• Network-Based / NIDS
• Monitors all packets on the network wire
• e.g. may watch for large number of TCP
  connection requests to many different ports
• Either runs on a single machine (hub, router,
  etc.) or is divided into several sensors and one
  central analysis point
• Usually utilize a network adapter
• Typically host-independent but may be a SW
  package installed on a dedicated host
• Monitors numerous hosts simultaneously but may
  suffer from performance problems as network speed
  increases

11
Anomaly Detection v.s. Misuse Detection (1)

• Anomaly Detection
• Assumption Attacks differ from normal
  behaviour
• Analyses the network or system and infers what is
  normal
• (Establishes a normal activity profile)
• Interprets deviations from this normal
  behaviour as an intrusion

• Profile generation
• one-time activity
• current and previous profiles may be merged at
  intervals

Activity measures such as CPU time used, number
of network connections in a time period
Adjustment of threshold levels is very important
12
Anomaly Detection v.s. Misuse Detection (2)

• Anomaly Detection
• Advantages
• May catch novel attacks we have not seen before
• Disadvantages
• Current implementations do not work very well
  (too many false positives/negatives)
• Cannot categorize attacks very well
• Difficult to train in highly dynamic environments
• The system may be gradually trained by intruders

13
Anomaly Detection v.s. Misuse Detection (3)

• Misuse Detection
• Attacks are known in advance (signatures)
• Matches signatures against the audit data stream
• The attack signatures are usually specified as
  rules

14
Anomaly Detection v.s. Misuse Detection (4)

• Misuse Detection
• Advantages
• Easy to implement, deploy, update and understand
• Low rate of false positives
• fast
• Disadvantages
• Cannot detect previously unknown attacks
• Constantly needs to be updated with new rules
• As good as the database of attack signatures

15
IDS Models

• Predective Pattern Generation
• Fuzzy Classifiers
• Neural Networks
• Support Vector Machines
• Expert Systems
• Decision Trees
• Keystroke Monitoring
• State Transition Analysis
• Pattern Matching
• Autonomous Agents

16
Predictive Pattern Recognition

• Try to predict future events based on event
  history
• e.g. Rule E1 - E2 ? (E3 80, E4 15, E5
  5)

E3
Intrusion Left-hand side of the rule is matched
but the right-hand side is statistically deviant
from prediction
E1
E2
E4
E5
17
Fuzzy Classifiers (1)
data mining

• No clear boundary between normal and abnormal
  events
• Selection of features
• Number of abnormal packets (invalid source or
  destination IP address)
• Number of TCP connections
• Number of failed TCP connections
• Number of ICMP packets
• Number of bytes sent / received per connection

18
Fuzzy Classifiers (2)

• Detecting a Port Scan
• if count of UNUSUAL SDPs on port N is HIGH
• and count of DESTINATION HOSTS is HIGH
• and count of SERVICE Ports observed is
  MEDIUM-LOW
• then Service Scan of Port N is HIGH
• Detecting a DoS Attack
• if count of UNUSUAL SDTs is HIGH
• and count of ICMPs is HIGH
• then DoS ALERT is HIGH

SDP source IP - destination IP - destination port
SDT source IP - destination IP - packet type
19
Neural Networks IDS Prototypes (1)

• Perceptron Model
• simplest form of NN
• single neuron with adjustable synapses (weights)
  and threshold
• baseline for measuring the performance of other
  models

20
Neural Networks IDS Prototypes (2)

• Backpropagation Model
• Multilayer feedforward network
• input layer at least one hidden layer output
  layer
• Correct detection rate 80 with 2 false alarms

21
Neural Networks Data Preprocessing

• 1st round Selection of data elements
• protocol ID, source port, destination port, etc.
• 2nd round Creation of relational databases
• 3rd round Conversion of query results into an
  ASCII comma delimited normalized format

supervised learning
0,2314,80,1573638018,-1580478590,1,1,401,3758,0 0,
1611,6101,801886082,-926167166,1,1,0,2633,1
22
Neural Networks Detection Approaches (1)

• Detection by Weight Hamming Distance
• Let Vn 0,1n be the n-dimensional vector space
  over the binary field 0,1 where n 0,1,,8
• Let A,B ? Vm
• S Wi ? (Ai ? Bi)
• whd(A,B)

• Find WHD between
• normal and current
• behaviour.
• If WHD gt threshold
• then ALARM

23
Neural Networks Detection Approaches (2)
NEW!

• Improved Competitive Learning Network
• When a training example is presented to the
  network, the output neurons compete
• Winning and losing neurons update their weight
  vector differently
• Neurons become specialized to detect different
  types of attacks

Learning rate
desired actual
?w - ? x (r - y) x Input
24
SVM / Support Vector Machines (1)
F n-dimensional feature space
Training period SVMs plot the training vectors
in F and label each vector SVs make up a decision
boundary in the feature space
25
SVM / Support Vector Machines (2)
e.g. n 2 features num_failed_logins
number of failed login attempts
num_SU_attempts number of su root command
attempts
We feed the system with labeled vectors The
system automatically draws the boundaries or
hyperplanes by an algorithm
26
Expert Systems (forward-chaining)
27
Sample Grammar for Expert Systems

• BNF Grammar for Inference Rules
• Variable Definition
• VAR body_1
• body_1 var_name var_value
• var_value list_of(value) value
• Detection Rules
• RULE Id body_2
• Id value / Id is the identifier of the rule
  /
• Body_2 list_of(condition) condition gt
  alert
• condition feature operator term
• operator contain in gt lt
• term value list_of(value) var_name
• Action Rules
• BEHAVIOUR body_3
• body_3 condition gt action_argument
• condition boolean expression
• action update log exit continue

28
Decision Trees

• All nodes are represented by a tuple (C, R, F,
  L)
• C condition
• (feature, operator, value)
• R set of candidate detection rules
• F feature set (already used to decompose tree)
• L set of detection rules matched at that node

root (null, All Rules, Ø, Ø)
root
C4.5 decision tree construction algorithm
29
Autonomous Agents

• Several independent small processes operating and
  cooperating to maintain the system
• Advantages
• Efficiency
• Fault tolerance
• Extensibility
• Scalability
• Can be applied to Wireless Ad Hoc Networks
• Disadvantage
• Overhead of so many processes

30
Available IDS Tools

• Commercial
• RealSecure
• Public-Domain
• Shadow
• Snort
• Research Prototypes
• Emerald

31
RealSecure

• Real-time IDS
• 3-part architecture
• Network-based recognition engine
• Monitors a network segment and look for packets
  that match attack signatures
• Response terminate connection, send alert,
  record session, reconfigure firewall
• Host-based recognition engine
• Analyses system logs
• Response terminate user processes, suspend user
  accounts
• Administrators module
• www.iss.net

32
Shadow

• Composed of
• Sensors
• Reside at key monitoring points in network
  (outside firewall)
• Extract packet headers save them to a monitoring
  file
• Analysis station
• Inside firewall
• Reads the monitoring file periodically
• joint venture of Naval Surface Weapons Center
  Dahlgren, Network Flight Recorder, the National
  Security Agency, and the SANS Institute
• www.nswc.navy.mil/ISSEC/CID/

33
(No Transcript)
34
(No Transcript)
35
Snort

• open-source public-domain ID tool
• real-time traffic analysis and packet logging on
  IP networks
• protocol analysis, content searching / matching
• flexible rules language to describe traffic that
  it should collect or pass
• large group of users who contribute new
  signatures
• Installation guides written in Turkish!
• www.snort.org

36
Emerald

• Event Monitoring Enabling Responses to Anomalous
  Live Disturbances
• hybrid method (anomaly misuse detection)
• users are grouped into independently administered
  domains (divide-and-conquer)
• www.sdl.sri.com/emerald/

37
Conclusion Future Work

• Several IDS models either looking for attack
  signatures or abnormal behaviours (predictive
  pattern generation, NN, SVM, rule-based systems,
  decision trees, pattern matching, etc.)
• Misuse detection methods are widely used in
  practice whereas Anomaly detection methods are
  more popular among researchers
• Detecting a wider range of intrusions with fewer
  false negatives
• Adaptation to modern networks with increased
  size, speed and mobility

38
Conclusion Future Work

• Further investigation in hybrid systems
• Standardization for Interoperability
• IDMEF (Intrusion Detection Message Exchange
  Format) proposed by IETF
• Defines the format of alerts and alert exhange
  protocols
• Object-oriented representation, XML
• http//www.ietf.org/internet-drafts/draft-ietf-idw
  g-idmef-xml-06.txt

39
References

• Kemmerer, R.A., Vigna, G., Intrusion Detection A
  Brief History and Overview, Security Privacy,
  2002. pp.27-30.
• Sherif, J.S., Dearmond, T.G., Intrusion
  Detection Systems and Models, Proceedings of the
  11th IEEE International Workshops on Enabling
  Technologies Infrastructure for Collaborative
  Enterprises, 2002.
• Abbes, T., Bouhoula, A., Rusinowitch, M.,
  Protocol Analysis in Intrusion Detection Using
  Decision Tree, Proceedings of the International
  Conference on Information Technology Coding and
  Computing (ITCC04), 2004.
• McHugh, J., Christie, A., Allen, J., Defending
  Yourself The Role of Intrusion Detection
  Systems, IEEE Software, 2000.
• Liu, Y., Tian, D., Wang, A., ANNIDS Intrusion
  Detection System Based on Artificial Neural
  Network, Proceedings of the 2nd International
  Conference on Machine Learning and Cybernetics,
  2003.
• Mukkamala, S., Janoski, G., Sung, A., Intrusion
  Detection Using Neural Networks and Support
  Vector Machines, 2002.

40
References

• Mukkamal, S., Sung, A., Artificial Intelligent
  Techniques for Intrusion Detection, 2003.
• Salameh, W.A., Detection of Intrusion Using
  Neural Networks, Studies in Informatics and
  Control, vol.13, no.2, June 2004.
• Lei, J.Z., Ghorbani, A., Network Intrusion
  Detection Using an Improved Competitive Learning
  Neural Network, Proceedings of the 2nd Annual
  Conference on Communication Networks and Services
  Research, 2004.
• Lindqvist, U., Porras, P., Detecting Computer and
  Network Misuse Through the Production-Based
  Expert System Toolset (P-BEST), Proceedings of
  the 1999 IEEE Symposium on Security and Privacy,
  1999.
