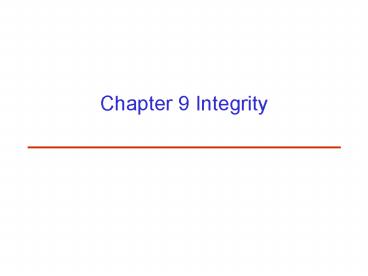

Chapter 9 Integrity

1
Chapter 9 Integrity
2
Outline

• Introduction
• A Closer Look
• Predicates and Propositions
• Relvar Predicates and Database Predicates
• Checking the Constraints
• Internal vs. External Predicates
• Correctness vs. Consistency
• Integrity and Views
• A Constraint Classification Scheme
• Keys
• Triggers
• SQL Facilities

3
Constraint Examples

• Every supplier status value is in the range 1 to
  100 inclusive
• CONSTRAINT SC1
• IS_EMPTY ( S WHERE STATUS lt 1 OR STATUS gt 100 )

• Every supplier in London has status 20
• If there are any parts at all, at least one of
  them is blue
• No two distinct suppliers have the same supplier
  number
• Every shipment involves an existing supplier
• No supplier with status less than 20 supplies any
  part in a quantity greater than 500

4
Introduction

• Originally focused on keys, the theory of
  integrity has evolved to focus on constraints in
  general
• An integrity constraint is a boolean expression
  associated with a database that is required to
  evaluate at all times to true
• RDBMS must monitor updates that might violate the
  constraints and reject those that do
• An integrity constraint can regarded as a formal
  expression of a business rule
• Constraints may be a priori or a posteriori

5
A Priori vs a Posteriori Constraints

• Type implies an a priori constraint
• Since every attribute of every relvar is of some
  type, the collection of types is a priori for the
  relvar
• Business rule constraints of the sort that are
  represented by uniqueness and value constraints,
  are a posteriori, that is, a result of decisions
  after the fact

6
Introduction (Cont.)

• The general formulation for a relvar constraint
  is as follows If a certain tuple appears in a
  certain relvar then that tuple satisfies a
  certain condition
• This applies equally to value constraints,
  uniqueness constraints and key constraints
• More generally, if certain tuples appear in
  certain relvars then those tuples satisfy a
  certain condition

7
Key Constraint Formal Definition Beginning

• FORALL X ? S, xn ? NAME,
• xt ? INTEGER, xc ? CHAR,
• Y ? S, yn ? NAME,
• yt ? INTEGER, yc ? CHAR
• (IF S, x, SNAME xn, STATUS xt,
• CITY xc ? S AND
• S, y, SNAME yn, STATUS yt,
• CITY yc ? S

8
Key Constraint Formal Definition Conclusion

• THEN (IF x y
• THEN xn yn, AND
• xt yt, AND
• xc yc ) )
• This expresses that S is a superkey, and
  possibly a candidate key

9
Predicates and Propositions

• An expression is a predicate, and its variables
  are parameters to the predicate
• When we instantiate the variables, we are passing
  arguments to the predicate, and so turning it
  into a proposition, which is either true or false
• A constraint is an expression, and therefore a
  predicate, which is checked by passing it
  arguments, and evaluating the proposition to be
  true or false

FORALL s ?S, sn ? NAME, st ? INTEGER, sc
?CHAR( IF S s, SNAME sn, STATUS st, CITY
sc ? S THEN st gt 1 AND st lt 100 )
10
Checking the Constraints

• Constraints should be checked immediately before
  attempting any insert or update or delete
• This is equally true from an implementation
  perspective and from the model
• To do otherwise is inefficient, and violates the
  Golden Rule
• Golden rule no update operation must ever assign
  to any database a value that causes its database
  predicate to evaluate to false

11
Internal vs. External Predicates The Closed
World Assumption

• Internal predicates are those understood and
  enforced by the system
• External predicates are those understood and
  implemented by the user
• Internal predicates should reflect external
  predicates
• The Closed World Assumption If an otherwise
  valid tuple does not appear in a relvar, its
  corresponding proposition is false

12
Correctness vs. Consistency

• The Closed World Assumption is logically valid,
  but is unenforceable by the system
• External predicates are not understood by the
  system therefore the system can enforce
  consistency, but not truth
• The external predicate for a relvar is its
  intended interpretation
• Thus a database may be populated by valid but
  false propositions
• Correctness implies consistency, and
  inconsistency implies incorrectness
• A database is correct iff it fully reflects the
  true state of affairs in the real world

13
A Constraint Classification Scheme
14
Type Constraints

• A type constraint is a definition of the set of
  values that constitute a given type
• e.g. TYPE WEIGHT POSSREP D DECIMAL(5,
  1) CONSTRAINT D gt 0.0 and D lt 5000.0
• Type constraints can always be thought of as
  being checked during the execution of some
  selector invocation
• e.g. WEIGHT(7500.0)
• Type constraints are always checked immediately,
  and no relvar can ever acquire a value for any
  attribute in any tuple that is not of the
  appropriate type
• Type constraints can be dropped only by dropping
  the type iteself

15
Attribute Constraints

• An attribute constraint (a priori constraint) is
  a constraint on the values a given attribute is
  permitted to assume
• e. g. S, SNAME, SCITY, CITY are constrained to
  be of types S, NAME, INTEGER, and CHAR,
  respectively
• An attribute constraint can be dropped only by
  dropping the attribute itself

VAR S BASE RELATION S S, SNAME NAME,
STATUS INTEGER, CITY CHAR
16
Relvar and Database Constraints

• A relvar constraint is a constrain on the values
  a given relvar is permitted to assume (involve
  only one relvar)
• The relvar predicate for a relvar R is the
  logical AND or conjunction of all of the
  constraints that apply to R
• e.g. the relvar predicate for S is the
  conjunction of constraints 1, 2, 4, 5, and 6, and
  the relvar predicate for SP is the conjunction of
  constraints 5 and 6
• A database constraint is a constraint on the
  values a given database is permitted to assume
  (involve two or more relvars)
• A database predicate is the conjunction of all
  predicates of its relvars

17
The Golden Rule

• First version no update operation must ever
  assign to any relvar a value that causes its
  relvar predicate to evaluate to false
• Final version no update operation must ever
  assign to any database a value that causes its
  database predicate to evaluate to false

18
Transition Constraints

• Transition constraints can apply to a database or
  a relvar, but not an attribute, or a type
• Transition constraints constrain certain actions,
  for example forbidding an update to change a
  status from married to never married
• If we have a way to refer within a single
  expression to both (a) the value of the variables
  in question before an arbitrary update and (b)
  the value of that same variable after that same
  update, then we have the means to formulate any
  desired transition constraint

19
Transition Constraints (Cont.)

• CONSTRAINT TRC1FORALL SX FOR ALL SX (SX.S ltgt
  SX.S OR SX.STATUS lt SX.STATUS)
• CONSTRAINT TRC2FORALL PX SUM(SPX WHERE SPX.P
  PX.P, QTY) lt SUM(SPX WHERE SPX.P PX.P,
  QTY)

20
Keys Topics

• Candidate Keys
• Superkeys
• Primary Keys
• Alternate Keys
• Foreign Keys
• Referential Integrity
• Referential Actions

21
Candidate Keys

• Let K be a set of attributes of relvar R. Then K
  is a candidate key for R iff it has both of the
  following properties
• Uniqueness No legal value of R ever contains
  two distinct tuples with the same value for K
• Irreducibility No proper subset of K has the
  uniqueness property
• Candidate key definition examples

VAR S BASE RELATION S S, SNAME NAME,
STATUS INTEGER, CITY CHAR KEY S
VAR SP BASE RELATION S S, P P,
QTY QTY KEY S, P
Composite candidate key
Simple candidate key
22
More Candidate Key Definition Examples
VAR ELEMENT BASE RELATION NAME NAME,
SYMBOL CHAR, ATOMIC INTEGER KEY NAME
KEY SYMBOL KEY ATOMIC
VAR MARRIAGE BASE RELATION HUSBAND NAME,
WIFE NAME, DATE DATE KEY HUSBAND, WIFE
KEY HUSBAND, DATE KEY WIFE, DATE

Note that a candidate key definition is really
just shorthand for a certain relvar constraint
All relvars, including views, have candidate keys
23
Superkey

• A superset of a candidate key is a superkey
• A superkey has the uniqueness property, but it
  does not have the irreducibility property
• e.g. S, CITY is a superkey for S
• If SK is a superkey for R and A is an attribute
  of R, then the functional dependency SK ? A
  necessarily holds in R (see chapter 11)
• There is no implication there must be an index
  (or any other special physical access path) on a
  candidate key

24
Primary Keys and Alternate Keys

• If a relvar has two or more candidate keys, one
  must be chosen to be the primary key
• The others are then designated alternate keys
• This choice is logically arbitrary
• Logically, candidate keys are of paramount
  importance choosing the primary key is ancillary

25
Foreign Keys

• Loosely, a foreign key is a set of attributes of
  some relvar R2 whose values are required to match
  values of some candidate key of some relvar R1
• Formal definition A foreign key in R2 is a set
  of attributes of R2, say FK, such that
• There exists a relvar R1 (R1 and R2 not
  necessarily distinct) with a candidate key CK
• It is possible to rename some subset of the
  attributes of FK, such that FK becomes FK and
  FK and CK are of the same tuple type
• For all time, each value of FK in the current
  value of R2 yields a value for FK that is
  identical to the value of CK in some tuple in the
  current value of R1 (the converse is not a
  requirement)

26
Notes

• An FK value represents a reference to the tuple
  containing the matching CK value (the referenced
  tuple)
• The constraint that values of FK must match
  values of CK is known as referential constraint
• The problem of ensuring that the database does
  not include any invalid foreign key values is the
  referential integrity problem
• Referential diagram

Referential path
SP
S
P
R(n-1)
Rn

R1
R2
Referential cycle
S
P
SP
S
P
R(n-1)
Rn

Rn
R1
27
Foreign Key Examples

• VAR SP BASE RELATION FOREIGN KEY S
  REFERENCES S
• VAR EMP BASE RELATION EMP EMP, , MGR_EMP
  EMP, FOREIGN KEY RENAME MGR_EMP AS EMP
  REFERENCES EMP
• FOREIGN KEY ltitem commalistgt REFERENCES
  ltrelvargt
• Each item is an attribute name of the referencing
  relvar or an RENAME expression

28
Foreign Keys Referential Integrity

• The database must not contain any unmatched
  foreign key values
• Originally foreign keys were defined in terms of
  the primary key in the referenced relvar, but
  this qualification is superfluous, although
  perhaps desirable in practice
• The relationship in one directional it is not a
  requirement that every referenced candidate key
  value appear in the foreign keys of the referrer

29
Foreign Keys Referential Actions

• DELETE may violate the referential integrity
  constraint
• Consider DELETE S WHERE S S(S1) NO
  ACTION
• If only delete S1 in S, there may be some
  shipments made by S1
• The system should perform an appropriate
  compensation action that will guarantee that the
  overall result still satisfy the constraint
• RESTRICT limits the action of the DELETE to just
  those tuples that do not have referring tuples in
  another relvar
• CASCADE broadcasts the DELETE to include any
  tuples that reference the affected tuples
• UPDATE requires similar behavior
• CASCADE/RESTRICT/NO ACTION apply to all relvars
  involved in a referential path

30
Triggers
31
Overview

• Declarative integrity support vs. procedural
  integrity support
• Triggered procedures are precompiled procedures
  that are stored along with the DB and invoked
  automatically whenever some specified event
  occurs
• Triggered procedures are not the recommended way
  to implement integrity constraints (harder to
  understand and harder to optimize)
• The applicability of triggered procedures is not
  limited to the integrity problem
• Alert the user if some exception occurs (part
  quantity goes below the danger level)
• Debugging, Auditing, performance measurement
• Carrying out compensating actions

32
Trigger Example

• CREATE VIEW LONDON_SUPPLIERAS SELECT S, SNAME,
  STATUSFROM SWHERE CITY London
• CREATE TRIGGER LONDON_SUPPLIER_INSERTINSTEAD OF
  INSERT ON LONDON_SUPPLIERREFERENCING NEW ROW AS
  RFOR EACH ROWINSERT INTO S (S, SNAME, STATUS,
  CITY)VALUES (R.S, R.SNAME, R.STATUS, London)

33
Notes

• CREATE TRIGGER specifies an event, a condition,
  and an action
• The event is an operation on the DB
• INSERT, DELETE, UPDATE, COMMIT, reaching a
  specified time of day, exceeding a specified
  elapsed time, violating a specified constraint
• The condition is a boolean expression that has to
  evaluate to TRUE in order for the action to be
  executed (if no condition, always TRUE)
• The action is the triggered procedure
• BEFORE, AFTER, or INSTEAD OF the specified event
• Can be performed on FOR EACH ROW, or FOR EACH
  STATEMENT
• There will be a way for the action be refer to
  the data as it is both before and after the
  specified event has occurred

34
Notes (Cont.)
Declarative solutions, when available, are always
to be preferred to procedural ones

• Event condition triggering event event
  condition action trigger
• Triggers are also known as event-condition-action
  rules (ECA rules)
• A DB that has associated triggers is sometimes
  called an active database
• Use of triggers can be problematic in practice
• If the same event causes several distinct
  triggers to fire, then the sequence in which they
  do so might be important and undefined
• Trigger chain (T1 ? T2 ? T3)
• Trigger T may cause itself to fire again,
  recursively

35
MySQL Triggers

• Trigger definition
• CREATE TRIGGER lt trigger name gt BEFORE AFTER
  INSERT UPDATE DELETE ON ltbase table
  namegtFOR EACH ROWlttriggered SQL statementgt
• lttrigger namegt table_name _
  trigger_type_abbreviation
• t26_bu
• Does not support for each statement triggers
• Drop trigger
• DROP TRIGGER lttrigger namegt

36
MySQL Triggers (Cont.)

• Transition variables
• NEW OLD.column_name
• With INSERT, only NEW is legal. With DELETE, only
  OLD is legal. With UPDATE, both NEW and OLD are
  legal.

37
MySQL Triggers Example

• Create Table
• CREATE TABLE T22 (S1 INTEGER UNSIGNED NOT
  NULL,S2 INTEGER UNSIGNED,PRIMARY KEY(S1) )
• Create Trigger
• CREATE TRIGGER T22_BIBEFORE INSERT ON T22FOR
  EACH ROWBEGIN SET _at_x 'Trigger was
  activated!' SET NEW.S2 NEW.S111END
• INSERT INTO T22 (S1) VALUES (32)

38
MySQL Triggers Example (Cont.)

• Implementing a CHECK constraint
• CREATE TABLE t25 (s1 INT, s2 CHAR(5), PRIMARY KEY
  (s1))
• CREATE TRIGGER t25_bi BEFORE INSERT ON t25 FOR
  EACH ROW IF LEFT(NEW.s2,1)ltgt'A' THEN SET
  NEW.s10 END IF
• CREATE TRIGGER t25_bu BEFORE UPDATE ON t25 FOR
  EACH ROW IF LEFT(NEW.s2,1)ltgt'A' THEN SET
  NEW.s10 END IF
• Test
• INSERT INTO t25 VALUES (0,'a') / priming the
  pump /
• INSERT INTO t25 VALUES (5,'b') / gets error
  '23000' /

39
SQL Facilities
40
Overview

• SQL does not support type constraints, nor
  attribute constraints, nor relvar constraints,
  nor database constraints
• SQL supports base table constraints, which are a
  superset of a subset of relvar and database
  constraints
• No view constraints
• SQL support general constraints called assertions
• SQL has no direct support for transition
  constraints, which can be implemented
  procedurally via triggers

41
Base Table Constraints

• Specified on either CREATE TABLE or ALTER TABLE
• Support candidate key constraints, foreign key
  constraints, and check constraints
• Candidate key
• PRIMARY KEY (ltcolumn name commalistgt) (at most
  one)
• Each specified column is additionally assume to
  be NOT NULL
• UNIQUE ( ltcolumn name commalistgt) (any number)

42
Base Table Constraints (Cont.)

• Foreign key
• FOREIGN KEY (ltcolumn name commalistgt)REFERENCES
  ltbase table namegt (ltcolumn name commalistgt)
  ON DELETE ltreferential actiongt ON UPDATE
  ltreferential actiongt
• lt referential actiongt NO ACTION (default),
  RESTRICT, CASCADE, SET DEFAULT, SET NULL
• The second ltcolumn name commalistgt is required if
  the foreign key references a candidate key that
  is not a primary key (matching on the basis of
  column position within the commalist

43
Base Table Constraints (Cont.)

• Check Constraints always true for an empty base
  table
• CHECK ( lt bool exp gt )
• Not limited to referring just to the involved
  base table, but can instead refer to any
  accessible portion of the DB
• Example
• CREATE TABLE SP(S S NOT NULL, P P NOT NULL,
  QTY QTY NOT NULL, PRIMARY KEY ( S, P ),
  FOREIGN KEY ( S ) REFERENCES S ON DELETE
  CASCADE ON UPDATE CASCADE, FOREIGN KEY (
  P ) REFERENCES P ON DELETE CASCADE ON
  UPDATE CASCADE,CHECK (QTY gt QTY (0) and QTY lt
  QTY (5000) ) )
• NOT NULL is a shorthand for CHECK (ltcolumn namegt
  IS NOT NULL)

44
General Constraints Assertions

• Assertion definition
• CREATE ASSERTION ltconstraint namegt CHECK (
  ltbool expgt )
• Drop a assertion DROP ASSERTION ltconstraint
  namegt
• Examples
• CREATE ASSERTION SC1 CHECK( NOT EXISTS (SELECT
  FROM S WHERE S.STATUS lt 10 OR S.STATUS
  gt 100 ))
• CREATE ASSERTION SC4 CHECK ( UNIQUE (SELECT S.S
  FROM S ) )
• CREATE ASSERTION SSP6 CHECK( NOT EXISTS ( SELECT
  FROM S, SP WHERE S.STATUS lt 20 AND
  S.S SP.S AND SP.QTY gt QTY (500) ) )

45
Constraint and View

• CREATE VIEW LONDON SUPPLIER AS SELECT S,
  SNAME, STATUS FROM S WHERE CITY London
• UNIQUE (S) is an invalid SQL specification, but
• We can specify the general constraint to achieve
  the same purpose
• CREATE ASSERTION LSK CHECK( UNIQUE (SELECT S
  FROM LONDON_SUPPLIER ) )

46
Deferred Checking

• In the textbooks scheme, all constraints are
  check immediately
• In SQL, constraints can be defined to be
  DEFERRABLE or NOT DEFERRABLE
• If a constraint is DEFERRABLE, it can further be
  defined to be INITIALLY DEFERRED or INITIALLY
  IMMEDIATELY, which defines its state at the
  beginning of each transaction
• NOT DEFERRABLE constraints are always checked
  immediately
• DEFERRABLE constraints can be dynamically
  switched on and off
• SET CONSTRAINTS ltconstraint name commalistgt
  ltoptiongt
• SET CONSTRAINTS SSP5, SSP6 DEFERRED

47
Deferred Checking (Cont.)

• DEFERRABLE constraints are checked only when they
  are in the IMMEDIATE state
• Setting a DEFERRABLE constraint into the
  IMMEDIATE state causes the constraint to be
  immediately checked
• If the check fails, the SET IMMEDIATE fails
• COMMIT forces a SET IMMEDIATE for all DEFERRABLE
  constraints if any integrity check then fails,
  the transaction is rolled back

48
Deferred Checking

• SQL constraint verification can be DEFERRABLE or
  NOT DEFERRABLE
• NOT DEFERRABLE means the check will be immediate
• DEFERRABLE offers the option of
• SET IMMEDIATE
