Title: Home Networking activities in TTC


1

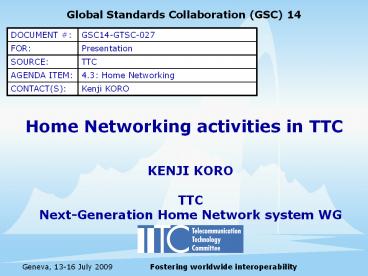

Home Networking activities in TTC
Global Standards Collaboration (GSC) 14
DOCUMENT GSC14-GTSC-027
FOR Presentation
SOURCE TTC
AGENDA ITEM 4.3 Home Networking
CONTACT(S) Kenji KORO
  • KENJI KORO
  • TTC
  • Next-Generation Home Network system WG

2
Highlight of Current Activities
  • Standardization about Home Networking (HN) in
    Japan
  • Now on initial stage of standardization
  • QoS Investigated several existing
    recommendations
  • Data Model Analyzed dependencies on applications
  • Operation Analyzed the functional requirement
  • Research Applications realized in NGN
  • Research the physical interface including 802.XX,
    access point base station(Femto) and ZigBee.
  • Plan to submit proposal to ITU-T SG15, SG16,etc.
  • Cooperation with the related SDOs and Fora
  • ITU-T, HGI, BB-Forum, DLNA, UPnP, etc.
  • Cooperation in Japan
  • Next Generation IP Network Promotion Forum in
    Japan
  • Home Network WG Research technical demands
  • HATS1 in Japan
  • Established new WG for interconnection
    verification

Note1 Non profit organizations for
inter-operability http//www.ciaj.or.jp/hats/e/wha
t/about.html
3
Strategic Direction
  • Architectures have been proposed by several
    bodies such as ITU and Fora.
  • But there are no consistent suite of
    Recommendations from WAN to HN dealing with the
    following items.
  • Maintenance (In case of the problems or failure
    has occurred)
  • Device setting
  • Device composition confirmation
  • In Layer 2/3, there are many candidate protocols.
  • But for the management of home device, some
    modification will be required.
  • Isn't cooperation necessary on this respect among
    PSOs?

4
Challenges
  • Conduct systematic technical test composed of
    WAN, Access, Home-GW, and Intra-HN in close
    cooperation with Fora in Japan.
  • Operation from WAN to HN
  • Energy saving in the HN
  • Home Security
  • Cable application
  • Confirm total interoperability.
  • Examination of device list in HN
  • Examination of a model in HN
  • Cooperation items with other standardization
    bodies
  • Data models
  • Appliance device control (TV etc.)

5
Next Steps/Actions
  • Define the control and operation specifications
    for related use cases.
  • NGN application
  • Contents transmission/reception
  • Click to Call
  • Multi-media communication
  • Etc.
  • Network consumer electronic devices management
  • Maintenance
  • Device setting
  • Device composition confirmation
  • Confirm total interoperability.
  • WAN to HN operational interoperability test in
    HATS

6
Supplementary Slides
7
The control and operation in HN
  • This figure shows the control and operation in HN

AGW Access Gate WAY
PC note
wifi port
Support Center
Visible composition image
AGW
NW
port2
port4
port1
DVD recorder
port6
port3
Network Devices
TV
port4
SONY PS3
Range of examination of standardization
Nintendo Wii
User Operations
Far end services
Grasp of connected equipment/composition
Connected confirmation
Maintenance (In case of the problems or failure
has occurred)
Quality measurement
Device setting
First Target
8
Requirement for HN/ Technology
Service requirements Service requirements END-Devices (including AGW) Network device (including AGW)
Grasp of connected equipment/ composition Specific of end terminal and LAN equipment Notification of equipment information Collection/accumulation of equipment information Notification of equipment information Collection/accumulation of equipment information
Grasp of connected equipment/ composition Specific of HN composition Notification of composition information Notification of composition information
For trouble/ prevention Connected confirmation Responds to connected confirmation. Confirmation of connectivity such as rink information. Responds to connected confirmation. Confirmation of connectivity such as rink information.
For trouble/ prevention Watch and abnormal detection Notification when abnormality occurs Acknowledge to the polling demand. Notification when abnormality occurs Acknowledge to the polling demand.
Device setting Setting, operation and confirmation Responds to operation (log) confirmation. The event (log) to AGW. Responds to operation (log) confirmation. The event (log) to AGW.
Device setting Setting and initialization, firmware update and restart The command is executed, and the result is returned. The command is executed, and the result is returned.
Quality measurement Quality measurement Send quality value confirmation. Acknowledge to the quality value confirmation. Packet count at each port/flow Field strength/modulation method (For the wireless and PLC) Bandwidth etc. Send quality value confirmation. Acknowledge to the quality value confirmation. Packet count at each port/flow Field strength/modulation method (For the wireless and PLC) Bandwidth etc.
Priority
9
L2/L3 Protocols
Functional Requirement Candidate Protocols Candidate Protocols
Functional Requirement L2(To LAN devices) L3(End Devices)
Notification of equipment information Notification of MAC address table LLTD (IEEE) LLDP (MS) UPnP or Enhancing NetBIOS or Enhancing DHCP Vendor code Enhancing ICMP echo body Enhancing TR-069 or Enhancing SNMP
10
PHY/MAC layer Technologies
Bit Rate Multipoint Cable Cable Cable Cable
Bit Rate Multipoint Coax. Cable Power line Phone line Ether Cable
G.hn 1Gbps (Coax, Phone ) 300Mbps (Power Line) YES YES YES YES YES
HomePlug AV 300Mbps YES YES
HD PLC 300Mbps YES YES
UPA 300Mbps YES YES
MoCA1.1 250Mbps YES 1x16 points YES
HPNA3.0 320Mbps YES YES YES
Ethernet 1Gbps No (Use HUB) YES
