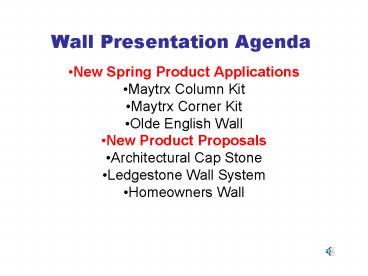

Wall Presentation Agenda

1
Wall Presentation Agenda

• New Spring Product Applications
• Maytrx Column Kit
• Maytrx Corner Kit
• Olde English Wall
• New Product Proposals
• Architectural Cap Stone
• Ledgestone Wall System
• Homeowners Wall

2
Wall Presentation Agenda

• New Spring Product Applications
• Maytrx Column Kit
• Maytrx Corner Kit
• Olde English Wall
• New Product Proposals
• Architectural Cap Stone
• Ledgestone Wall System
• Homeowners Wall

3
(No Transcript)
4
Smooth Finish
NO CUTTING! ONE STONE SYSTEM 4 PIECES PER
COURSE SIMPLE AS LEGO BLOCKS EVERYTHING ON ONE
PALLET
Textured Finish
Place smooth against smooth sides Makes a 22"x
22" Column
Textured Finish
Smooth Finish
Textured Finish
Place smooth against smooth sides Makes a 22"x
22" Column
Textured Finish
Smooth Finish
5
Textured Finish
Smooth Finish
6
Place smooth against smooth sides Makes a 22"x
22" Column
Textured Finish
Smooth Finish
FIRST COURSE
SECOND COURSE
7
How-To 22X 22 Columns Build a Base of Crushed
stone in accordance with the information provided
in the Maytrx Brochure or on the web at
maytrx.com. The Maytrx Corner Kit provides
everything needed for a 4 high Column with
enough material to place one course below ground.
If the columns are to be lighted make provisions
for conduit pipe or wire according to local
building code at this time. Place the stones as
illustrated above in First Course using a
square and level to insure the first course is
level, plum and square. Once the first course is
complete, each subsequent course will be laid
alternating the pattern of First Course and
Second Course. Use a level inside the column in
the hole formed for wire access to check for
plum. The Maytrx Column Kit includes 9 sets
(courses) of 6 stones that will produce a 4
column and burry one course in the ground for
stability. It is suggested SRW pavingstone
adhesive be used on edges where the stones meet,
be careful not to allow adhesive to be viewed
from the face of the stone.
8
Basic Instructions

• If your project requires columns higher than 4
  purchase additional Column kits. The Kit includes
  36 pieces (8 pieces per ft of 22x 22 Column).
  Maytrx Column Block are not normally compatible
  in a wall with Maytrx 6 Block but may be used as
  a column in a wall.
• Note Maytrx Block are 10 deep, Column Block are
  8 deep, both stones are 6 high. Use the
  Illustration below as a guide when building low
  or freestanding walls that have an integrated
  Column that you wish to make utilizing the Column
  Block Kit. Please consult a licensed Professional
  on any Retaining walls that exceed 30 (see
  Maytrx guidelines at maytrx.com).
• A 22x 22 Column (Pilaster) can be built by
  cutting the column block on every other row to
  integrate with the wall. See the Illustrations in
  the pages that follow for instructions.
• WARNING Retaining Walls over 30 require the
  services of a Licensed Engineer Please read the
  basic Installation directions at maytrx.com.

9
FIRST COURSE (CUTS)
Column in Wall (intigrated)
Cut Column Block Here
On this course cut two column block to 8 long,
This is all that is needed. This course will be
repeated every other course.
SECOND COURSE (CUTS)
On this course 2 stones are cut to 4 long shown
in yellow above. This is all that is needed. This
course will be repeated every other course.
10
FIRST COURSE (CUTS)
Cut Column Block Here
On this course cut one column block to 8 long,
Cut a Second Column Block to 4 Long This is all
that is needed. This course will be repeated
every other course.
SECOND COURSE (CUTS)
On this course 2 stones are cut to 4 long shown
in yellow above. This is all that is needed. This
course will be repeated every other course.
11
Cut 2 from the 14 Column Stone
By adding 4 additional stones cut at 12 to
provide smooth sides we create a large Column by
using the Basic Column Kit.
12
26x 28 x 3 Column Cap made with Maytrx Cap
Stones The 26x 26 Cap can be made from 9
Maytrx Cap stones. Each stone will have a
finished size of 8.3x8.3 by using a combination
of splitting or cutting each stone. The stones
are made in three different patterns. It is
suggested that all stones be glued in final
position Top Cap An optional finish Top Cap can
be made with 4 Maytrx Cap stones. Each stone will
have a finished size of 10 x 10 by using a
combination of splitting and cutting each stone.
13
Additional Options for Column Cap and Top The
drawings below depict a Arc Cap used to form a
Column Top. There are various products available
to finish a Column including Natural Stone and
many Precast products. There should be a reveal
(distance of Cap overhang) that depends on the
width of the column. The Column Built with the
Maytrx Column Kit is 22X 22 and anywhere from
1.5 to 2 reveal seams best. That means the
outside dimension of your column Cap should be
between 25x25 and 26x26 (221.51.525),
(222226)
Additional Details The Cap of the Column may be
enriched by adding another layer of Maytrx Cap
Stones to increase the height of the Cap
Treatment. Note this illustration uses
contrasting colors to show detail.
Precast Concrete Column Products
Arc Cap with Olde English (By others)
14
(No Transcript)
15
Lighted Columns
16
Wall Presentation Agenda

• New Spring Product Applications
• Maytrx Column Kit
• Maytrx Corner Kit
• Olde English Wall
• New Product Proposals
• Architectural Cap Stone
• Ledgestone Wall System
• Homeowners Wall

17
(No Transcript)
18
BBQ
Special Projects that need extra corners
Top View
As a textured top and front (Brickcourse) for
steps, patios and as a cap
19
Wall Presentation Agenda

• New Spring Product Applications
• Maytrx Column Kit
• Maytrx Corner Kit
• Olde English Wall
• New Product Proposals
• Architectural Cap Stone
• Ledgestone Wall System
• Homeowners Wall

20
These Olde English pages are available on
maytrxpyzique.com
12x 8x 4 30 lbs.
21
These Olde English pages are available on
maytrxpyzique.com
22
These Olde English pages are available on
maytrxpyzique.com
23
Olde English Wall is easy to use as a
freestanding column. After building the base to
recommended specifications lay the stones as
shown below. The Cobble stones laid in this
pattern will make a 20x20 column without
cutting. Each course should overlap the vertical
joints from the stones below (see typical second
course below).
First Course (typical)
These Olde English pages are available on
maytrxpyzique.com
Second Course (typical)
Pilaster in wall 12x20 (with hole for electric
wire)
Cobble Wall is easy to use as a freestanding
column. After building the base to recommended
specifications lay the stones as shown below. The
Cobble stones laid in this pattern will make a
20x20 column without cutting. Each course
should overlap the vertical joints from the
stones below (see typical second course below).
12x 8x 4 30 lbs.
First Course (typical)
Second Course (typical)
24

• Installation Recommendations
• 30" maximum wall height with 3" below grade for
  retained situations or consult a licensed
  professional engineer for your particular
  application.
• Base should be 14"-16" wide by 6" deep and well
  compacted.
• For base and backfill, use multiple sized crushed
  stone ranging from 1/4" - 1 1/2" in size with
  less than 10 fines.
• Lay a flexible drain pipe the length of the wall
  to relive hydrostatic water pressure from
  building up behind a retaining wall. (see
  illustration below).
• Offset vertical joints of units to maximize wall
  strength. (see A below)
• When stones are stacked vertically on 4" side,
  another stone should be placed behind it to
  create an 8" wall thickness. (see B below)
• Vertical stones exposing the 4 face should
  protrude the full 12 toward the bank in
  retaining wall situations (see C below)
• Filter fabric can be used to separate clean
  gravel backfill from topsoil.
• Consider using integrated columns or pilasters
  for strength in free-standing and retaining
  walls. (see picture in lower left below)
• Use SRW masonry adhesive or equivalent to adhere
  at least the top two rows.

These Olde English pages are available on
maytrxpyzique.com
Olde EnglishWall
25
Wall Presentation Agenda

• New Product Proposals
• Architectural Cap Stone
• Ledgestone Wall System
• Homeowners Wall

26
(No Transcript)
27
(No Transcript)
28
Architectural Cap Stone
29
Architectural Cap Stone
30
Architectural Cap Stone
See Maytrx Column Block HOW-TO at
Maytrxpyzique.com There is a link on the first
page
31
Wall Presentation Agenda

• New Product Proposals
• Architectural Cap Stone
• Ledgestone Wall System
• Homeowners Wall

32
CONCEPT NOTES Three Stone Wall System Kit
Columns and Pilasters are shown Corners are
cubed in Pallet One side textured Ledgestone One
side textured Olde English Columns Textured
Ledgestone Similar in face size to Paver System
based on 8 modules since the depth (8) will
become a modular size in columns. Example 12X8
8X8 4X8 Dimensions 12X8X8, 8X8X8, 4X8X8 Olde
English would work with this wall, change in
shoes or head would make this pattern in Olde
English texture also. Maytrx, Arc or Olde English
for Cap
12X8 8X8 4X8
33
Same Column Size as Olde English Arc Cap For
Column Cap
34

• Details of the Ledgestone Wall concept
•
• Possible to manufacturer on the Tiger, imprinting
  on the Face as well as one side on some block for
  premade corner block in the cube or removed
  during tumbling.
• Initial concept is to create a new wall system
  that mimics the shapes of the paving stones, so
  that a contractor that realizes the patterns
  available to the pavers could use the same in a
  wall.
• No splitter needed.
• Ledgestone Wall would be available in Ledgestone
  Texture as well as Barrel Tumbled.
• Alternative Distressed on the face only (XT
  style)
• The block at 8" deep would be about 72 lbs per sq
  ft (a 8x12 block would be 54 lbs, a 8x8 block
  would be 32 lbs)
• If corners were not an issue Armortech could be
  used on the face..

35
Wall Presentation Agenda

• New Product Proposals
• Architectural Cap Stone
• Ledgestone Wall System
• Homeowners Wall

36
12
8
6
Alignment Knobs
Texture would be Soft Split similar to Country
Manor Or Split Face similar to Maytrx Split Face
Block are laid with ALIGNMENT KNOBS Down
37
Alignment Knobs
Maytrx Cap
Drainage pipe
