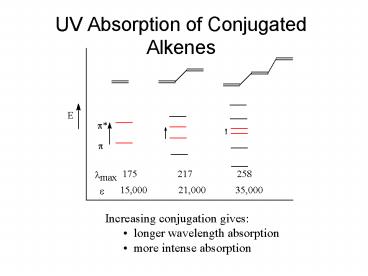

UV Absorption of Conjugated Alkenes

1
UV Absorption of Conjugated Alkenes

• Increasing conjugation gives
• longer wavelength absorption
• more intense absorption

2
Aromatic Compounds
Substituents shift 255 nm band to higher
wavelength
3
UV-Vis

• Which would absorb a longer wavelength of light,
  1,4-pentadiene or 1,3-pentadiene?

Conjugated
Isolated
178 nm
223 nm
4
Diels-Alder Reactions
5
(No Transcript)
6
Why?
The diene is not electron rich enough because it
has an electron withdrawing carbonyl on it.
7
(No Transcript)
8
Draw the product (A) of the following Diels-Alder
reaction. A is a key intermediate in the
synthesis of the addicting pain reliever
morphine, isolated form the opium poppy.
The Opium Poppy
What is A?
9
Opium continued. . .
such a good dienophile?
Why is
10
Cortisone (a hormone responsible for the control
of inflammation and the regulation of
carbohydrate metabolism) can be synthesized using
a Diels-Alder reaction along the synthetic
pathway. Draw the diene and dienophile used to
make the intermediate. An arrow shows the
6-membered ring made in the reaction.
Cortisone
Cortisone
11
Youll think Im making these compounds up, but
theyre real. The following reactions have been
used to synthesize dieldrin and aldrin (named for
Diels and Alder), two pesticides having a similar
story to DDT. Identify X, Y, and Z in the
reaction scheme.
12
The compound shown below is the product formed in
a Diels-Alder reaction between methyl acrylate
(CH2CHCO2CH3) and a diene. Draw the structure
of the diene. (2.5 pts)
