Title: Breadboarding Suggestions


1

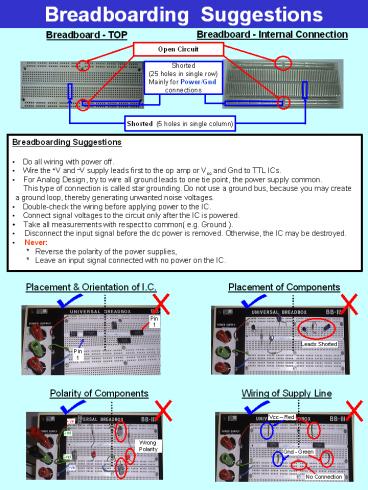

Breadboarding Suggestions
Breadboard - TOP
Breadboard - Internal Connection
Open Circuit
  • Breadboarding Suggestions
  • Do all wiring with power off.
  • Wire the V and V supply leads first to the
    op amp or Vcc and Gnd to TTL ICs.
  • For Analog Design, try to wire all ground
    leads to one tie point, the power supply common.
  • This type of connection is called star
    grounding. Do not use a ground bus, because you
    may create a ground loop, thereby generating
    unwanted noise voltages.
  • Double-check the wiring before applying power
    to the IC.
  • Connect signal voltages to the circuit only
    after the IC is powered.
  • Take all measurements with respect to common(
    e.g. Ground ).
  • Disconnect the input signal before the dc
    power is removed. Otherwise, the IC may be
    destroyed.
  • Never
  • Reverse the polarity of the power
    supplies,
  • Leave an input signal connected with
    no power on the IC.

Placement of Components
Ve
Gnd
Gnd
-Ve
