CSCI 435 Compiler Design

1

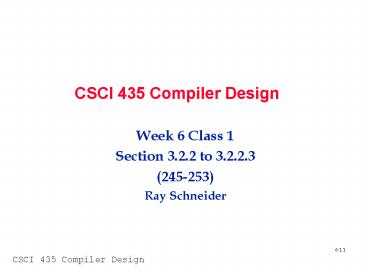

CSCI 435 Compiler Design

• Week 6 Class 1
• Section 3.2.2 to 3.2.2.3
• (245-253)
• Ray Schneider

2
Topics of the Day

• Symbolic Interpretation
• Simple Symbolic Interpretation
• Full Symbolic Interpretation

3
Symbolic interpretation

• Upon execution, control follows one possible path
  through the control flow graph
• Code executed at nodes represents the RUN-TIME
  semantics of the node NOT the compile time
  context relations.
• Ex. attribute evaluation code is concerned with
  the AST and distribution of information about the
  syntax AT RUN TIME an if-statement is only about
  a JMP to the THEN-part or ELSE part depending on
  the state of the condition just computed

4
Compile-Time versus Run-Time interests
If_statement (INH successor, SYN first)? 'IF'
Condition 'THEN' Then_part 'ELSE' Else_part 'END'
'IF' ATTRIBUTE RULES SET IF_statement
.first TO Condition .first SET Condition
.true successor TO Then_part .first SET
Condition .false successor TO Else_part .first
SET Then_part .successor TO If_statement
.successor SET Else_part .successor TO
If_statement .successor
AST
Run-time Path
5
Run-time behavior depends on variables

• Much contextual information about variables can
  be deduced statically at compile time by
  simulating the run-time process using a technique
  called
• SYMBOLIC INTERPRETATION or
• SIMULATION ON THE STACK
• We attach a Stack Representation to each arrow in
  the Control Flow Graph
• Compile time representation of the run-time stack
  holds an entry for each identifier visible at
  that point in the program
• Mostly interested in Variable and Constants

6
Stack representations in CFG of an if-statement
true
condition y gt 0
x is initialized and y has the value 5
7
Symbolically interpret an if statement

• two parameter provided a Stack Representation,
  and an If node1) symbolically interprets the
  condition (new stack with condition on top), 2)
  condition unstacked and used to get stack
  representation for end of then/else clause, 3)
  routine merges stack representation

FUNCTION Symbolically interpret an if statement
( Stack representation, If node ) RETURNING a
stack representation SET New stack
representation TO Symbolically interpret a
condition ( Stack representation, If
node .condition ) Discard top entry
from New stack representation RETURN Merge
stack representations ( Symbolically
interpret a statement sequence ( New
stack representation, If node .then part
), Symbolically interpret a statement
sequence ( New stack representation, If
node .else part ) )
8
reality

• example is oversimplified, more details are
  needed in actual code
• ex. a check for the presence of an ELSE part
  since statement could be an IF...THEN only
• might need to copy the stack representation to
  pass a copy to each branch
• Symbolic Interpretation was already in use in the
  1960's for type checking in Algol 60 (Naur 1965)
• Next we'll look at checking for uninitialized
  variables using two variants of symbolic
  interpretation
• SIMPLE Symbolic Interpretation (works for
  structured programs and simple properties)
  L-attributes
• FULL Symbolic Interpretation (more general)
  works for general attribute grammars and
  L-attributed grammars.

9
Simple Symbolic Interpretation 1

• Checking for the use of uninitialized variables
• make a compile time representation of the local
  stack of a routine (possibly including its
  parameter stack)
• follow representation through the entire routine
• (representation can be a linked list of name,
  property pairs called a PROPERTY LIST)
• List starts empty or initialized with
  parameters with properties
• IN parameters Initialized
• INOUT parameters Initialized
• OUT parameters Uninitialized
• ALSO A RETURN LIST which combines the stack
  representations as found at return statements and
  routine exit

(247)
10
Simple Symbolic Interpretation 2

• Then we follow the arrows of the control flow
  graph updating our list as we go
• ex. At each node we do the appropriate thing
• meet a DECLARATION add declared name to list
  with its status, (initialized or uninitialized)
• IF FLOW OF CONTROL SPLITS a copy of the list
  follows each path, when the paths combine the
  lists are merged (generally merger is obvious
  except when a variable gets a value in one path
  and not the other then label it May be
  initialized)
• ASSIGNMENTset left variable to initialized and
  check variables on right side in the expression
  issuing an error if they are uninitialized or a
  warning if they May Be Initialized
• ROUTINE CALL different run-time stack (not our
  problem) but ought to check parameters
• FOR pass through bounds and loop initialization
  of control variable and make a copy of the list
  LOOP-EXIT LIST

11
Execution of a For_Loop
v
v
F T
v
from
F
from to
v
For_statement
Body
vcontrol variable
body exec 0 times
v
E F T
from to
v
End_for
E' F T
v
E F T
from to
from to
12
Get'in Out'ta Dodge

• When we find an exit_loop inside a loop we merge
  the list we've collected with the loop-exit list
  and continue with the empty list. (same with
  return statements and end of routine)
• If we find an exit_loop outside a loop we give an
  error.
• When all stack representations have been computed
  check return list to see if all OUT parameters
  have been defined. Error if not!
• Check all variables at the end of routine and any
  that are not initialized then give a warning

13
Extending the system

• once we have a system of symbolic interpretation
  in place it is relatively easy to extend
• extending the tracking variable, constant, field
  selector, etc.
• extend beyond status (ex. initialized) to value,
  range, set of possible values, a technique called
  CONSTANT PROPAGATION
• 2 Purposes 1) id variable used as constants, 2)
  get a tighter grip on tests in for- and while-
  loops, or last-def analysis (3.2.2.3)

int i 0 while (some condition) if (igt0)
printf("Loop reentered i d\n",i) i
//fig 3.46
If we try to eliminate the printf( ) because we
know i0 so the the first test fails we rather
obviously have concluded too much.
14
What kind of properties allow simple symbolic
interpretation to WORK?

• Four Requirements for it to work
• 1. Program must consist of flow-of-control
  structures with one entry point and one exit
  point only (Structured Programming)
• 2. Values of the property must form a lattice,
  i.e. values can be ordered in a sequence v1..vn
  such that no operation can transform vj to vi
  where iltj we will write viltvj for all iltj.
• 3. Result of merging two values must be at least
  as large as the smaller of the two values
• 4. Action taken on vi in a given situation must
  make any action taken on vj in that same
  situation superflueous, for viltvj

15
Why? 1

• 1. Program must consist of flow-of-control
  structures with one entry point and one exit
  point only (Structured Programming)
• this allows each control structure to be treated
  in isolation with the property being analyzed
  well-defined at both the entry point and the exit
  point of the structure
• Other three requirement allow us to ignore jump
  back to the beginning of the looping control
  structures

16
Why? 2

• vin is property at entrance to the loop and vout
  is property at loop exist
• (2) guarantees that vin?vout
• (3) guarantees that when we merge vout after
  first pass through the loop with vin to obtain
  the value vnew at the start of the second loop
  vnew?vin
• from (4) it follows that we don't need to perform
  a second scan or to consider the jump back
• consider the initialization example the values v1
  Uninitialized, v2 May be initialized, and v3
  Initialized fulfills the property since
  initialization can only progress left to right as
  a property
• If the four requirements are not satisfied then
  FULL SYMBOLIC INTERPRETATION is necessary.

17
Full Symbolic Interpretation

• Full Symbolic Interpretation consists of
  performing Simple Symbolic Interpretation
  repeatedly until no more changes in the values of
  the properties occur (a closure algorithm)
• GOTO statements cannot be handled by Simple
  Symbolic Interpretation (Requirement 1 is
  violated)
• For each label in the routine we need a separate
  list. They start off empty but every time we
  jump to the label we merge the present list with
  the label list and continue with an empty list
  but we're not done since the next pass might
  modify the list so we repeat until nothing
  changes. Then we can be certain we have found
  all paths by which a variable can be
  uninitialized at a particular label
• Closure Algorithm and have to postpone actions on
  initialization status until everything is known
• Simplegt single pass Fullgt multipass

18
Full Symbolic Interpretation as a Closure
Algorithm

• Data Definitions Stack representations, with
  entries for every item we are interested in.
• Initializations
• 1. Empty stack representations are attached to
  all arrows in the control flow graph residing in
  the threaded AST.
• 2. Some stack representations at strategic points
  are initialized in accordance with properties of
  the source language ex. the stack representation
  of input parameters are initialized to
  Initialized
• Inference rules For each node type, source
  language dependent rules allow inferences to be
  made, adding information to the stack
  representation on the outgoing arrows based on
  those on the incoming arrows and the node itself,
  and vice versa.

19
So where are we? ...

• Full symbolic interpretation removes almost all
  the requirements listed in the previous section
  but IT DOESN'T SOLVE ALL THE PROBLEMS
• ex. No guarantee that the algorithm terminates
• open ended algorithms like fig 3.46
• The complete set of possible values of a variable
  cannot be determined at compile time in all cases
• Approximation 1) a set of at most two values, or
  2) any value
• a little like the counting of primitive tribes 1,
  2, 3, many
• Read section 3.2.2.3 on Last-Def analysis
• involves collecting all the places where a
  variable is defined (used for code generation and
  in particular register allocation) also called
  REACHING-DEFINITIONS ANALYSIS

20
Homework for Week 8

• Bison Familiarization
• Read the entire 39 pages of "A Compact Guide To
  Lex and Yacc" // you can skim through it the
  first time
• THEN concentrate first on getting the lex example
  on page 10 running
• THEN after you have that running go on to
  Practice, Part 1 and strive to get the primitive
  calculator running (pages 14 through 17)

21
References

• Text Modern Compiler Design
