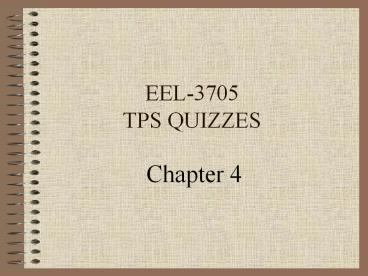

EEL-3705TPS QUIZZES

• Chapter 4

2
Quiz 4-1
3
Using the 2x4 Decoder shown below and two-input
OR gates, design a logic circuit which implements
4
Solution
5
Quiz 4-2
6
Using the 3x8 Decoder shown below and two-input
OR gates, design a logic circuit which implements
7
Solution
8
Solution
9
Quiz 4-3
10
Using the 3x8 Decoder shown below and two-input
OR gates, design a logic circuit which implements
11
Solution
12
Quiz 4-4a
13
Using 3x8 Decoders with Active LOW Enables and
NOT gates, design a logic circuit which
implements a 4x16 decoder
14
Solution
15
Quiz 4-4b
16
Using standard two-input and three-input logic
gates, design an encoder circuit that implements
the following truth table
a b c y1 y0
1 d 1 0 1
d 1 0 1 0
0 0 d 1 1
17
Solution
1
1
1
1
18
Y1
19
Solution
1
1
1
1
20
Y0
21
Quiz 4-5
22
Using standard two-input logic gates, design a
2X1 MUX which implements
Your circuit should have three inputs, Data
inputs D0 and D1, and control input S.
Hint Develop the truth table first
23
Solution
D1 D0 S F
d D0 0 D0
D1 d 1 D1
24
Solution
25
Demonstrations
26
1 bit deep 2x1 MUX

• 2 Logical Data Inputs 1 bit deep
• 1 Control Input
• 1 Logical Output 1 bit deep

27
1 bit deep 4x1 MUX

• 4 Logical Data Inputs 1 bit deep
• 2 Control Inputs
• 1 Logical Output 1 bit deep

28
2 bits deep 2x1 MUX

• 2 Logical Data Inputs 2 bits deep
• 1 Control Input
• 1 Logical Output 2 bits deep

29
2 bits deep 4x1 MUX

• 4 Logical Data Inputs 2 bits deep
• 2 Control Inputs
• 1 Logical Output 2 bits deep

30
4 bits deep 2x1 MUX

• 2 Logical Data Inputs 4 bits deep
• 1 Control Input
• 1 Logical Output 4 bits deep

31
Quiz 4-6
32
Using the 2X1 MUX shown below and NOT gates,
design a logic circuit which implements
33
Solution
We need
We have
Let as, D0b, D1b
34
Quiz 4-7
35
Using standard two-input logic gates, design a
2X1 MUX with Enable which implements
Your circuit should have four inputs, Data inputs
D0 and D1, and control inputs E and S.
36
Solution
D1 D0 E S F
d d 0 d 0
d D0 1 0 D0
D1 d 1 1 D1
37
Solution
38
Quiz 4-8
39
Design a 4x1 MUX using the 2x1 MUX with enable
shown below, NOT, and OR gates
Your design should implement this equation
40
Solution
41
Quiz 4-9
42
Using the 4x1 MUX shown below and NOT gates,
design a logic circuit which implements
43
Solution
44
Quiz 4-10
45
Using the 4x1 MUX shown below and NOT gates,
design a logic circuit which implements
46
Solution
c
c
F
c
c
a
b
47
Class Design Project
48
Quiz 4-11

• Module A

49
Design a logic circuit (lets call this module A)
which converts a three bit signed magnitude input
into its equivalent three bit twos complement
output. Let X20 indicate a positive number and
X21 indicate a negative number.X1 and X0
represent the magnitude of the number. For
example
Module A
INPUT X2..0 OUTPUT A2..0
Hint Really this is a hint ?!!!, Develop the
truth table for all possible input combinations
50
Solution
X2 X1 X0 A2 A1 A0
0 0 0 0 0 0
0 0 1 0 0 1
0 1 0 0 1 0
0 1 1 0 1 1
1 0 0 0 0 0
1 0 1 1 1 1
1 1 0 1 1 0
1 1 1 1 0 1
51
Solution
52
Solution
1
1
1
1
53
Quiz 4-12

• Module B

54
Design a logic circuit (lets call this module B)
which computes where A is a three bit twos
complement input with a domain of -3 to 3.
How many bits are you going to need for B?
Module B
INPUT A2..0 OUTPUT B??..0
Hint This is really another hint!!!,
Precompute B in decimal for each possible A and
develop a truth table relating B to A in binary.
Assume dont care for B when A gt 3.
55
Solution
A2 A1 A0 B B3 B2 B1 B0
0 0 0 -1 1 1 1 1
0 0 1 1 0 0 0 1
0 1 0 3 0 0 1 1
0 1 1 5 0 1 0 1
1 0 0 D d d d d
1 0 1 -7 1 0 0 1
1 1 0 -5 1 0 1 1
1 1 1 -3 1 1 0 1
56
Solution
57
Solution
1
1
1
1
58
Quiz 4-13

• Module C

59
Using Half Adders and NOT gates, design a logic
circuit which will compute the 2s comp of a
4-bit signed binary number
Module C
INPUT B3..0 OUTPUT C3..0
Hint
Calculate the 1s complement and add 1.
60
Solution
61
Quiz 4-14

• Module D

62
Using Module C (i.e. 2s comp module) and the
4-bit wide 2X1 MUX shown below, design a logic
circuit which will calculate the sign magnitude
of a 4-bit 2s complement number. You may assume
maximum magnitude is 7. Your design should also
havean output labeled sign which is sign1 for
negative values.
Module D
INPUT B3..0 OUTPUT D2..0 Sign
63
Solution
64
Quiz 4-15

• Class Design Project

65
We have the design for four modulesA 4-bit
Sign Magnitude to 2s complementB y2x-1 for
Xlt4C 4-bit 2s complement generatorD 4-bit
2s complement to Sign Magnitude
Team with two other groups. One group (X) should
implement module A One group (Y) should
implement module B One group (Z) should
implement module C,D Pick your groups and decide
who is X,Y, and Z.
66
I will give a series of inputs to Group X, who
should compute A A2..0 and give it to group Y,
who then needs to compute BB3..0 and give it
to group Z who then needs to compute DD2..0
and Sign. Group D should convert the result to
decimal using a minus sign to represent a
negative number and record it on the board. Use
the index card to pass data from one module to
the next.
67
Block Diagram
From Dr. Perry
Sign
X2..0
A2..0
B3..0
D2..0
A
B
C/D
Record Results On Board
68
X000

• 1

69
X100

• 2

70
X001

• 3

71
X101

• 4

72
X011

• 5

73
X111

• 6

74
Quiz 4-16
75
Let tgate15ns, calculate the worst case delay
for a 32-bit adder for the three circuits below.
Circuit Delay
Ripple Carry (2n1)tgate
Fully Parallel 2tgate
Carry Look Ahead 4tgate
76
Let tgate15ns, calculate the worst case delay
for a 32-bit adder.
Circuit Delay Delay
Ripple Carry (2n1)tgate 6515ns975ns
Fully Parallel 2tgate 215ns30ns
Carry Look Ahead 4tgate 415ns60ns
77
Quiz 4-17
78
Given the 4-bit add/sub module shown below, let
AD, BF, ADD0, what is S in ADDER module in
hex and decimal?
79
Given the 4-bit add/sub module shown below, let
AD, BF, , what is S?
DFC -3(-1)-4
80
Quiz 4-18
81
Given the 4-bit add/sub module shown below, let
AD, BF, ADD1, what is S in hex and decimal?
82
Given the 4-bit add/sub module shown below, let
AD, BF, ADD1, what is S?
D-FE -3-(-1)-2
83
Quiz 4-19
84
Overflow/Underflow Detection

• Recall
• That is, if for the MSB carry_in is not equal to
  carry_out, overflow or underflow has occurred.

85
Given a 4-bit adder, indicate whether each
operation below gives an overflow(O),
underflow(U), or correct (OK) answer.

• 1. D4
• 2. 6 4
• 3. 7 A
• 4. F F
• 5. 8 F

86
Given a 4-bit adder, indicate whether each
operation below gives an overflow(O),
underflow(U), or correct (OK) answer.

• 1. D4 1 (OK)
• 2. 6 4 A (O)
• 3. 7 A 1 (OK)
• 4. F F E (OK)
• 5. 8 F 7 (U)

87
Quiz 4-20
88
Given a 4-bit adder, indicate whether each
operation below gives an overflow(O),
underflow(U), or correct (OK) answer.

• 1. D-7
• 2. 6 -4
• 3. 7 - A
• 4. F - F
• 5. 8 - 1

89
Given a 4-bit adder, indicate whether each
operation below gives an overflow(O),
underflow(U), or correct (OK) answer.

• 1. D-76 (U)
• 2. 6 -4 2 (OK)
• 3. 7 - A D (O)
• 4. F - F 0 (OK)
• 5. 8 - 1 7 (U)

90
Quiz 4-21
91
Develop the truth table fora 2 bit signed
comparator?

• Your truth table should have four inputs
• b1 b0 a1 a0 and three outputs
• F1 (AltB)
• F2 (A gt B)
• F3 (A B)
• Assume 2-bit signed (i.e. 2s comp) values
• Hint convert to decimal and compare

92
Solution
b1 b0 a1 a0 AltB AgtB AB
0 0 0 0 0 0 1
0 0 0 1 0 1 0
0 0 1 0 1 0 0
0 0 1 1 1 0 0
0 1 0 0 1 0 0
0 1 0 1 0 0 1
0 1 1 0 1 0 0
0 1 1 1 1 0 0
93
Solution
b1 b0 a1 a0 AltB AgtB AB
1 0 0 0 0 1 0
1 0 0 1 0 1 0
1 0 1 0 0 0 1
1 0 1 1 0 1 0
1 1 0 0 0 1 0
1 1 0 1 0 1 0
1 1 1 0 1 0 0
1 1 1 1 0 0 1
94
Quiz 4-22
95
Let AC and B7and S1..000, what is F in
hex?
F3..0
96
Let AC and B7and S1..000, what is F?
F3..0
AND Operation F04
97
Quiz 4-23
98
Let AC and B7and S1..010, what is F in
hex?
F3..0
99
Let AC and B7and S1..010, what is F?
F3..0
NOT A Operation F03
100
Quiz 4-24
101
Let AC and B7and S1..011, what is F hex?
F3..0
102
Let AC and B7and S1..010, what is F?
F3..0
XOR Operation F0B
103
Quiz 4-25
104
Let A3 and B4,S1..000, What is F in hex?
105
Let A3 and B4,S1..000, What is F in hex?
FAB F07
0
0
106
Quiz 4-26
107
Let A3 and B4,S1..010, What is F in hex?
108
Let A3 and B4,S1..010, What is F in hex?
FA1 F04
0
0
