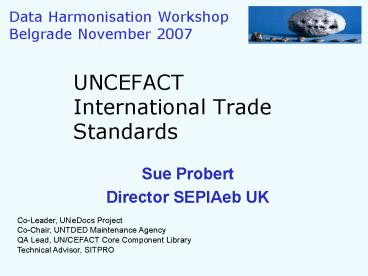

Data Harmonisation WorkshopBelgrade November 2007
UNCEFACT International Trade Standards

• Sue Probert
• Director SEPIAeb UK

Co-Leader, UNeDocs Project Co-Chair, UNTDED
Maintenance Agency QA Lead, UN/CEFACT Core
Component Library Technical Advisor, SITPRO
2
UN/CEFACT Global TradeFacilitation Standards
TBG15 Trade Facilitation
TBG19 eGov
TBG18 Agriculture
UNECE Recommendations incl. 33, 34 and 35 for SWs
International Supply Chain Model UNeDocs Data
Model
UN/CEFACT Core Component Library
TBG1 Supply Chain
United Nations Trade Data Elements Directory
(UNTDED)
TBG4 WCO DM
Belgrade November 2007
UNCEFACT International Trade Standards Foundation
slide 2
3
UNCEFACT Standards Foundation

• UNCEFACT Trade Reference Model for the
  International Purchase and Supply Chain
• UNCEFACT Unified Modelling Methodology - UMM
• UNCEFACT Core Components Technical Specification
  CCTS (ISO TS15000-5)
• UNCEFACT Core Component Library
• United Nations Trade Data Elements Directory
  (UNTDED ISO 7372)
• United Nations Layout Key (UNLK UN/ECE Rec. 1)
• UN/EDIFACT Directory
• UNCEFACT XML Naming and Design Rules

Belgrade November 2007
UNCEFACT International Trade Standards Foundation
slide 3
4
UNCEFACT UMM International Supply Chain
Business Process Model
SHIP/ DELIVER
BUY
PAY
INVOLVING

• Commercial
• Procedures
• Establish Sales Contract
• Order Goods or Services
• Advise On Delivery
• Request Payment

• Transport
• Procedures
• Establish Transport Contract
• Collect, Move and Deliver Goods
• Provide Waybills, Goods Receipts Status Reports
  etc..

• Regulatory
• Procedures
• Obtain Import/Export Licences etc
• Provide Customs Declarations
• Provide Cargo Declaration
• Apply Trade Security Procedures
• Clear Goods for Export/Import

• Financial Procedures
• Provide Credit Rating
• Provide Insurance
• Provide Credit
• Execute Payment
• Issue Statements

Belgrade November 2007
UNCEFACT International Trade Standards Foundation
slide 4
5
UNLK UN/ECE Rec. 1The unsung Global Hero

• First published 1973
• Flexible aligned data presentation which has
  become the de facto standard for the majority of
  international trade documents
• Foundation for International transport
  conventions e.g. Maritime B/L (ICS), Airwaybill
  (IATA), Road CMR (IRU), Rail CIM (UIC) etc.
• Foundation of Customs and other Regulatory
  Procedures e.g SAD, Phyto-Sanitary Certificates,
  Cert of Origins etc.
• Hundreds of document formats based on UNLK across
  trade, transport, finance, customs, insurance,
  inspection etc.
• TDED (ISO 7372), box completion guidelines

Belgrade November 2007
UNCEFACT International Trade Standards Foundation
slide 5
6
UNLK Form Families
Trade Documents Quotation, Order, Invoice etc.
Materials Management Documents Despatch Advice,
Pick List, Packing List etc.
Transport Documents Bill of Lading, Shipping
Instructions etc.
Customs Documents Export, Import, Transit
Declarations, Cargo Reports etc.
Other Regulatory Documents Cert of Origin,
DGN etc.
Belgrade November 2007
UNCEFACT International Trade Standards Foundation
slide 6
7
UN Trade Data Element DirectoryUNTDED
Belgrade November 2007
UNCEFACT International Trade Standards Foundation
slide 7
8
UN Layout Mapping Example
UID Name Definition Synonym Repr. Mapping
2280 Transport Means. Actual Departure. Date
Time Date and or time of the departure of means
of transport Flight Date, Sailing
Date an..17 UNLK L 17, P 16
Belgrade November 2007
UNCEFACT International Trade Standards Foundation
slide 8
9
Combined Approach
Electronic Document Exchange XML or UN/EDIFACT
lt?xml version"1.0" encoding"UTF-8"?gt ltnInvoice
xmlnsn"urnoasisnamestcublInvoice1.00.70"
xsischemaLocation"urnoasisnamestcublInvoice
1.00.70 UBL_Library_0p70_Invoice.xsd"gt ltcatIDgt
tokenlt/catIDgt ltcatIssueDategt2003-02-14lt/catIss
ueDategt ltnTaxPointDategt2003-02-14lt/nTaxPointDat
egt ltcatBuyerPartygt ltcatPartyNamegt ltcatNa
megtBills Microdeviceslt/catNamegt lt/catPartyName
gt lt/catBuyerPartygt ltcatSellerPartygt ltcatID/
gt ltcatPartyNamegt ltcatNamegtJoes Office
Supplylt/catNamegt lt/catSellerPartygt ltcatInvoic
eLinegt ltcatIDgt1lt/catIDgt ltcatInvoicedQuantit
y unitCode"token"gt5lt/catInvoicedQuantitygt ltcat
Itemgt ltcatDescriptiongtPencils, box 2
redlt/catDescriptiongt lt/catItemgt lt/catInvoice
Linegt lt/nInvoicegt
Electronic Edit Form
Paper Document aligned to UN Layout Key
Belgrade November 2007
UNCEFACT International Trade Standards Foundation
slide 9
10
Belgrade November 2007
UNCEFACT International Trade Standards Foundation
slide 10
11
UNeDocs Cross-Domain Data Model

• A combination of cross-border business
  requirements collected from the TBG domain
  Working Groups and the necessary international
  regulatory requirements collated in conjunction
  with the WCO, paper-based Convention stakeholders
  and the Trade Facilitation work of TBG15.
• The application of a holistic approach which
  incorporates the deployment of all relevant
  UN/CEFACT instruments and standards.
• A Business Requirements Specification defining
  the relationships between trade, transport and
  governmental data entities.
• A harmonised, multimodal cross-domain data model
  based on the reuse of the UN/CEFACT Core
  Component Library.
• The development of coordinated implementation
  specifications for paper, eforms, UN/EDIFACT and
  XML document formats and structures.

Belgrade November 2007
UNCEFACT International Trade Standards Foundation
slide 11
12
Global TradeSingle Window
Materials Management
Trade
Insurance
Transport
Payment
B2B
B2G
Single Window Reference Data Model
International Trade Cross Border
G2G
Other Govt. Agencies
Customs
Belgrade November 2007
UNCEFACT International Trade Standards Foundation
slide 12
