Title: Pengantar Organisasi Komputer

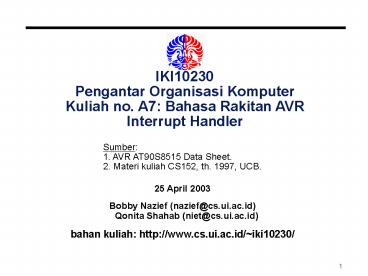

1
IKI10230Pengantar Organisasi KomputerKuliah no.
A7 Bahasa Rakitan AVRInterrupt Handler
Sumber1. AVR AT90S8515 Data Sheet.2. Materi
kuliah CS152, th. 1997, UCB.
25 April 2003 Bobby Nazief (nazief_at_cs.ui.ac.id)Qo
nita Shahab (niet_at_cs.ui.ac.id) bahan kuliah
http//www.cs.ui.ac.id/iki10230/
2
  • Interrupt Handler

3
Enabling/Disabling Interrupt (1)
  • When an interrupt occurs, the Global Interrupt
    Enable I-bit is cleared (zero) and all interrupts
    are disabled. The user software can set (one) the
    I-bit to enable nested interrupts (risky!). The
    I-bit is set (one) when a Return from Interrupt
    instruction RETI - is executed.
  • Instructions SEI, CLI

4
Enabling/Disabling Interrupt (2)
  • The AT90S4414/8515 has two 8-bit Interrupt Mask
    control registers
  • GIMSK - General Interrupt Mask registerto
    enable/disable external interrupts
  • TIMSK - Timer/Counter Interrupt Mask registerto
    enable/disable timer/counter interrupt

5
Remembering Interrupt
  • The AT90S4414/8515 has two 8-bit Interrupt Flag
    registers
  • GIFR - General Interrupt Flag registerto
    remember external interrupts whenever it is being
    disabled
  • TIFR - Timer/Counter Interrupt Flag registerto
    remember timer/counter interrupt whenever it is
    being disabled

6
When Interrupt is Set - SEI
  • If the interrupting condition occurs, e.g. a
    change on the port bit, the processor pushes the
    actual program counter to the stack
  • After that, processing jumps to the predefined
    location, the interrupt vector, and executes the
    instructions there.
  • Usually this is a JUMP instruction to the
    interrupt service routine somewhere in the code.
  • The interrupt vector is a processor-specific
    location and depending from the hardware
    component and the condition that leads to the
    interrupt
  • The service routine must re-enable this flag
    after it is done with its job. The service
    routine can end with the command RETI

7
Interrupt Vector
Vec No Prg Adr Source Interrupt Definition 1
000 RESET Hardware Pin, Power-on Reset
and Watchdog Reset 2 001 INT0 External
Interrupt Request 0 3 002 INT1 External
Interrupt Request 1 4 003 TIMER1 CAPT
Timer/Counter1 Capture Event 5 004
TIMER1 COMPA Timer/Counter1 Compare Match A 6
005 TIMER1 COMPB Timer/Counter1 Compare Match
B 7 006 TIMER1 OVF Timer/Counter1 Overflow 8
007 TIMER0, OVF Timer/Counter0
Overflow 9 008 SPI, STC Serial Transfer
Complete 10 009 UART, RX UART, RX Complete 11
00A UART, UDRE UART Data Register Empty 12
00B UART, TX UART, TX Complete 13 00C
ANA_COMP Analog Comparator
Prioritas Tertinggi
8
Interrupt Vector Initialization
  • Address Code Comments
  • 000 rjmp RESET Reset Handler
  • 001 rjmp EXT_INT0 IRQ0 Handler
  • 002 rjmp EXT_INT1 IRQ1 Handler
  • 003 rjmp TIM1_CAPT Timer1 Capture Handler
  • 004 rjmp TIM1_COMPA Timer1 CompareA Handler
  • 005 rjmp TIM1_COMPB Timer1 CompareB Handler
  • 006 rjmp TIM1_OVF Timer1 Overflow Handler
  • 007 rjmp TIM0_OVF Timer0 Overflow Handler
  • 008 rjmp SPI_STC SPI Transfer Complete
    Handler
  • 009 rjmp UART_RXC UART RX Complete Handler
  • 00a rjmp UART_DRE UDR Empty Handler
  • 00b rjmp UART_TXC UART TX Complete Handler
  • 00c rjmp ANA_COMP Analog Comparator Handler

9
Kerangka Program
  • rjmp RESET
  • rjmp EXT_INT0
  • RESET
  • init stack pointer
  • init any ports used
  • other init
  • sei
  • do things, main loop, etc
  • EXT_INT0
  • do things
  • reti

10
Contoh Main Program
  • .cseg
  • .org INT0addr
  • rjmp ext_int0 External interrupt handler
  • .org OVF0addr
  • rjmp tim0_ovf Timer0 overflow handler
  • main
  • Do some initializations
  • rcall uart_init Init UART
  • sei Enable interrupts
  • idle
  • sbrs u_status,RDR Wait for Character
  • rjmp idle
  • Do the work
  • wait
  • sbrc u_status,TD Wait until data is sent
  • rjmp wait
  • Wrap it up

11
Contoh Interrupt Handler
  • ext_int0
  • ldi u_status,1ltltBUSY Set busy-flag (clear all
    others)
  • Do some work
  • ldi u_tmp,1ltltTOIE0 Set bit 1 in u_tmp
  • out TIFR,u_tmp to clear T/C0 overflow flag
  • out TIMSK,u_tmp and enable T/C0 overflow
    interrupt
  • Do more work
  • clr u_bit_cnt Clear bit counter
  • out GIMSK,u_bit_cnt Disable external interrupt
  • reti
  • tim0_ovf
  • sbrs u_status,TD if transmit-bit set
  • Do something
  • ldi u_tmp,1ltltINT0 (u_bit_cnt9)
  • out GIMSK,u_tmp Enable external interrupt
  • clr u_tmp
  • out TIMSK,u_tmp Disable timer interrupt
  • cbr u_status,(1ltltBUSY)(1ltltTD) Clear busy-flag
    and transmit-flag

12
Referensi
  • AVR Assembler User Guide
  • http//www.avr-asm-tutorial.net
  • Contoh program int-exmp.asm
