The Cell 4e

1

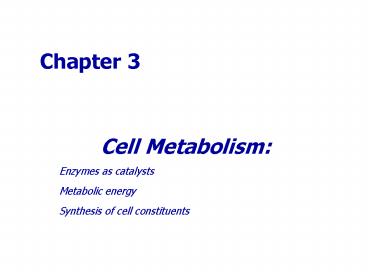

Chapter 3
Cell Metabolism
Enzymes as catalysts Metabolic energy Synthesis
of cell constituents
2
Why do we need catalysts?

• Biological reactions slow at body temperature and
  pressure
• - too slow for life w/o catalysts
• Enzymes increase reaction speed ( 106 times) to
  seconds ( milliseconds)
• - usually proteins
• - some RNAs (in ribosomes, telomere synthesis)
• - cells have thousands

3
Whats so unique about enzymes?

• Increase reaction rate w/o being consumed/altered
• 2. Increase reaction rate w/o affecting chemical
  equilibrium
• E
• P R
• - equilibrium determined by thermodynamics
  of P and R

Energy diagram reveals role of enzymes - Bonds
in reactants (substrate) brought to higher
energy state transition state - Bonds can
then be broken and reformed in product
Catalysis interaction b/tw substrate and enzyme
in active site
4
Enzymes react specifically w/ their substrates

• Interactions in active site based on
• H bonds
• Ionic bonds
• Hydrophobic interactions
• 2. Conformations of substrates altered
• - more toward transition state
• - amino acids in enzyme active site may bond w/
  reaction intermediates
• acidic/basic residues

5
Serine proteases bind substrates viahydrophobic
ionic interactions
Preferential cleavage of peptide bonds adj. to
certain amino acids
3 aa in activ site Ser His Asp
Nature of pocket determines substrate specificity
6
Model for catalysis chymotrypsin
Ser transfers H to His forming
tetrahedral transition state
Energetically favorable b/c His() now
interacts w/ Asp(-)
7
Model for catalysis chymotrypsin
Peptide bond cleaved - His loses H to free
peptide - N terminus retained
Water donates H to His and OH- to substrate
8
Model for catalysis chymotrypsin
2nd tetrahedral transition state
H transferred from His back to Ser
What can we learn from this? 1. Specificity E-S
2. Positioning of S in active site 3.
Requirement for active site residues
9
Other participants in catalysis coenzymes

• enhance reaction rates
• carriers of chemical groups,
• some, prosthetic groups on proteins e.g. heme
  carries iron for binding O2
• some, small organic molecules
• unchanged by reaction, recycled

10
Example of coenzyme function NAD/NADH
Nicotinamide adenine dinucleotide
11
Enzymes regulated by feedback inhibition
2 types - positive - negative
Mechanisms - allosteric regulation -
competitive inhibition - phosphorylation
Activity affected by - temperature - pH
12
Allosteric inhibition
Anything altering enzyme shape affects activity
Mechanisms - allosteric regulation -
competitive inhibition
Activity affected by - temperature - pH
13
Phosphorylation of amino acids
Residues tyr, ser, thr - Kinases catalyze PO4
addition (100s / cell) - Phosphatases remove PO4
(100s/ cell)
14
Energetics of biological reactions free energy
Chemical reactions obey laws of thermodynamics

• Descriptions of chemical reactions
• - Enthalpy
• Endothermic (?H) or exothermic (-?H)
• - Entropy
• Spontaneous (?S) or nonspontaneous (-?S)
• - Change in free energy encompasses both
• ?G ?H - T?S

Gibbs free energy named for J. Willard Gibbs
(1839-1903) -describes the change in energy of a
system (at constant T) If ?G lt0, spontaneous
?G gt0, nonspontaneous ?G 0, equilibrium
15
Energetics of biological reactions free energy
Many biological reactions are nonspontaneous

• Have to couple them with spontaneous reactions
• - in which there will be an excess of free energy
• Overall, for both reactions, ?Glt0

A B ?G 10 kcal/mol C
D ?G -20 kcal/mol A C
B D ?G -10 kcal/mol
16
ATP hydrolysis main cellular spontaneous
reaction

• Intracellular concentrations Pi 10-2 M, ATP gt
  ADP
• ATP ? ADP Pi ?G -12 kcal/mol

17
The Generation of ATP from Glucose
Glycolysis ATP from glucose
The breakdown of carbohydrates, particularly
glucose, is a major source of cellular
energy Glycolysis - initial state in the
breakdown of glucose and is common to all
cells - oldest mechanism for energy
production In addition to producing ATP,
glycolysis converts two molecules of the coenzyme
NAD to NADH. Glycolysis takes place in the
cytosol
18
3.11 Reactions of glycolysis
3

• Complete oxidative breakdown of glucose yields ?G
  -686 kcal/mol
• Stepwise breakdown allows energy to be harvested
  for ATP synthesis
• Yield 4 ATP-2 ATP 2 ATP 2 NADH
• Regulated by feedback inhibition
• High ATP inhibits phosphofructokinase

19
3.11 Reactions of glycolysis (Part 1)
3

• - Hexokinase phosphorylates gluclose
• - Traps glucose inside cell
• - Inhibited by G-6-P

Hexokinase
Phosphohexose isomerase
20
3

• Phosphofructose kinase
• Key regulator of glycolysis
• Inhibited by high ATP levels

Phosphofructose kinase
Aldolase
X
X Triosephosphate isomerase
21
3
Phosphoglyceraldehyde dehydrogenase
3-Bisphosphoglycerate kinase

• NAD accepts e- from glyceraldehyde-3-phosphate
• Formation of 3-phosphoglycerate yields ?G
  -11.5 kcal/mol

Phosphoglycero- mutase
Enolase
22
3

• Hydrolysis of phosphate from phosphoenolpyruvate
  yields ?G -14.6 kcal/mol
• Each glucose yields 4 ATP
• In absence of O2, NAD regenerated via
  fermentation

Pyruvate kinase
23
Map of some biosynthetic pathways
24
The Generation of ATP from Glucose
The Generation of ATP from Glucose
Pyruvate transport into the citric acid cycle

• Coenzyme A (CoA) - carrier of acyl groups in
  various metabolic reactions
• 1 carbon released as CO2
• Remaining 2 carbons transferred to CoA,
  then to citric acid cycle (TCA)
• TCA (or Krebs cycle) - central pathway in
  oxidative metabolism (mitochondria)

25
TCA completes oxidation of glucose

• As the reactions cycle from citrate to
  oxaloacetate,
• high energy electrons are transferred to NAD
  and FAD

Electron accounting
Isocitrate ? ?-ketoglutarate, 2 e- to
NAD ?-ketoglutarate ? succinyl CoA, 2 e- to
NAD succinate ? fumarate, 2 e- to FAD
Carbon accounting

• 2 carbons enter as acetyl CoA
• 4 carbon oxaloacetate 6 carbon citrate
• 2 carbons released as CO2 (carbons from
  oxaloacetate are oxidized) 4 carbon succinyl
  CoA
• These 4 carbons regenerate starting material,
  oxaloacetate

http//www.sinauer.com/cooper/4e/animations0304.ht
ml
26
3.13 The citric acid cycle, sung to the tune of
Rudolph the Red-nosed Reindeer
Citrate synthase
Malate dehydrogenase
Aconitase
Fumerase
Aconitase
Succinate dehydrogenase
Isocitrate dehydrogenase
Succinyl CoA synthase
?-ketoglutarate dehydrog.
ATP
ADP
27
High Energy e- Donated to ETC
Fate of e- carried by NADH and FADH2
ETC
I
CoQ
III
2 e-
II
2 e-
28
Transport of electrons from NADH
e- from NADH to O2 ?G -52.5 kcal/mol
-25.8 kcal/mol
-10.1 kcal/mol
-16.6 kcal/mol
4 H
4 H
2 H
NADH ox.
3 ATP
29
Summary of ETC complexes

• Complex I 40 polypeptide chains, e- to flavin
  mononucleotide then the iron-sulfur center to
  CoQ
• Coenzyme Q, (ubiquinone), - small lipid-soluble
  molecule, carries electrons from complex I
  through the membrane to complex III, which
  consists of about ten polypeptides.
• Complex II - distinct protein complex, consists
  of four polypeptides, receives e- from the citric
  acid cycle intermediate, succinate (carried by
  FADH2)
• Complex III 10 polypeptides, e- goes from
  cytochrome b to cytochromec
• Cytochrome c - peripheral membrane protein on
  outer face of the mitochondrial inner membrane,
  carries electrons to complex IV
• Complex IV (cytochrome oxidase) 2 e- are added
  to oxygen, yields water

30
11.10 Transport of electrons from FADH2
FADH2 ox.
2 ATP
4 H
2 H
31
Figure 3.14 e- fall down the ETC
?G (free energy)
32
Chemiosmotic Coupling
Chemiosmosis

• Chemiosmotic coupling - mechanism of coupling
  electron transport to ADP phosphorylation
• Brown fat (infants, humans in arctic climates,
  mammals) allows heat, instead of ATP to be
  generated via uncoupling proteins
• Certain disease states associated with
  uncoupling, e.g.
• Heart failure
• Diabetes
• e- transport through complexes I, III, and IV
  coupled to the transport of protons into the
  intermembrane space
• Proton gradient across inner membrane corresponds
  to about one pH unit (tenfold lower concentration
  of protons within mitochondria)

33
11.11 The electrochemical nature of the proton
gradient
Phospholipid bilayer impermeable to ions
34
Chemiosmotic Coupling

• 1961, Peter Mitchell proposed ATP synthesis via
  chemiosmosis
• Phosphorylation required intact membranes
• No high E intermediates between ETC and ATP found
• 1978 Nobel Prize
• Electrochemical gradient - difference in chemical
  concentration and electric potential across a
  membrane
• 0.14 volts across inner mito. membrane
• ATP synthase - transmembrane protein complex,
  couples the energetically favorable transport of
  protons across a membrane to the synthesis of ATP

35
11.12 Structure of ATP synthase (complex V)

• F0 forms H channel
• E released as H diffuse down their
• concentration gradient
• E rotates F1, driving ADP phosphorylation

http//www.youtube.com/watch?v3y1dO4nNaKY
36
Accounting for the oxidation of one molecule of
glucose

• 2 ATP
• 2 NADH
• 2 ATP
• 8 NADH
• 2 FADH2
• 34 ATP
• 38 ATP

Glycolysis
Pyruvate to Acetyl CoA The Citric Acid cycle
Electron transport chain
Total yield of ATP
37
Energy from oxidation of fatty acids
1 16 C fatty acid 7 NADH 7 FADH2 8 Acetyl CoA 130
ATP
38
Chemiosmotic Coupling
Energetics of biosynthesis

• Carbohydrates synthesized from CO2 (plants)
  pyruvate (animals)
• Calvin cycle-utilizes ATP and NADPH to synthesize
  glyceraldehyde 3-PO4 (then made into glc) from
  CO2
• -requires 18 ATP, 12 NADPH per glc
• Gluconeogenesis-reverse of glycolysis, some
  reactions reversible, others proceed only in
  direction of glc breakdown
• - energy requiring steps have different enzymes
• - requires 4 ATP, 2 GTP, 2 NADH

39
Chemiosmotic Coupling
Carbohydrate synthesis in plants Calvin cycle
40
Chemiosmotic Coupling
Gluconeogenesis
41
Chemiosmotic Coupling
Polysaccharide synthesis
-ATP UTP provide energy -UDP-glc is activated
glc inter- mediate -UDP-glc donates glc to
poly- saccharide chain (E favorable)
42
Chemiosmotic Coupling
Protein synthesis (not translation)
-N fixation requires ATP, few prokaryotes -prokary
otes, plants, fungi utilize NO3- -all organisms
incorporate NH3 into organic molecules -esp.
glutamate glutamine synthesis
43
Chemiosmotic Coupling
Amino acid synthesis
-glc provides raw material -glu and gln donate
NH3 in synthesis of other AAs -requires energy
(ATP, NADPH plants prokaryotes ATP, NADH
animals) -glycolysis TCA intermediates provide
building blocks
44
Chemiosmotic Coupling
Peptide bonds
45
Chemiosmotic Coupling
Peptide bonds
46
Chemiosmotic Coupling
Purine pyrimidine synthesis
-ribose-5-PO4 (from glc-6-PO4) -pur. pyr.
ribonucleotides -ribonucleotides ?deoxyribo-
nucleotides
