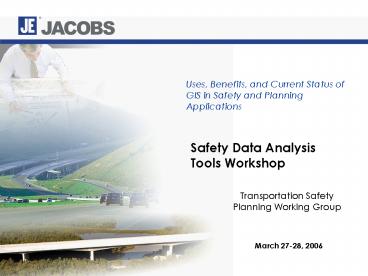

Safety Data Analysis Tools Workshop

1
Uses, Benefits, and Current Status of GIS in
Safety and Planning Applications

• Safety Data Analysis Tools Workshop

Transportation Safety Planning Working Group
March 27-28, 2006
2
GIS-Based Safety Management Systems

• Basis for development
• Highway Safety Improvement Program
• Collect and maintain safety data
• Identify hazardous locations
• Conduct engineering studies
• Establish project priorities
• Schedule and implement
• Determine the effect of safety improvements
• Safety Analyst
• Provide state-of-the-art analytical tools for use
  in the decision-making process to identify and
  manage a system-wide program of site-specific
  improvements to enhance highway safety by
  cost-effective means

3
Benefits of GIS

• Collect data once, use many times
• Reduces data collection costs
• Improves data accuracy
• Improves data consistency
• Reduces data maintenance costs
• Reduces time needed to access data
• Promotes better decision-making for safety
• Improved public safety

4
Conceptual Framework for SMS/GIS
5
Conceptual Framework for SMS/GIS

• Inventory collection/maintenance of all data
  elements
• Assess process data, establish parameters, find
  locations
• Analyze diagnose critical locations, establish
  costs/benefits
• Model synthesize data into optimal resource
  allocation
• Evaluate determine countermeasure
  effectiveness
• Program develop implementation plans
• Publish generate standardized and ad hoc reports

6
SMS/GIS Functionality
7
SMS/GIS Functionality
8
Geospatial Data Inventory

• Purpose
• Collect/integrate safety safety-related
  geospatial data
• Integrate into SMS database
• Safety data warehouse
• Types of Inventory
• Crash data (local, regional, statewide)
• Road inventory, including functional
  classification
• Traffic volumes
• Pavement data
• Road safety improvements (past, present, future)
• High crash locations
• Potentially hazardous locations

9
Geospatial Data Inventory

• Data is most critical system element
• Data must be designed
• To be feasible to collect/generate
• To be of sufficient quality
• To produce essential information
• Data design must be output driven
• What information is essential?
• What information will add value?
• Will the data produce this information?

10
Geospatial Data Inventory

• Data typically 70-80 of project cost
• Collection, aggregation
• Conflation, merging, etc.
• Quality checks
• Often neglected in technical specs
• Use of available data
• New data sources and capabilities
• Enhance data accuracy/timeliness
• Enlarge analytical capabilities

11
SMS/GIS Functionality
12
Geospatial Data Assessment

• Purpose
• Characterize safety of roads, intersections, and
  network
• Compute accident rates for roads and
  intersections
• Develop safety rating index for roads and
  intersections
• Determine overall crash characteristics by type
• Aggregate safety rating for areas and locations
• Find locations indicated to be hazardous or
  potentially hazardous
• Data quality, conformance to standards
• Other potential assessment indicators

13
Data for SMS/GIS

• Crash Data
• Varies significantly by state
• Standards within the State are required
• State/Local coordination is necessary to achieve
  standards for capture and data models
• Geo-location element is critical for success
• Standard naming conventions are also critical
• Use of a common base map
• Should use one of the standard LRMs
• Time stamp the crash date
• Current GIS approaches can locate to 1/100 mile

14
Data for SMS/GIS

• Traffic Data
• Traffic counts are important
• They are used for crash rate calculations and
  other statistics
• They typically start as sparse point data and
  need to be filled in
• Data is needed for both State and local levels

15
Data for SMS/GIS

• Highway Classification
• Functional classification
• Number of lanes
• Divided or undivided
• Access control
• Type of area (urban, rural, suburban)

• Hazardous Highway Features
• Blunt end guard rails
• Slippery pavement sections
• Narrow lanes or shoulders
• Non-break away signs supports
• Rigid light pole supports
• Inadequate horizontal or vertical curves
• Poor sight distances
• Non-uniform or inadequate traffic control devices

16
SMS/GIS Functionality
17
Analyze/Diagnose

• Purpose - to generate
• Identify anomalies
• Conformance to current standards
• Location statistical analysis
• Location summary reports
• For location investigations
• Location visualization
• Crash report visualization
• Countermeasure development
• Alternative strategies per location
• System considerations
• Countermeasure cost
• Safety benefit determination

18
SMS/GIS Functionality
19
Model/Optimize

• Purpose
• Optimize countermeasure strategy
• Maximum possible benefit
• Subject to funding limitation
• Fit within feasible schedule
• Maximize benefit over entire network
• Model
• Effects on safety classification
• Countermeasure strategies
• Safety benefit
• Cost
• External priority
• Schedule
• Develop priority listings

20
SMS/GIS Functionality
21
Evaluate

• Purpose
• Monitor the performance of the countermeasures
• Estimate countermeasure effectiveness
• Adjust collision reduction factors for
  countermeasures

22
SMS/GIS Functionality
23
Program/Publish

• Purpose
• Transform technical allocations into real plans
• Develop multi-year program from modeling
  information
• Tabulate improvement, budget, and schedule
• Quantify projected improvements in safety
• To Publish
• Statewide safety program
• Statewide safety statistics
• Area safety statistics

24
Pedestrian Bicycle Safety

• Safe Routes to School
• Locations for new bicycle routes
• Pedestrian crash zones

25
Pedestrian Bicycle Safety

• Uses GIS data not typically captured in roadway
  inventories
• Sidewalks
• Curb lane widths
• Crosswalk locations
• Applications
• Shortest/safest/preferred routes
• Bicycle compatibility
• Location of high crash zones

26
Analytical Tools

• National Cooperative Highway Research Program
  (NCHRP) Report 546 Incorporating Safety into
  Long-Range Transportation Planning
• Appendix C Safety Tools
• Project level
• Regional level
• Corridor level
• Require differing levels of data and expertise
• Proactive and reactive
• Differing levels of analysis more generalized
  to more detailed

27
GIS at the State level

• 2006 AASHTO GIS-T Symposium
• Ongoing improvement in accuracy of geospatial
  data, particularly with road centerline databases
• Other data collected maintained include
• Other transportation network features
• Political administrative boundaries
• Geodetic control points
• Orthoimagery
• Elevation
• Water features
• Parcel boundaries

28
GIS at the State level

• 2006 AASHTO GIS-T Symposium
• Respondents asked to list up to four current GIS
  activities
• Reponses were ranked based on cites
• GIS priorities determined
• The survey noted that
• GIS also seems to be used more frequently in
  specific analysis and planning application,
  particularly safety and crash analyses,
  environmental impact studies, and traffic and
  bridge management systems.

29
GIS at the State level
GIS Activity of Citations
Development of web-based GIS application 44
Linear referencing system development / enhancement 15
Enterprise data warehouse 14
Road inventory management system / attribute data 13
Migration to new GIS hardware and software 13
Road centerline database development / enhancement 13
Data sharing partnerships / coordination 12
Orthoimagery data collection / integration 10
Traveler advisory / information system application 10
Development of other geo-spatial databases 10
Safety / crash analysis 9
ITS / traffic management applications 8
Project management applications 8
Environmental / cultural mitigation applications 7
Bridge management applications 7
GIS strategic planning / needs assessment 6
GPS data collection / integration 5
30
GIS at the MPO level

• AMPO Survey Technical Priorities (February
  2005)
• On a scale of one to ten, several broad
  categories, followed by more specific
  subcategories within each

31
GIS at the MPO level
Technical Resources/Solutions 6.72
Best practices - planning practice and institutional issues 6.82
Safe Streets 6.29
Intelligent transportation systems 6.22
Safety 6.16
Transit-oriented and transit-ready development 5.95
Context sensitive design 5.91
Complete Streets 5.85
Systems operations in general 5.78
Security 5.54
32
Hilary Perkins, AICP, GISPJacobs Civil,
Inc.314.335.4909hilary.perkins_at_jacobs.com

• Many thanks to
• Gerald Dildine
• ITIS-Corp

33
Questions/Discussion
