Oscillation Control in CMOS Phase-Locked Loops

1

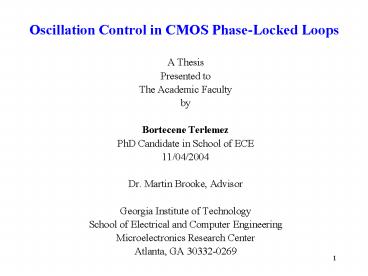

Oscillation Control in CMOS Phase-Locked Loops

• A Thesis
• Presented to
• The Academic Faculty
• by
• Bortecene Terlemez
• PhD Candidate in School of ECE
• 11/04/2004
• Dr. Martin Brooke, Advisor
• Georgia Institute of Technology
• School of Electrical and Computer Engineering
• Microelectronics Research Center
• Atlanta, GA 30332-0269

2
Outline

• PLL history and fundamentals
• PLL Architectures
• Oscillation control in CMOS charge-pump PLLs
• Single-ended control for multi-GHz charge-pump
  PLLs
• Design of a low-noise 1.8 GHz charge-pump PLL
• Design of a low-noise 5.8 GHz charge-pump PLL
• Differential control for multi-GHz charge-pump
  PLLs
• Performance comparison
• Pulse-stream coded PLLs
• Summary/Conclusions/Contributions

3
Brief Phase-Locked Loop (PLL) History

• 1932 Invention of coherent communication
  (deBellescize)
• 1943 Horizontal and vertical sweep
  synchronization in television (Wendt and Faraday)
• 1954 Color television (Richman)
• 1965 PLL on integrated circuit
• 1970 Classical digital PLL
• 1972 All-digital PLL
• PLLs today in every cell phone, TV, radio,
  pager, computer,
• Clock and Data Recovery
• Frequency Synthesis
• Clock Generation
• Clock-skew minimization
• Duty-cycle enhancement

4
Phase-Locked Loop

• Phase Detector (PD) This is a nonlinear device
  whose output contains the phase difference
  between the two oscillating input signals.
• Voltage Controlled Oscillator (VCO) This is
  another nonlinear device which produces an
  oscillation whose frequency is controlled by a
  lower frequency input voltage.
• Loop Filter (LF or LPF) While this can be
  omitted, it is always conceptually there since
  PLLs depend on some sort of low pass filtering in
  order to function properly
• A feedback interconnection Namely the phase
  detector takes as its input the reference signal
  and the output of the VCO. The output of the PD,
  the phase error, is used as the control voltage
  for the VCO.

5
PLL Architectures
6
PLL Architectures Linear PLL vs Digital PLL

• No frequency tracking
• Input amplitude dependency
• Nonlinear phase detector gain

• No frequency tracking
• Duty-cycle sensitivity (can be solved by edge
  triggered phase detector

7
PLL Architectures All-digital PLL

• Lower sensitivity to digital-switching noise
• Easier to transfer a design between technologies
• Faster lock-in times

• Higher complexity
• Bigger die size
• No true frequency synthesis (in general)

8
PLL Architectures - Charge Pump PLL

• Zero phase error (ideally)
• Unlimited capture range (ideally)

• Stability Two poles at the origin
• Zero in LPF
• Auxiliary charge pump

9
Oscillation Control in Charge Pump PLLs

• Charge Pump PLL contemporary applications
• PFD and charge pump nonidealitites 45 of the
  output phase jitter1
• Phase-Frequency Detector
• Possible dead zone
• Possible duty-cycle dependency
• Possible unbalanced output generation
• Charge Pump
• Possible current asymmetry
• Possible current leakage

• Clock skew in Clock/Data Recovery
• Reference spur in Frequency Synthesis

1 V. Kaenel, D. Aebicher, C. Piguet, and E.
Dijkstra, A 320 MHz 1.5mW _at_ 1.35 V CMOS PLL for
microprocessor clock generation, in Journal of
Solid-State Circuits, Vol. 31, No.11, Nov. 1996.
10
Phase-Frequency Detector - Behavior

• Three-state device
• PLL capture range
• Maximum operating frequency orthogonal inputs
• Reset pulse
• Too short dead zone
• Too wide VCO control perturbation

11
Charge Pump - Behavior

• Iup charging current
• Idn discharging current
• S1, S2 switches

• Effective charge pump requirements
• Equal charge/discharge current at any CP output
  voltage
• Minimal charge-injection and feed-through (due
  to switching) at the output node
• Minimal charge sharing between the output node
  and any floating node, i.e. MOS switches at off
  position

12
Single-ended control for multi-GHz charge-pump
PLLs Design of a low-noise 1.8 GHz charge-pump
PLL
13
Phase-Frequency Detector - Design

• 0.18µ TSMC CMOS
• Differential outputs
• Reset pulse 0.2ns

VDD1.8V

• Maximum frequency 600 MHz
• Significant power dissipation above 100 MHz

14
Single-Ended Charge Pump Design
Replica Biasing

• No charge sharing
• No charge injection

15
Differential VCO with Single-Ended
Control Saturated Gain Stage with Regenerative
Elements

• Delay control by varying latch strength
• Two sets of inputs for multiple-pass architecture
• Tuning range control by varying M3 and M4 sizing

Delay Stage C.H. Park, and B. Kim, A
Low-Noise, 900-MHz VCO in 0.6-?m CMOS, IEEE J.
Solid State Circuits, vol. 34, pp. 586-591, May
1999.
16
Differential VCO with Single-Ended
Control 9-Stage Multiple-Pass Loop

• Auxiliary loops nested inside main loop
• Frequency Improvement
• Effective stage delay reduced
• Noise Improvement
• Slew rate increased

17
Differential VCO with Single-Ended
Control Testing Issues

• Current-mode logic dividers 1/2 to 1/64 of
  actual frequency
• Current-mode logic buffers

• DTOS Differential to single-ended conversion
• Driver chain
• Turn-off circuitry to reduce cross-talk

18
Differential VCO with Single-Ended Control Layout
19
Differential VCO with Single-Ended
Control Simulation vs Measurement

• VCO Range
• Simulation 1.16 1.93 GHz
• Measurement 1.10 1.86 GHz

20
1.8 GHz Low-Noise PLL Measurement Summary
PLL with 9-stage ring VCO PLL with 9-stage ring VCO
VCO Range (MHz) 1120 - 1860
Lock-in Range (MHz) 124.4 128.5
Internal Freq. (MHz) 1180 - 1840
Division Ratio 16
VCO Gain (MHz/V) 770
ICP (µA) 100
Open-Loop Phase Margin 81
Closed-Loop BW (KHz) 625.5
RMS jitter (ps) 1.7
Phase Noise (-dBc/Hz) 116

• Off-chip LPF flexibility in testing

21
Single-ended control for multi-GHz charge-pump
PLLs Design of a low-noise charge-pump PLL for
maximum frequency
22
Differential VCO with Single-Ended
Control 3-Stage Multiple-Pass Loop

• VCO Range
• Simulation
• 5.18 6.11 GHz
• Measurement 5.35 6.11 GHz

23
Differential VCO with Single-Ended Control Phase
Noise for the 3-Stage Multiple-Pass Loop
Measurement
Simulation SpectreRF
Power Spectrum at ¼ Output of the 3-Stage Ring
Power Spectrum at 5.79 GHz center frequency

• Simulation -99.5 dBc/Hz _at_ 1 MHz offset from 6
  GHz central frequency
• Measurement -99.4 dBc/Hz _at_ 1 MHz offset from 6
  GHz central frequency

24
5.8 GHz Low-Noise PLL Measurement Summary
PLL with 3-stage ring VCO PLL with 3-stage ring VCO
VCO Range (MHz) 51620 - 5930
Lock-in Range (MHz) 166 - 182.5
Internal Freq. (MHz) 5310 5840
Division Ratio 32
VCO Gain (MHz/V) 793
ICP (µA) 100
Open-Loop Phase Margin 73.4
Closed-Loop BW (KHz) 248.4
RMS jitter (ps) 2.6
Phase Noise (-dBc/Hz) 110
25
Differential control for multi-GHz charge-pump
PLLs
26
Differential Charge Pump Design

• Output linear range (0.315V, 1.390V)
• Differential outputs FST and SLW

27
Charge Pump Common-Mode Feedback (CMFB)

• Sampled data CMFB
• CMFB transconductance gain 40µA/V
• CMFB bandwidth 3KHz
• CMFB phase-margin 76º

• Capacitors
• DC voltage stability
• Diodes
• No effect on operation
• Discharging metal during the etching process

100µA
28
Charge Pump - Layout
150 x 130 µm2
29
Charge Pump Post Layout Simulation

• High output resistance
• No charge sharing
• Decreased charge injection

30
Differentially Controlled LC Oscillator - I
Accumulation mode MOS varactor

• Differential fine tuning Accumulation mode MOS
  varactors
• Digital coarse tuning MiM capacitors

• Three-turn inductor
• 2.4 nH, 1.7mm, Q9.5
• Thick top metal
• Frequency goal 2.5GHz

31
Differentially Controlled LC Oscillator - II
1/16 output fo 157.8 MHz PN_at_100KHz -83.8
dBc/Hz
32
PLL Test Setup

• Stable nested loops
• CMFB BW 3KHz ltlt Loop BW
• 200KHz ltlt Reference 150 MHz

2.5 GHz PLL with LC VCO 2.5 GHz PLL with LC VCO
Output lock-in range (MHz) 2402-2518
Input lock-in range (MHz) 150.1-157.4
Division ratio 16
C1 (nF) 10
C2 (pF) 50
C3 (pF) 50
R1 (O) 680
R2 (O) 1500
Phase margin 54.92
PLL bandwidth (kHz) 194.36
Output RMS jitter (ps) 3.5
Phase noise _at_ 1MHz offset (-dBc/Hz) 123
33
PLL - Measurement

• Phase lock _at_ 2.5 GHz internal frequency
• Phase Noise _at_ 1MHz offset from 2.5 GHz as low as
  123 dBc/Hz

Reference
½ Output
34
Prototype Chip in 0.18µm TSMC CMOS

• Analog Layout Techniques
• Common centroid topology
• Stacked parts with dummy components
• Guard rings
• Routing
• Matched and short busses
• Decoupled parallel analog and digital lines
• Complimentary digital signals crossing analog
  buses
• Power
• Analog and digital supplies merging as close to
  the pad as possible
• Wide supply busses at the top metal
• Pads
• Electrostatic discharge protection within the
  custom designed analog I/O pads

35
PLL Performance Comparison
36
Single-Ended vs Differential Control

• For a given frequency range
• Vdd KVCO

• Increased KVCO causes a higher sensitivity to the
  control line perturbation

• For Vctrl Vmcos?mt

• Differential Control Line
• Doubles Dynamic Range to drop the spur level by
  50
• Common mode rejection lowers the spur levels

37
PLL Measurement Summary
PLL at 1.8 GHz PLL at 5.8 GHz PLL at 2.5 GHz
Control path single-ended single-ended differential
VCO type 9-stage multi-pass ring 3-stage multi-pass ring LC
VCO range (MHz) 1120-1860 5160-5930 2392-2525
Output lock-in range (MHz) 1180-1840 5310-5840 2402-2518
Input lock-in range (MHz) 74-115 166-182.5 150.1-157.4
VCO gain (MHz/V) 770 793 68
Division ratio 16 32 16
Charge-pump gain (µA/rad) 11.14 11.14 11.14
C1 (nF) 10 10 10
C2 (pF) 50 50 50
C3 (pF) 50 50 50
R1 (O) 680 680 680
R2 (O) 1500 1500 1500
Phase margin 68.66 73.38 54.92
PLL bandwidth (kHz) 529.58 248.37 194.36
Output RMS jitter (ps) 1.7 2.6 3.5
Phase noise _at_ 1MHz offset (-dBc/Hz) 116 110 123
Power (mW) 112 50 5
38
PLL Performance Comparison - I
Maximum frequencies of published PLLs
Phase noise versus maximum frequency
39
PLL Performance Comparison - II
Reported output jitter vs measured jitter
Reported normalized jitter vs measured jitter
40
Clean vs Noisy Supply Voltage

• Increase in jitter
• Single-ended 20-35 times
• Differential 6 times

PLL Type Oscillation control path RMS phase jitter (ps) RMS phase jitter (ps)
PLL Type Oscillation control path clean supply voltage noisy supply voltage
1.8 GHz single-ended 1.7 60
5.8 GHz single-ended 2.6 50
2.5 GHz differential 3.5 20
Periodic cycle-to-cycle jitter in noisy
environment significance of the control line
noise
41
Control Line Noise Reduction
42
PLL Phase Noise Improvement - I

• ? Temperature ? ? Leakage Loss of lock at low
  frequencies
• Solution Multiple reset pulses in lock up, dn
• Solution Adaptive multiple pulses in lock up,
  dn

43
PLL Phase Noise Improvement - II
Static Phase Error Improvement

• Best case phase skew for
• ICP 70 µA
• ILEAKAGE 0.01 ICP
• ICP modulation by CMFB up to 30µA

44
PLL Phase Noise Improvement - III

• M 8
• 6dB improved output spur level

• M 32
• 20dB improved output spur level

45
Oscillation Control Summary in Charge Pump PLL

• Periodical disturbance of the VCO control line
• Process, voltage, and temperature (PVT)
  variations of the LPF components
• Large area consumption by LPF components
• Limited acquisition time
• Analog control drawbacks determined by CMOS
  trends
• Reduced linear range (decreasing supply voltage)
• Significant leakage and weak-inversion currents
  (decreasing feature size)
• Power supply and substrate noise (increasing
  integrity)

46
Digital Control and Analog Oscillator

• Immune to current leakage
• Immune to supply/substrate noise
• Tolerant to process variations
• Semi-custom loop design
• Monitoring of the internal loop states
• Quantization noise introduced by the DAC

Precision in oscillation control
47
Pulse-Stream Coded Phase-Locked Loop
48
Pulse-Stream Coded Phase-Locked Loop
A novel method to render digital
control Phase/frequency comparison coded by
pulse trains
Dual Pulse-Stream PFD
Single Pulse-Stream PFD
49
A Simplified Pulse-Stream Coded PLL Prototype
Single Pulse-Stream PFD

• 0.18µ TSMC CMOS
• Highly parameterized for testing basic
  characteristics
• 3-stage current-controlled oscillator
• Active load differential pair stages
• 4-bit shift register

50
A Simplified Pulse-Stream Coded PLL Prototype
Control Signals

• Control 1 pulse width (1-1.6ns)
• Control 2,3 delay (0.2-1.5ns)
• Control 4 DAC step current
• Control 5 CCO bias (100-200 MHz)

51
A Simplified Pulse-Stream Coded PLL Prototype

• Control line characteristic
• Frequency modulated reference
• VCO lagging current increase
• VCO leading current decrease

Simplified psc-PLL

• Slow frequency tracking
• Equally weighted control word
• No phase lock due to very low resolution
• Low number of bits
• Equally weighted control word

52
Next Generation Pulse-Stream Coded PLL
53
Next Generation Pulse-Stream Coded PLL

• Monotonic binarily-weighted DAC and Counter
• Faster capture
• Higher resolution
• Larger area

Quantization noise

• CCO gain 100 KHz/µA
• Tuning range 100 MHz

54
Single-Pulse Train PFD - Behavior
MODIFY output
Discrete Characteristic
Overall (MODIFY DIRECTION) Response
55
Single-Pulse Train PFD - Implementation
sptPFD1
sptPFD2
sptPFD3
Gated oscillator

• Pulldown strength
• Low big dead zone
• High noise sensitive operation
• Low dead zone (80ps)
• High power dissipation in lock (1.4mW)

• Dead zone is a random variable

• Low dead zone when output negative edge is
  utilized (70ps)
• Low power dissipation in lock (20µW)

tdead-zone,min lt tdz lt tdead-zone,min Tclk
(1-duty cycle)
56
Truncated UP/DOWN Counter - Implementation
Worst case propagation delay for 8-bit UP/DN
counter

• Manchester-like carry look ahead adder

Counter Length (bits) Minimum TCLK (ps)
4 570
5 700
8 1200
57
DAC and CCO - Implementation

• After continuous time VCO characterization,
  number of bits can be determined by

58
Pulse-Stream Coded PLL - Stability
F(z) digital filter m number of short pulses
that would fit within a reference period T
Root-locus plot for F(z) 1/ (1 - z-1)
Root-locus plot for F(z) (1 0.5z-1)/ (1 -
z-1)
UNSTABLE
STABLE FOR
59
Pulse-Stream Coded PLL Control Line at Lock
60
PLL Design Procedure
61
Conclusions

• Basics of PLL operation were shown in a unique
  control centric flow
• Single-ended CPPLLs with ring VCOs were designed
  and tested for low-noise multi-GHz applications
  that previously required CPPLLs with LC-VCOs
• Design of a low-noise 1.8 GHz CPPLL
• Design of a low-noise 5.8 GHz CPPLL
• An exceptionally performing differential CPPLL
  was implemented with a unique charge pump and a
  unique CMFB scheme
• Physical design considerations were summarized
  for low-jitter PLLs
• The significance of the control line noise at
  lower frequencies was addressed along with
  possible solutions
• A novel method for digitizing the control line
  was described Pulse-Stream Coded PLL

62
Future Research

• Limits of a single-ended PLL design when used
  along with a voltage regulator
• The differential control with the unique CMFB
  scheme can be utilized to drive higher-Q
  oscillators to note top-notch measurements
• The control line noise reduction techniques can
  be further studied along with various test
  structures
• Pulse-stream coded PLLs can be considered in
  dual-loop PLLs as coarse-tuning blocks

63
Questions
