Dependability Considerations in Distributed Control Systems

1

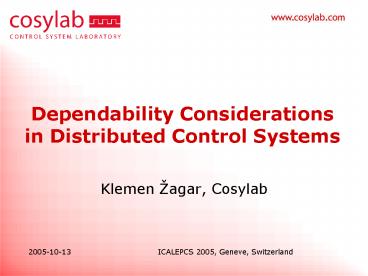

Dependability Considerations in Distributed
Control Systems

• Klemen Žagar, Cosylab

2
Dependability

• A dependable system is one which the users may
  trust.
• Examples of dependable distributed systems
• The Internet
• Power distribution grid
• Water supply
• Dependability is very general term. Among others,
  it covers
• Availability it is there when needed.
• Reliability it can work autonomously for a long
  period of time.
• Maintainability easily fixed when broken.
• Safety will not harm other equipment or
  personnel.
• Security unauthorized, possibly malicious, users
  can not gain control

3
Motivation

• Nodes of a distributed system are like dominos
• The domino effect one falls, all may go down
• May happen often, and takes a long time to
  rebuild
• Thus, fault tolerance is important
• Improved mean-time-to-failure of the system as a
  whole
• Lower mean-time-to-repair
• Improved availability
• Reduced maintenance effort
• Fault tolerance in distributed control systems?

4
Research Objectives

• Dependable Distributed Systems (DeDiSys) research
  project with the European Union.
• What are the most frequent causes of faults in
  distributed control systems?
• What mitigation mechanisms are available?
• How to improve availability by trading it against
  constraint consistency?
• What is constraint consistency in control systems?

5
Reliability

• Reliability, , is the probability that a
  system will perform as specified for a given
  period of time.
• Typically exponential
• Alternative measure is the mean time to failure
  (MTTF/MTBF)

6
Reliability of Composed Systems

• Weakest link reliability of a coupled composed
  system is less than the reliability of its least
  reliable constituent
• Redundancy reliability of a redundant subsystem
  is greater than the reliability of its most
  reliable constituent

7
Maintainability and Availability

• Maintainability how long it takes to repair a
  system after a failure.
• The measure is mean time to repair (MTTR)
• Availability percentage of time the system is
  actually available during periods when it should
  be available.
• Directly experienced by users!
• Expressed in percent. In marketing, also with
  number of nines(e.g., 99.999 availability ?
  unavailable 7 min/year).
• Example a gas station (working hours 6AM to 10PM
  16 hours)
• Ran out of gas at 10AM (2h)
• Pump malfunction at 2PM (2h)
• Availability 12h/16h 75

8
Research Methodology

• Research in the context of the DeDiSys project
• Collection of requirements from
• DeDiSys projects interest group members
• Cosylabs customers (e.g., ANKA, SLS, ...)
• Identification of scenarios
• ALMA Common Software (ACS)
• EPICS
• Geographical Information Systems
• Definition of the architecture for a
  fault-tolerance naming service (FTNS)

9
Faults in Distributed Systems

• Node failures
• A host crashes or a process dies
• Volatile state is lost
• Link failures
• A network link is broken
• Results in two or more partitions
• Difficult to distinguish from a host crash

• Consequences
• Affected services are lost
• Dependent systems malfunction
• User interface doesnt show actual status

10
Improving Hardware MTTF

• Reduce the number of mechanical parts
• Solid-state storage instead of hard disks
• Passive cooling of power supplies and CPUs (no
  fans)
• High-quality or redundant power supplies
• Replication
• network links
• CPU boards
• Remote reset (e.g., via power cycling)

11
Improving Software MTTF

• Ensure that overflows of variables that
  constantly increase (handle IDs, timers,
  counters, ...) are properly handled.
• Ensure all resources are properly released when
  no longer needed (memory leaks, )
• Use a managed platform (Java, .NET)
• Use auto-pointers (C)
• Avoid using heap storage on a per-transaction
  basis (may result in memory fragmentation) e.g.,
  use free-lists
• Restart a process in a controllable fashion
  (rejuvenation)
• Isolate processes through inter-process
  communication
• Recovery
• Recover state after a crash
• Effective for host and process crashes
• Automated repair

12
Decreasing MTTR

• Foresee failures during design
• The major difference between a thing that might
  go wrong and a thing that cannot possibly go
  wrong is that when a thing that cannot possibly
  go wrong goes wrong it usually turns out to be
  impossible to get at or repair.
• Douglas Adams Mostly Harmless
• Provide good diagnostics
• Alarms
• Detailed description of where and when an error
  occurred
• Logs
• State-dump at failures
• ADC buffers after a beam dump
• Status of synchronization primitives
• Memory dump
• Automated fail-over
• In combination with redundancy
• Passive replica must have up-to-date state of the
  primary copy
• Fault detection (network ping, analog signal, )

13
Consistency/Availability Trade-Off
Consistency
Availability

• Finance
• Banking
• Access control
• Corporate databases

Control systems Air-traffic control Fly-by-wire Dr
ive-by-wire
14
Constraint Consistency in Control Systems

• Constraints rules that one or more objects must
  satisfy, for example
• If and only if serverChannel.monitors.contains(cli
  ent)then client.isSubscribedTo(serverChannel)
• serverChannel.value clientChannel.value
• server.getFromDatabase(x) database.get(x)
• If client.referencesComponent(component)then
  component.isReferencedBy(client)
• Can some constraints be temporarily relaxed in
  presence of faults?
• If so, how to reconcile the system in a
  consistent state when faults are removed?

15
Future Work

• DeDiSys
• Design and implementation (due January 2007)
• Validation (due June 2007)
• Possible inclusion of research findings in
  control system infrastructures
• ACS (e.g., replication of the manager and
  components)
• EPICS (e.g., V4 fault-tolerance efforts of the
  EPICS community)
• Inclusion in products
• The microIOC platform
• Servers for Geographical Information Systems
• Other high-availability products
  (telecommunications, automotive)
• Know-how for consulting and development services

16
Conclusion

• Distributed systems are inherently fragile
• Fault tolerance is difficult to program
• Should be addressed by infrastructure/middle-ware,
  but frequently isnt
• Comments/questions/contributions
  klemen.zagar_at_cosylab.com
