Title: Miniaturizing Computers: Evolution of Processors


1

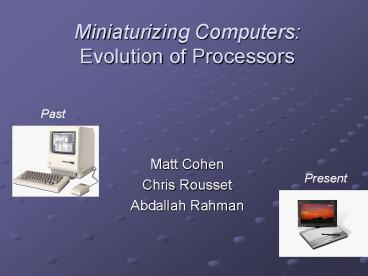

Miniaturizing Computers Evolution of Processors
Past
  • Matt Cohen
  • Chris Rousset
  • Abdallah Rahman

Present
2
The Processor
  • A central processing unit (CPU), or sometimes
    simply processor, is the component in a digital
    computer that interprets computer program
    instructions and processes data. CPUs provide the
    fundamental digital computer trait of
    programmability, and are one of the necessary
    components found in computers of any era, along
    with primary storage and input/output facilities.
    Beginning in the mid-1970s, microprocessors of
    ever-increasing complexity and power gradually
    supplanted other designs, and today the term
    "CPU" is usually applied to some type of
    microprocessor.

3
The 65nm Processor
  • The technology of today
  • Benefits of the 90-65nm cross-over
  • Increase in multimedia performance (video, audio,
    data streaming)
  • Two new layers of hardware based security
    (protection against hackers and viruses)
  • Advanced manageability for IT (remote problem
    resolution)
  • Acceleration technology that improves the speed
    for network traffic (faster download and
    communication)

4
The 65nm Processor
  • The 65nm technology
  • 35nm gate length
  • 1.2nm gate oxide
  • NiSi for low resistance
  • 2nd generation strained Silicon
  • for enhanced performance
  • These features prevent transistor leakage and
    reduce power consumption

5
The 45nm Processor
  • Benefits of the 65-45nm cross-over
  • Twice improvement in transistor density
  • Five times reduction in source-drain leakage
    power
  • 20 improvement in transistor switching speed
  • 30 reduction in transistor switching power
  • Ten times reduction in transistor gate oxide
    leakage for lower power requirements and
    increased battery life
  • More performance for exponentially less cost

6
The 45nm Processor
  • The production
  • Intel is on track for 45nm production in the
    second half of 2007
  • AMD and IBM expect the first 45nm products using
    immersion lithography and ultra-low-K
    interconnect dielectrics to be available in
    mid-2008

7
The Future
  • Intel plans to use extreme ultra-violet
    lithography to print elements as small as 32 nm
    and beyond (expectations 2009)
  • AMD and IBM will cooperate to devise techniques
    for manufacturing chips using the 32-nanometer
    and 22-nanometer processes (expectations 2009 and
    2011)
  • Other options include replacing the use of
    Silicon by other materials such as Germanium
  • Another development relates to the use of
    Graphene

8
The Use of Germanium
  • Why replacing Silicon?
  • For the past four decades the silicon industry
    has delivered a continuously improving
    performance at ever-reduced cost
  • Those breakthroughs were achieved by physical
    scaling of the silicon device
  • Physical limitations such as off-state leakage
    current and power density pose a potential threat
    to the performance enhancement that can obtained
    by geometrical scaling
  • Strain engineering has quickly emerged as a new
    scaling vector for performance enhancement to
    extend the life of silicon
  • But what will happen next?

9
The Use of Germanium
  • Why using Germanium?
  • As seen in class mobility is one of the most
    important characteristics for electronic
    applications
  • According to the International Technology Roadmap
    for Semiconductors, even with strain engineering,
    metal gates and high-k dielectrics,
    semiconductors with higher mobility will be
    needed to continue scaling beyond the 22nm
    technology node
  • III/IV compounds such as InSb, InAs or InGaAs
    have high electron mobility but same hole
    mobility as Si which is an issue for p-MOS
    devices
  • Germanium is one solution

10
The Use of Germanium
Properties Si Ge GaAs
Atoms/cm3 5.02 x 1022 4.42 x 1022 4.42 x 1022
Effective mass electrons (m/m0) 0.26 0.082 0.067
Effective mass holes (m/m0) 0.69 0.28 0.57
Electron affinity (V) 4.05 4.0 4.07
Energy gap (eV) 1.12 0.67 1.42
Mobility electrons (cm2/V s) 1500 3900 8500
Mobility holes (cm2/V s) 450 1900 450
11
The Use of Germanium
  • Problems with the use of Ge
  • Germanium use will allow research and development
    to reach the 22nm node however
  • The low bandgap (0.67eV) and low melting point
    (937C) poses challenges for device design and
    process integration
  • Ge wafers offer poor mechanical strength and are
    much more expensive than Si wafers
  • For n-MOS devices the presence of specific
    surface defects directly degrade the channel
    mobility and limit the current drive

12
The Use of Graphene
  • Carbon nanotubes
  • Metallic nanotubes display quantized ballistic
    conduction at room temperature
  • conductance can be controlled by applying an
    electrostatic gate
  • Have already been used to make simple transistors
    and logic gates
  • Low-dimensional graphite structures
  • Have almost identical properties of carbon
    nanotubes
  • EX Graphene Ribbon

13
Nanotubes
  • Nanotubes many limitations
  • - limited consistency in size and electric
    properties
  • - Difficulty integrating nanotubes into
    electronics efficiently
  • - High electrical resistance at junctions
    between nanotubes and the
  • wires connecting them.
  • The solution Using Graphene layers or ribbons
  • - Exact same properties as Carbon nanotubes with
    out
  • the limitations.

14
Graphene layers
  • Advantages
  • The graphene layers are only 10 atoms thick
  • (Miniaturization)
  • High efficiencies and low power consumption
  • Devices made from graphene layers can be made
    using standard micro-electric processing
    techniques
  • (Mass production of graphene devices)
  • Such standard lithographic methods

15
The Progress of Graphene Transistors
  • Many universities have created transistors from
    graphene, approximately 80nm
  • The goal is to make these transistors 10nm
  • where the devices will display ballistic
    transport.

Single-electron logic A single-electron
transistor carved entirely in a graphene sheet.
The central element is a so-called quantum dot,
which allows electrons to flow one by one. The
dot is connected to wider regions that have
contact pads used to turn the transistor on and
off. Credit University of Manchester
16
Problems with Graphene
  • Early Graphene resistors leaked current
  • Working on single electron transistor using
    quantum dots to solve this problem.
  • Quantum dots at room temperature are not stable
    enough.
  • No fabrication techniques available to produce
    the 3nm quantum dots needed for the single
    electron transistor.
  • This requires the manufacturer to once again rely
    on luck to produce the right sized quantum dot.
    This brings us back to square one as it is a
    similar problem with nanotubes.

17
Quantum Computers
  • The future
  • Qubits can similtaniously be 1 and 0 at the
    same time, compared to bits which can only be 1
    or 0.
  • Quantum computer processes information using
    atoms and other tiny
  • particles (Qubits), rather than transistors
  • -EX electron (Spin up down), Photon
    (Polarization of light horizontal, vertical)
  • Entanglement- quantum mechanical phenomenon where
    the quantum states of two or more objects or
    qubits have to be described with reference to
    each other.
  • - For example, two photons can be entangled such
    that if one is horizontally polarized, the other
    is always vertically polarized
  • -key to quantum computers
  • -this is what gives the quantum computer its
    advantage along with being simultaneously on and
    off.
  • In principle a quantum computer will be able to
    outperform a classical computer in certain tasks

18
Problems of the Quantum Computer
  • Controlling the interaction between many
    qubits"The issue isn't how many qubits, it's how
    many well-controlled qubits," Steane says
  • Detecting what stat the qubits are in

19
Sources
  • http//www.nature.com
  • http//physicsweb.org/articles/news/8/6/18
  • http//gtresearchnews.gatech.edu/newsrelease/graph
    ene.htm
  • http//www.technologyreview.com/Infotech/18264/pag
    e1/
  • http//www.physics.gatech.edu/npeg/npeg.html
  • http//en.wikipedia.org/wiki/Moore's_law
  • http//www.eetimes.com/news/semi/showArticle.jhtml
    ?articleID196901271
  • http//www.amd.com/us-en/Processors/ProductInforma
    tion/0,,30_118_9485_130415E14633,00.html
  • http//www.intel.com/technology/silicon/65nm-cross
    -over.htm
