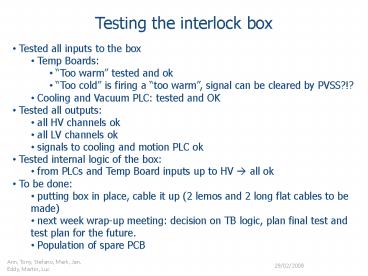

Testing the interlock box

1
Testing the interlock box

• Tested all inputs to the box
• Temp Boards
• Too warm tested and ok
• Too cold is firing a too warm, signal can be
  cleared by PVSS?!?
• Cooling and Vacuum PLC tested and OK
• Tested all outputs
• all HV channels ok
• all LV channels ok
• signals to cooling and motion PLC ok
• Tested internal logic of the box
• from PLCs and Temp Board inputs up to HV ? all
  ok
• To be done
• putting box in place, cable it up (2 lemos and 2
  long flat cables to be made)
• next week wrap-up meeting decision on TB logic,
  plan final test and test plan for the future.
• Population of spare PCB

• Ann, Tony, Stefano, Mark, Jan, Eddy, Martin, Luc

29/02/2008
