Subversion

1

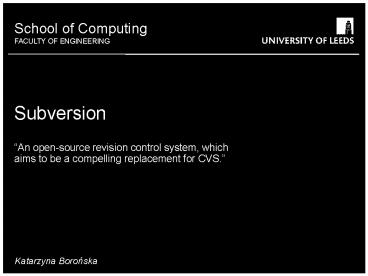

Subversion
School of Computing FACULTY OF ENGINEERING

• An open-source revision control system, which
  aims to be a compelling replacement for CVS.

Katarzyna Boronska
2

• Using a control version system

3
Why bother?

• Typical cases, when revision control is useful
• Ive changed something in my simulation between
  two weeks ago and now and nothing works anymore!
• I think one year ago my code was working with
  these parameters!
• I want to work on my code at home and at the
  office.
• I want to have a nice, working version, to give
  away and keep my untested version to myself.
• I want to share my code with a group of people.

4
You may have heard of...

• Some version control systems
• SVN (Subversion)?
• Git
• CVS (Concurrent Version System)?
• Visual SourceSafe
• RCS
• Some other names for version control system
• revision control
• source control
• source code management

5
Basic usage

• Create repository
• Import initial project
• Get the most recent version into a local
  directory
• Make changes locally (and test)?
• Submit changes to repository

once
everyday use
6
Viewing differences

• View history of changes
• which files were changed
• when
• by which user
• what log messages say
• View changes with diff

7
Sharing the code

• Create repository, import initial project.
• Set up access rights for others.
• Get the most recent version into a local
  directory.
• Make changes locally, test them.
• Update again, resolve conflicts, test.
• Register changes to repository.

once
everyday use
8
Branching
branch
main trunk
initial import
v. 1.0
branch
time

• create branches
• compute differences between changes
• maintain, abandon branch or apply changes to the
  main trunk

9

• Using Subversion

10
Setting up the project repository

• Create repository
• gt svnadmin create /flow
• Import initial project
• gt svn import /tmp/flow file///home/kb/flow/trunk
  -m "initial import"
• For more than one user
• Set up access rights for others
• for your unix group (below)?
• with an SVN server, e.g. http/https server access
  control (root task)?
• gt cd /flowgt chmod grwx db db/transactions
  db/revs db/revprops db/write-lock locksgt chmod
  -R gr db db/revs db/revprops locksgt chmod -R
  gr hooks

11
Basic usage

• Get the code
• gt svn checkout file///home/kb/flow/trunk flow
• gt svn co svnssh//kb_at_comp.uk/home/kb/flow/trunk
  flow
• Update checked-out version
• gt cd flow svn update
• Review your changes
• gt svn status
• gt svn diff
• Make your changes
• Register your changes
• gt svn commit

once per location
everyday use
? heateq.kdevelop.pcs M
heateq.kdevelop ? src/heat M
src/adapted.h M src/f2c.c M config.h
write a log message, when prompted.
12
Viewing differences

• revision numbering
• each commit - new revision number for the whole
  project
• view changes log
• gt svn log -r 102103
• view changes with diff
• gt svn diff adapted.h
• check out an old version
• gt svn checkout -r 54 file///home/kb/flow/trunk
  flow_r54

Index adapted.h
--- adapted.h (revision 118)?
adapted.h (working copy)? _at__at_ -28,7 28,7 _at__at_
typedef struct node d_t posX, posY - d_t
cval, cold d_t hval, pval, cold struct node
next struct node top struct node
left _at__at_ -98,15 98,16 _at__at_
--------------------------------------------------
---------------------- r102 kb 2008-09-09
111346 0100 (Tue, 09 Sep 2008) 1
line Switched to GSL (GNU Scientific Library)
CBLAS. Now we don't need any longer Jan's
pre-compiled ../header and ../lib
directories. -------------------------------------
----------------------------------- r103 kb
2008-09-24 152823 0100 (Wed, 24 Sep 2008) 2
lines Switched from absolute to relative
tolerance in the "exact" solver in
v_cycle. Removed COARSEST_LEVEL lt MIN_LEVEL
condition from main. -----------------------------
-------------------------------------------
13
Other basic commands

• add
• gt svn add stencil_9points.c
• delete
• gt svn delete stencil_simple.c
• info
• revert
• gt svn revert stencil_simple.c
• merge
• export
• gt svn export file///home/kb/flow/trunk
  flow_2009_01_20
• copy
• gt svn copy file///home/kb/flow/trunk
  \file///home/kb/flow/tags/v_beta -m "tagging
  ver. beta"

14
Common traps

• working on an out-of-date version
• neglecting log messages
• committing too seldom
• working on non-subversion version
• forgetting to add files, if working with only one
  check-out

15
Graphical clients

• KDevelop
• Eclipse
• Anjuta
• TortoiseSVN
• RapidSVN
• SmartSvn
• eSVN
• Subcommander
• TkSVN
• emacs

users choice, per location
16
KDevelop
17
RapidSVN
18

• Thank you!
