Title: PMBOK SECTION II: The Project Management Knowledge Areas


1

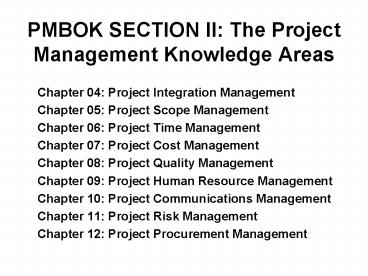

PMBOK SECTION II The Project Management
Knowledge Areas
  • Chapter 04 Project Integration Management
  • Chapter 05 Project Scope Management
  • Chapter 06 Project Time Management
  • Chapter 07 Project Cost Management
  • Chapter 08 Project Quality Management
  • Chapter 09 Project Human Resource Management
  • Chapter 10 Project Communications Management
  • Chapter 11 Project Risk Management
  • Chapter 12 Project Procurement Management

2
Chapter 4 Project Integration Management
3
Project Integration Management
  • The processes required to ensure that the various
    elements of the project are properly coordinated.
  • Making tradeoffs among competing objectives and
    alternatives to meet or exceed stakeholder needs
    and expectations.

4
Project Integration ManagementMajor Processes
  • Project Plan Development.
  • Project Plan Execution.
  • Integrated Change Control.
  • The PIM processes interact with each other and
    processes in the other knowledge areas.

5
Overview of Project Integration Management Major
Processes
6
Project Plan Development
  • Project plan development uses the outputs of the
    other planning processes, including strategic
    planning, to create a consistent, coherent
    document that can be used to guide both project
    execution and project control.

7
Project Plan Usage
  • Guide project execution.
  • Document project planning assumptions.
  • Document project planning decisions regarding
    alternatives chosen.
  • Facilitate communication among stakeholders.
  • Define key management reviews as to content,
    extent, and timing.
  • Provide a baseline for progress measurement and
    project control.

8
Project Plan Inputs Tools Techniques - Outputs
9
Project Plan Inputs
  • Other planning outputs - All outputs of planning
    processes in the other knowledge areas are inputs
    to developing the project plan.
  • Other planning outputs include both base
    documents, such as the WBS, and supporting
    details.
  • Many projects require application area-specific
    inputs.
  • Historical information - available historical
    information should have been consulted during the
    other project planning processes.
  • Historical information aids in verifying
    assumptions and assessing identified
    alternatives.

10
Project Plan Inputs - cont
  • Organizational policies (formal and informal)
    policies whose effects must be considered, such
    as
  • Quality managementprocess audits, continuous
    improvement targets.
  • Personnel administrationhiring and firing
    guidelines, employee performance reviews.
  • Financial controlstime reporting, required
    expenditure and disbursement reviews, accounting
    codes, standard contract provisions.
  • Constraints - an applicable restriction that will
    affect the performance of the project.
  • Assumptions - factors considered to be true,
    real, or certain.
  • Assumptions affect all aspects of project
    planning, and are part of the progressive
    elaboration of the project.
  • Project teams frequently identify, document, and
    validate assumptions during the planning process.

11
Project Plan Tools Techniques
  • Project planning methodology - any structured
    approach used to guide the project team during
    project plan development
  • Most project planning methodologies make use of a
    combination of "hard" tools, such as project
    management software, and "soft" tools, such as
    facilitated startup meetings.
  • Stakeholder skills and knowledge.
  • Project management information system (PMIS) -
    the tools and techniques used to gather,
    integrate, and disseminate the outputs of project
    management processes.
  • Earned value management (EVM) - a technique used
    to integrate the project's scope, schedule, and
    resources and to measure and report project
    performance from initiation to closeout.

12
Project Plan Outputs
  • Project plan - a formal, approved document used
    to manage project execution.
  • Supporting detail.
  • Outputs from other planning processes not
    included in the project plan.
  • Additional information or documentation generated
    during project plan development such as
    constraints and assumptions.
  • Technical documentation, such as a history of all
    requirements, specifications, and conceptual
    designs.
  • Documentation of relevant standards.
  • Specifications from early project development
    planning.

13
Project Plan Components
  • Project charter.
  • A description of the project management approach
    or strategy.
  • Scope statement that includes the project
    objectives and deliverables.
  • WBS to the level at which control will be
    exercised, as a baseline scope document.
  • Cost estimates, scheduled start and finish dates,
    and responsibility assignments for each
    deliverable within the WBS to the level at which
    control will be exercised.
  • Performance measurement baselines for technical
    scope, schedule, and cost.
  • Major milestones and target dates for each.
  • Key or required staff and their expected cost
    and/or effort.
  • Risk management plan that includes key risks,
    constraints and assumptions, and planned
    responses and contingencies for each.
  • Subsidiary management plans.
  • Open issues and pending decisions.

14
Project Plan Execution
  • The primary process for carrying out the project
    plan.

15
Project Plan Execution Inputs Tools Techniques
- Outputs
16
Project Plan Execution Inputs
  • Project plan - the subsidiary management plans
    and performance measurement baselines.
  • Supporting detail.
  • Organizational policies.
  • Preventive action any action that reduces the
    probability of potential consequences from
    project risk events.
  • Corrective action any action done to bring
    expected future project performance in line with
    the project plan.
  • Corrective action is an output of the various
    control processes (completes PM feedback loop).

17
Project Plan Execution Tools and Techniques
  • General management skills such as leadership,
    communicating, and negotiating.
  • Product skills and knowledge.
  • Work authorization system - a formal procedure
    for sanctioning project work (typically a written
    authorization to begin work on a project activity
    or work package).
  • Status review meetings - regularly scheduled
    meetings at various frequencies and different
    levels to exchange information about the project.
  • Project management information system.
  • Organizational procedures - formal and informal
    procedures that are useful during project
    execution.

18
Project Plan Execution Outputs
  • Work results - outcomes (tangible and intangible
    deliverables) of the activities performed to
    accomplish the project.
  • deliverables collected as part of project plan
    execution and fed into the performance reporting
    process.
  • Change requests relative to project baseline
    parameters (scope, costs, schedule, etc).

19
Integrated Change Control
  • Influencing the factors that create changes to
    ensure mutually agreed upon changes.
  • Determining that a change has occurred.
  • Managing actual changes as they occur.

20
Coordinating Changes Across the Entire Project
21
Integrated Change Control Inputs Tools
Techniques - Outputs
22
Integrated Change Control Inputs
  • Project plan - provides the baseline against
    which to control changes.
  • Performance reports - information on project
    performance used to alert the project team to
    project issues.
  • Change requests.
  • Oral or written.
  • Direct or indirect.
  • Externally or internally initiated.
  • Legally mandated or optional requests.

23
Integrated Change Control Tools and Techniques
  • Change control system - a collection of formal,
    documented procedures that defines how project
    performance will be monitored and evaluated and
    steps by which official project documents may be
    changed.
  • Paperwork.
  • Tracking systems.
  • Processes.
  • Approval levels for authorizing changes.
  • Changes that may be automatically approved
    without prior review.
  • Configuration management - any documented
    procedure used to apply technical and
    administrative direction and surveillance to
  • Identify and document the functional and physical
    characteristics of an item or system.
  • Control any changes to such characteristics.
  • Record and report the change and its
    implementation status.
  • Audit the items and system to verify conformance
    to requirements.
  • Performance measurement.
  • Additional planning.
  • Project management information system (PMIS).

24
Integrated Change Control Outputs
  • Project plan updates - any modification to the
    project plan or supporting detail contents
    (stakeholder notification).
  • Corrective action.
  • Lessons learned
  • Causes of variances.
  • Reasoning behind chosen corrective actions.
  • Other types of lessons learned.
  • Become part of the historical database for both
    the project and other projects of the performing
    organization (the basis for knowledge management).

25
Chapter 5 Project Scope Management
