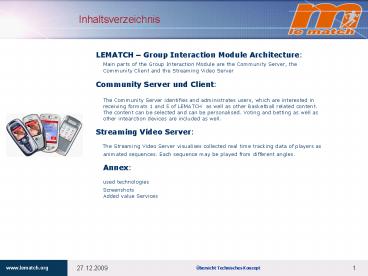

• LEMATCH Group Interaction Module Architecture
• Main parts of the Group Interaction Module are
  the Community Server, the Community Client and
  the Streaming Video Server
• Community Server und Client
• The Community Server identifies and
  administrates users, which are interested in
  receiving formats 1 and 5 of LEMATCH as well as
  other Basketball related content. The content can
  be selected and can be personalised. Voting and
  betting as well as other intearction devices are
  included as well.
• Streaming Video Server
• The Streaming Video Server visualises collected
  real time tracking data of players as animated
  sequences. Each sequence may be played from
  different angles.
• Annex
• used technologies
• Screenshots
• Added value Services

2
Lematch Community Server
Lematch Mobile Community Client
Lematch Mobile Community Server
Existing BBL Backend
Mobile Internet
Statistics
Identity Mgmt
Live Reports
Preferences
News
Personal Profile
Internet
Pictures
Billing Interface
3
Community Server and Client
Schematic Setup, Community Server Client
HTTP OTA over IP
HTTP over IP
Client API
Server API
Server Stub
Client Stub
Java Smart phone UI
Admin Webuser Application
DB
PGP encrypted
SQL over Intranet
DB
4
Used technologies
Integration, Server and End devices

• The basis for the Lematch client implementation
  is the Java MIDP 2.0 platform as well as Windows
  Mobile 5.0.
• Lematch clients have their own persistency and
  are fully working in offline mode with the
  exception of the real time voting and betting
  features. News and statistics are stored locally
  on the device.
• Communication between the Lematch server and the
  portals (backend) is based on XML. Required
  XML-feeds may be gathered from the portals.
• Lematch server implementiation is based on Java
  J2EE and a simple Apache Webserver, optionally a
  Zope-based system.
• Data management for the community and all their
  events is part of the Lematch server.
• The Lematch server contains a billing and
  clearing interface, there is no money transfer.

5
Streaming Video Sequences
Tracking Data are transfomred into animated
sequences

• Wireless object and camera tracking results in
  capturing players data live and in real time.
• The Lematch Streaming Video Server transforms
  such data into animated sequences
• The data source is a video data source which
  visualises the collected tracking data and
  transforms them in short animated sequences
  (movies)
• Via the Lematch Community Server users can
  subscribe to several of these video feeds.

6
Streaming Video Provisioning
Lematch Mobile Streaming Server Workflow

• Phone asks for animated sequence for a specific
  event
• Lematch Streaming Server asks for position data
  for a specific event
• Existing data source delivers position data
  sequence
• Lematch Streaming Server generates animated
  sequence
• Lematch Streaming Server delivers animated
  sequence to phone

Existing Data Feeds
Lematch Mobile Streaming Server
Live Tracking Data
Animation Sequence Generation
XML
Animation sequence request
data request
7
Use Technolgies
Streaming Video Provisioning

• Exchange between the tracking data sources and
  Steaming Video Server is via XML
• Streaming Server generates a compressed vector
  graph , optional SVG
• Tracking data will be put together with a
  timeline as vector graphs in the form of an
  animated sequence , which uses much less band
  width as video
• A 2D graphics player on the client side is able
  to store and display animated sequences with
  little processing power.

8
Screenshots
Teams, Logos und Games
9
Screenshots
News and Voting
10
Added Value Services
Infoportal AND Community Tool

• A sports community is geared towards basketball,
  defines itself via contacts to other community
  members, though.
• Betting and voting will give users the feeling to
  be able to influence the sport they like.
• A new source of rights selling is introduced for
  the sport rights association. This applies to
  other events music, other forms of betting, as
  well.
• A format which may be actively influenced by a
  user may also be purchased by a user.
