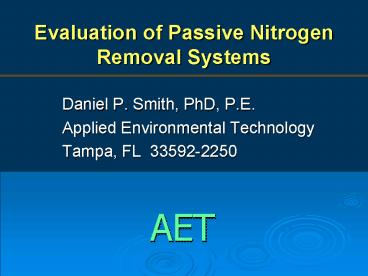

Evaluation of Passive Nitrogen Removal Systems

1
Evaluation of Passive Nitrogen Removal Systems

• Daniel P. Smith, PhD, P.E.
• Applied Environmental Technology
• Tampa, FL 33592-2250

AET
2
Acknowledgements

• Florida Department of Health
• Elke Ursin, Eberhard Roeder, Paul Booher
• Dick Otis
• Mark Flint
• Damain Anderson
• Hillsborough County, Florida

3
Florida Passive Nitrogen Removal Study

• Objective evaluate enhanced nitrogen removal
  from on-site wastewater using passive systems
• Influent septic tank effluent
• Goal reduce total nitrogen

4
Florida Passive Nitrogen Removal Study Tasks

• Literature review and database
• Experimental evaluation
• Feasibility
• Economic analysis

5
Passive Definition

• A type of onsite sewage treatment and disposal
  system that excludes the use of aerator pumps and
  includes no more than one effluent dosing pump in
  mechanical and moving parts and uses a reactive
  media to assist in nitrogen removal

6
Technology Constraints

• No aerators unsaturated filter for Stage 1
• One pump otherwise gravity flow
• where to place?
• Reactive media
• electron donor for denitrification
• alkalinity
• ion exchange

7
Two Stage Processfor TN Reduction

• Stage 1 unsaturated filter
• aerobic Organic N and ammonia
• produce low effluent TKN
• Stage 2 saturated
• anoxic oxidized N
• electron donor for denitrification produce
  low effluent NOx

8
Pump Before Stage 1 Filter

• Allows timed dosing
• Nitrification performance of Stage 1 filter
• Potential for Stage 1 recycle
• Flow equalization to entire treatment train
• Gravity flow through second stage filter to
  dispersal field

9
Media Evaluation System
10
Passive Nitrogen Removal StudyApplied
Environmental Technology
Stage 1 (unsaturated)
Stage 2 (saturated)
11
Media Selection Factors Stage 1 Aerobic
Unsaturated

• Particle size
• Specific surface area
• External porosity
• Air filled porosity
• Water retention capacity
• Cation Exchange Capacity (CEC)

12
Stage 1 Media (nitrification)
Expanded clay
Zeo-Pure clinoptilolite
Tire crumb
13
Media Selection Factors Stage 2 Anoxic
Saturated

• Reactivity electron donor release rate
• Longevity
• Alkalinity supply
• Anion Exchange Capacity (AEC)

14
Stage 2 Media (denitrification)
Expanded shale
Elemental sulfur
Oyster shell
15
Autotrophic Nitrogen Reduction
16
Filter Media
17
Expanded shale/oyster shell/elemental sulfur
18
Test Site Flatwoods Park, Hillsborough County,
Florida
19
Test Site Flatwoods Park, Hillsborough County,
Florida
20
Operating Features (one pass)
21
Nitrogen Loading
22
Feed Septic Tank Effluent
23
2 Stage System Effluent TN
24
Nitrogen Average (n5)
25
Two Stage Removal Efficiency
26
Total NitrogenRemoval Efficiency
27
Stage 2 Effluent LDO and pH Probes
28
Results Field Parameters
29
Stage 1 Removal Efficiency
30
Example System

• Stage 1 Aerobic
• 100 ft2 x 24 in. expanded clay
• Stage 2 Anoxic
• Sulfur/oyster/shale 60/20/20 volume Vanoxic
  1/4 Vaerobic
• Media cost Stage 1 700 / Stage 2 825

31
Theoretical Longevity of Electron Donor4 persons
_at_ 13 gram N/capita-day

32
Conclusions

• Proof of Two Stage Filter concept for Passive N
  Removal
• Single pass at 3 gal./ft2-day
• Total N removal of 97
• Total N reduced from 77 to 2 mg/L
• Longer term operation needed

33
Conclusions

• Stage 1 aerobic 99 NH4 reduction with
  clinoptilolite and expanded clay
• Stage 2 anoxic NOxlt0.5 mg/L and 99 reduction
  with sulfur-based denitrification
• Need to verify longevity of performance and media

34
(No Transcript)
35
Biochemical Transformations

• Organic N NH4 NO2- NO3-
  N2

Nitrification (Aerobic)
Denitrification (Anoxic)
Ammonification
36
Results Stage 1 Effluent NH4
37
Stage 1 TN Removal Efficiency
38
Florida Passive Nitrogen Removal Study Tasks

• Literature review and database
• Experimental evaluation
• Feasibility
• Economic analysis

39
Obligatory Biochemical Sequence for TN Reduction

• Aerobic Organic N ? NH4
• NH4 ? NO3
• Anoxic NO3 ? N2

40
Example On-Site Configuration
41
Media Selection Factors Stage 1 Aerobic
Unsaturated

• Particle size
• Specific surface area
• External porosity
• Air filled porosity
• Water retention capacity
• Cation Exchange Capacity (CEC)

42
Total Inorganic Nitrogen Removal Efficiency
