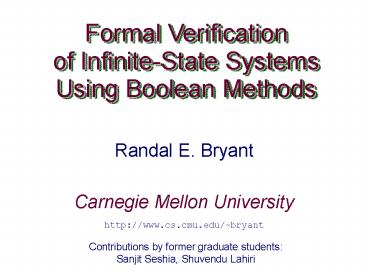

Formal Verification of Infinite-State
Systems Using Boolean Methods
Randal E. Bryant
Carnegie Mellon University
http//www.cs.cmu.edu/bryant
Contributions by former graduate students Sanjit
Seshia, Shuvendu Lahiri
2
Outline

• Task
• Formally verify abstract models of hardware and
  software systems
• Build on success in verifying finite models
• Infinite-State Models
• Need logic that is suitably expressive, yet
  remains reasonably tractable
• Verification Techniques
• Solve problems by mapping into propositional
  logic
• Proof engines can use powerful Boolean methods
• Different levels of automation and capacity

3
Theoretically Infinite-State Systems

• Systems with unbounded buffers
• Even though cant really build one

In Use



tail
head
4
Arbitrarily Large Finite-State Systems

• Synchronization protocol that should work for
  arbitrary number of processes
• Verify for arbitrary N
• Circular buffer with fixed, but arbitrary
  capacity
• Verify for arbitrary value of Max

In Use



tail
5
Existing Automatic Verification Methods

• Simulators, model checkers,
• All Operate at Bit Level
• State model
• State encoded as words and arrays of words
• Comprised of bits
• Must track how each bit of state gets updated
• Only Verify Single Instance of Design
• Fixed values for parameters
• Word size
• Buffer sizes
• Number of processes

6
What About Theorem Provers?

• Traditional Tool for Formal Verification
• Allow many forms of abstraction
• Hard to Use
• Lots of manual effort expertise required
• Question
• Can we incorporate some of these abstraction
  abilities into an automated tool?

7
Data Abstraction 1 Bits ? Integers
x0
x1
x2
xn-1

• View Data as Symbolic Words
• Arbitrary integers
• No assumptions about size or encoding
• Classic model for reasoning about software
• Can store in memories registers

8
Abstracting Data Bits
Control Logic
9
Abstraction 2 Uninterpreted Functions
f

• For any Block that Transforms or Evaluates Data
• Replace with generic, unspecified function
• Only assumed property is functional consistency
• a x ? b y ? f (a, b) f (x, y)

10
Abstracting Functions
Control Logic
Data Path
Com. Log. 1
Com. Log. 1

• For Any Block that Transforms Data
• Replace by uninterpreted function
• Ignore detailed functionality
• Conservative approximation of actual system

11
Modeling Data-Dependent Control
Branch?
Cond
Adata
p
Branch Logic
Bdata

• Model by Uninterpreted Predicate
• Yields arbitrary Boolean value for each control
  data combination
• Produces same result when arguments match

12
Abstraction 3 Modeling Memories as Mutable
Functions

• Memory M Modeled as Function
• M(a) Value at location a
• Initially
• Arbitrary state
• Modeled by uninterpreted function m0

13
Effect of Memory Write Operation

• Writing Transforms Memory
• M? Write(M, wa, wd)
• Reading from updated memory M?(a)
• Address wa will get wd
• Otherwise get whats already in M

14
Systems with Buffers
Circular Queue
Unbounded Buffer

• Modeling Method
• Mutable function to describe buffer contents
• Integers to represent head tail pointers

15
UCLID

• Seshia, Lahiri, Bryant, CAV 02
• Term-Level Verification System
• Language for describing systems
• Inspired by CMU SMV
• Symbolic simulator
• Generates integer expressions describing system
  state after sequence of steps
• Decision procedure
• Determines validity of formulas
• Support for multiple verification techniques
• Available by Download
• http//www.cs.cmu.edu/uclid

16
System Model

• State Variable Types
• Boolean
• Control signals
• Integer
• Data, addresses
• Function
• Memories, buffers
• System Operation
• Synchronous
• All state variables updated on each step of
  operation
• Interleaving
• One (set of) state variable(s) updated at a time
• Simulate in synchronous model with uninterpreted
  scheduling function

17
Modeling Example
Boolean state

• DLX Pipeline
• Single-issue, 5-stage pipeline

Integer state
Function state
Pipeline
Write Back
Fetch
Decode
Execute
Memory
18
Writing Reading Register File
19
Writing Register File
initRF rf0 ( Uninterpreted Function )
nextRF Lambda(a) . case mw_Valid
(a mw_Dest) mw_Data default
RF(a) esac
Write Back
RF
20
Reading Register File
initde_Arg1 dea10 ( Initially
arbitary ) nextde_Arg1 nextRF(src1(fd_In
str)) initde_Arg2 dea20 (
Initially arbitary ) nextde_Arg2
nextRF(src2(fd_Instr))
Write-before-read semantics
21
Underlying Logic

• Scalar Data Types
• Formulas (F ) Boolean Expressions
• Control signals
• Terms (T ) Integer Expressions
• Data values
• Functional Data Types
• Functions (Fun) Integer ? Integer
• Immutable Functional units
• Mutable Memories
• Predicates (P) Integer ? Boolean
• Immutable Data-dependent control
• Mutable Bit-level memories

22
CLU Logic

• Counter Arithmetic, Lambda Expressions and
  Uinterpreted Functions
• Terms (T ) Integer Expressions
• ITE(F, T1, T2) If-then-else
• Fun (T1, , Tk) Function application
• succ (T) Increment
• pred (T) Decrement
• Formulas (F ) Boolean Expressions
• ?F, F1 ? F2, F1 ? F2 Boolean connectives
• T1 T2 Equation
• T1 lt T2 Inequality
• P(T1, , Tk) Predicate application

23
CLU Logic (Cont.)

• Functions (Fun) Integer ? Integer
• f Uninterpreted function symbol
• ? x1, , xk . T Function definition
• Predicates (P) Integer ? Boolean
• p Uninterpreted predicate symbol
• ? x1, , xk . F Predicate definition

24
Decision Problem

• Circuit Representation of Formula
• Truth Values
• Dashed Lines
• Model Control
• Logical connectives
• Equations
• Integer Values
• Solid lines
• Model Data
• Uninterpreted functions
• If-Then-Else operation
• Task
• Determine whether formula F is universally valid
• True for all interpretations of variables and
  function symbols
• Often expressed as (un)satisfiability problem
• Prove that formula ?F is not satisfiable

25
Finite Model Property

• Observation
• Any formula has limited number of distinct
  expressions
• Only property that matters is whether or not
  different terms are equal

26
Boolean Encoding of Integer Values
Expression Possible Values Bit Encoding Bit Encoding
x0 0 0 0
d0 0,1 0 b10
f (x0) 0,1,2 b21 b20
f (d0) 0,1,2,3 b31 b30

• For Each Expression
• Either equal to or distinct from each preceding
  expression
• Boolean Encoding
• Use Boolean values to encode integers over small
  range
• CLU formula can be translated into propositional
  logic
• Logic circuit with multiplexors, comparators,
  logic gates
• Tautology iff original formula valid

27
Recent Progress in SAT Solving
28
Verifying Safety Properties
Bad States
Reachable States
Reset States
Reset

• Prove System will never reach bad state

29
Bounded Model Checking
Bad States
R2

• Repeatedly Perform Image Computations
• Set of all states reachable by one more state
  transition
• Easy to Implement
• Underapproximation of Reachable State Set
• But, typically catch most bugs with 810 steps

R1
Reset States
30
Implementing BMC
Satisfiable?

• Construct verification condition formula for step
  n by symbolically simulating system for n cycles
• Check with decision procedure
• Do as many cycles as tractable

31
True Model Checking
Bad States
R2

• Impractical for Term-Level Models
• Many systems never reach fixed point
• Can keep adding elements to buffer
• Convergence test undecidable

R1
Reset States

• Reach Fixed-Point
• Rn Rn1 Reachable

32
Inductive Invariant Checking
Bad States
Reachable States
Reset States

• Key Properties of System that Make it Operate
  Correctly
• Formulate as formula I
• Prove Inductive
• Holds initially I(s0)
• Preserved by all state changes I(s) ? I(?(i, s))

33
An Out-of-order Processor (OOO)
valid tag val
D E C O D E
incr
dispatch
Program memory
valid value src1valid src1val src1tag src2valid sr
c2val src2tag dest op
result
PC
Register Rename Unit
1st Operand
result bus
retire
2nd Operand
ALU

Reorder Buffer
execute
head
tail
Reorder Buffer Fields

• Data Dependencies Resolved by Register Renaming
• Map register ID to instruction in reorder buffer
  that will generate register value
• Inorder Retirement Managed by Retirement Buffer
• FIFO buffer keeping pending instructions in
  program order

34
Verifying OOO

• Lahiri, Seshia, Bryant, FMCAD 2002
• Goal
• Show that OOO implements Instruction Set
  Architecture (ISA) model
• For all possible execution sequences
• Challenge
• OOO holds partially executed instructions in
  reorder buffer
• States of two systems match only when reorder
  buffer flushed

35
Adding Shadow State

• McMillan, 98
• Arons Pnueli, 99
• Provides Link Between ISA OOO Models
• Additional info. in ROB
• Do not affect OOO behavior
• Generated when instruction dispatched
• Predict values of operands and result
• From ISA model

OOO
Reg. File
PC
Reorder Buffer
36
Invariant Checking

• Formulas I1, , In
• Ij(s0) holds for any initial state s0, for 1 ? j
  ? n
• I1(s) ? I2(s) ? ? In(s) ? Ij(s? ) for any
  current state s and successor state s? for 1 ? j
  ? n
• Invariants for OOO (13)
• Refinement maps (2)
• Show relation between ISA and OOO models
• Shadow state (3)
• Shadow values correctly predict OOO values
• State consistency (8)
• Properties of OOO state that ensure proper
  operation
• Overall Correctness
• Follows by induction on time

37
State Consistency Invariant Examples

• Register Renaming invariants (2)
• Any mapped register should be in the ROB, and the
  destination register should match
• ?r.?reg.valid(r)? (rob.head ? reg.tag(r) lt
  rob.tail ? rob.dest(reg.tag(r)) r )
• For any ROB entry, the destination should have
  reg.valid as false and tag should be to this or
  later instruction
• ?robt.(?reg.valid(rob.dest(t)) ?
• t ? reg.tag(rob.dest(t)) lt rob.tail)

38
Extending the OOO Processor

• base
• Executes ALU instructions only
• exc
• Handles arithmetic exceptions
• Must flush reorder buffer
• exc/br
• Handles branches
• Predicts branch speculatively executes along
  path
• exc/br/mem-simp
• Adds load store instructions
• Store commits as instruction retires
• exc/br/mem
• Stores held in buffer
• Can commit later
• Loads must scan buffer for matching addresses

39
Comparative Verification Effort
base exc exc / br exc / br / mem-simp exc / br / mem
Total Invariants 13 34 39 67 71
UCLID time 54 s 236 s 403 s 1594 s 2200 s
Person time 2 days 7 days 9 days 24 days 34 days
(Person time shown cumulatively)
40
I Just Want a Loaf of Bread
Ingredients
Result
Recipe
41
Cooking with Invariants
Ingredients Predicates
rob.head ? reg.tag(r)
Recipe Invariants
?r,t.?reg.valid(r) ? reg.tag(r) t ?
(rob.head ? reg.tag(r) lt rob.tail ?
rob.dest(t) r )
reg.valid(r)
reg.tag(r) t
Result Correctness
rob.dest(t) r
42
Automatic Recipe Generation
Ingredients
Result
Recipe Creator

• Want Something More
• Given any set of ingredients
• Generate best recipe possible

43
Automatic Predicate Abstraction

• Graf Saïdi, CAV 97
• Idea
• Given set of predicates P1(s), , Pk(s)
• Boolean formulas describing properties of system
  state
• View as abstraction mapping States ? 0,1k
• Defines abstract FSM over state set 0,1k
• Form of abstract interpretation
• Do reachability analysis similar to symbolic
  model checking
• Implementation
• Early ones had weak inference capabilities
• Call theorem prover or decision procedure to test
  each potential transition
• Recent ones make better use of symbolic encodings

44
Abstract State Space
Abstraction
Concretization
Abstract States
Abstract States
Concrete States
Concrete States
45
Abstract State Machine
Abstract System
Concrete System

• Transitions in abstract system mirror those in
  concrete

46
Generating Concrete Invariant

• Reach Fixed-Point on Abstract System
• Termination guaranteed, since finite state
• Equivalent to Computing Invariant for Concrete
  System
• Strongest possible invariant that can be
  expressed by formula over these predicates

Abstract System
47
Quantified Invariant Generation

• (Lahiri Bryant, VMCAI 2004)
• User supplies predicates containing free
  variables
• Generate globally quantified invariant
• Example
• Predicates
• p1 reg.valid(r)
• p2 rob.dest(t) r
• p3 reg.tag(r) t
• Abstract state satisfying (p1 ? p2 ? ?p3)
  corresponds to concrete state satisfying
• ?r,t?reg.valid(r) ? reg.tag(r) t
• ? rob.dest(t) r
• rather than
• ?r?reg.valid(r) ? ?r,treg.tag(r) t ?
• ?r,trob.dest(t) r

48
Systems Verified with Predicate Abstraction
Model Predicates Iterations CPU Time
Out-Of-Order Execution Unit 25 9 1,207s
Germans Cache Protocol 13 9 14s
Germans Protocol, unbounded channels 24 17 427s
Lamports Bakery Algorithm 33 18 471s

• Safety properties only

49
Future Prospects

• Evaluation
• Demonstrated ability to verify complex,
  parameterized systems
• Predicate Abstraction Shows Promise
• Provides key automation advantage of model
  checking
• Successful Application to Program Application
• Qadeer Lahiri, POPL 06
• Generate loop invariants for list manipulation
  programs

50
(No Transcript)
51
Automatic Predicate Discovery

• Strength of Predicate Abstraction
• If give it right set of predicates, PA will put
  them together into invariant
• Weakness
• Gets nowhere without right set of predicates
• Typical failure mode Generate true as
  invariant
• Challenges
• Too many predicates will overwhelm PA engine
• Our use of quantified invariants precludes
  counterexample-generated refinement techniques

52
Implementation of Predicate Discovery

• Lahiri Bryant, CAV 04
• Initially Extract predicates from verification
  condition
• Iterate Add new predicates by composing
  next-state formulas
• With some heuristics thrown in
• Experience
• Can automatically generate invariants for real
  examples
• 10X slower than for hand-selected predicates
