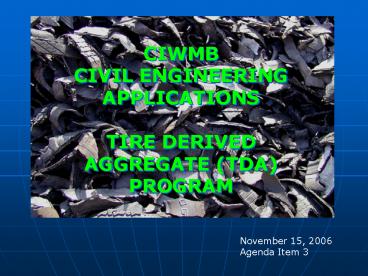

CIWMBCIVIL ENGINEERING APPLICATIONSTIRE
DERIVED AGGREGATE (TDA) PROGRAM
November 15, 2006 Agenda Item 3
2
Completed TDA Lightweight Embankment Fill
Projects
3
Lightweight Embankment Fill Dixon Landing S880 On
Ramp
4
Dixon Landing/HWY 880 Interchange Year 2000
5
660,000 Tires
6
Saving to State 240,000
7
TDA VIBRATION ATTENUATION APPLICATIONS
8
Vibration Mitigation Test Pad 1999
9
Conventional Vibration Mitigation Technology
800/ft
10
TDA Vibration Mitigation 150/ft
VTA-Vasona Line Extension 2001
11
(No Transcript)
12
(No Transcript)
13
VTA VASONA LINE Light Rail Savings 1,000,000

14
TDA- Retaining Wall Projects
15
Lightweight Backfill Behind Retaining
Walls Riverside, Ca
16
ROUTE 91 RETAINING WALL PILOT PROJECT 1
17

• 86,000 TIRES

18
(No Transcript)
19
Hwy 215 Riverside, Retaining Wall 207- Pilot
Project 2
20
(No Transcript)
21
(No Transcript)
22
RETAINING WALL 207
23
Retaining Wall 207
24
150,000 Tires
25
TDA Landfill Gas Collection Applications
26
Landfill Gas Collection Trenches, Replace Gravel
w/Type A TDA

• Type A for Gravel Replacement
• Oversize Auger for Vertical Wells
• Geo-textile seperater between TDA and Soil or
  Fine Material

27
Chiquita Landfill Gas collection System
28

• Gas Collection System,
• Gravel Replacement

150,000 Tires
29
Gas Collection System, Trench-less, Type B TDA

• High Permeability
• Cost savings
• Recycling (100 Tires 1.5 cy)

30
Altamont Pass Landfill Gas Collection System
31
FUTURE TDA PROJECTS
32
NEW TYPE 1T RETAINING WALLProject 3
33
Mendocino Co. Marina Dr. Slide Repair Project
34
Marina Dr.
35
Jenner, Sonoma Co. La Porte Dr. Slide Project
36
La Porte Dr.
37
HWY 101, Red Crest at EEL RiverLandslide Repair
Project
38
