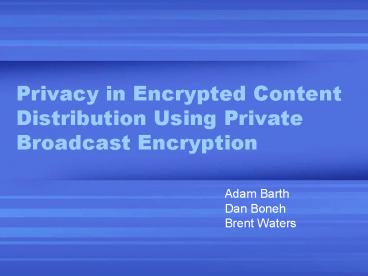

Privacy in Encrypted Content Distribution Using Private Broadcast Encryption

1
Privacy in Encrypted Content Distribution Using
Private Broadcast Encryption

• Adam Barth
• Dan Boneh
• Brent Waters

2
Private Broadcast Encryption

• Make data available to select principals
• Encrypt the data to those principals
• Often important to hide the set of principals
• BCC recipients in encrypted email
• Customer list (hide from competitors)
• Promotion committee can read evaluations
• Private broadcast encryption
• Recipient privacy against active attackers

3
Related Work

• Key privacy in public-key setting BBDP01
• IK-CCA Ciphertext does not leak public key
• Attacker viewing ciphertext encrypted under one
  of two public keys cannot guess which key was
  used
• Cramer-Shoup is IK-CCA (with common prime)
• Important building block for recipient privacy
• Previous broadcast encryption systems
• Increasing collusion resistance
• Reducing ciphertext overhead
• We focus on hiding recipient set

4
Our Results

• Generic construction (standard model)
• Achieves CCA recipient privacy
• Uses generic IK-CCA public-key system
• Decryption time is linear in number of recipients
• Efficient construction (random oracle)
• Achieves CCA recipient privacy
• Assumes CDH is hard
• Decryption in O(1) cryptographic operations

5
Broadcast Systems in Practice

• Microsoft Outlook
• Encrypted email as a broadcast system
• Outlook completely reveals BCC recipients
• issuerAndSerialNumber
• BCC recipients names can appear in the clear
• Could send separate message for email
• Windows Encrypted File System
• Pretty Good Privacy (PGP)
• GnuPG as an example implementation

6
Pretty Good Privacy?

• Message encrypted with symmetric key, K
• K encrypted for each recipient
• To speed decryption, components labeled with
  KeyIDs
• Hash of public key
• User identities completely revealed

Kpk(A) Kpk(B) Kpk(C)
A B C
7
Recipient Privacy in PGP

• PGP labels encryptions using a KeyID
• C\gpggtgpg --verbose -d message.txt
• gpg armor header Version GnuPG v1.2.2
  (MingW32)
• gpg public key is 3CF61C7B
• gpg public key is 028EAE1C
• KeyIDs easily translated into names and email
  addresses using a public key server
• GPG includes option to withhold KeyIDs
• Vulnerable to passive recipient privacy attack

8
Security Model
9
Private Broadcast Encryption

• I ? Setup(?)
• Generates global parameters I
• (pk, sk) ? Keygen(I)
• Generates public-private key pairs
• C ? Encrypt(S, M)
• Encrypts plaintext M for recipient set S
• M ? Decrypt(sk, C)
• Decrypts ciphertext C with private key sk

10
CPA Recipient Privacy Defined
Adversary
Challenger
Global Parameter
S0 and S1 subsets of 1, , n such that S0
S1
S0 and S1
All public keys
Some schemes vulnerable with large overlap,
whereas others are vulnerable with small overlap
Secret keys for S0 ? S1
b ?R 0,1
M encrypted for Sb as C
Guess b
Adversary wins if b b
11
Simple CPA Recipient Privacy

• Remove labels
• Use key-private scheme
• Reorder components
• O(n) decrypt time
• CPA recipient privacy
• But, active attack
• Even with IK-CCA

Kpk(A) Kpk(B) Kpk(C)
Kpk(B) Kpk(A) Kpk(C)
A B C
B A C
12
Active Attack on Simple Scheme

• Attacker a recipient
• Learns K
• Replaces message with something alluring
• Forwards malicious message to Alice
• Waits for response
• Receives response only if Alice was a recipient

Kpk(B) Kpk(A) Kpk(C)
K
13
CCA Recipient Privacy Defined
Adversary
Challenger
Global Parameter
S0 and S1 subsets of 1, , n such that S0
S1
S0 and S1
All public keys
Secret keys for S0 ? S1
Decrypt query on (u, C)
b ?R 0,1
M encrypted for Sb as C
Decrypt query on (u, C)
(C ? C)
Guess b
Adversary wins if b b
14
Constructions
15
Primitives Used in Constructions

• Strong correctness
• Decrypting with wrong key results in ?
• Strong signatures
• Attacker cannot create a new signature
• Even on a previously signed message
• Example RSA full-domain hash
• CCA key private (IK-CCA) cryptosystem
• Ciphertext does not leak public key

16
Generic CCA Construction
?

• Start with CPA scheme
• Generate a fresh signing key pair (vk, sk)
• Include verification key, vk, in each component
• Sign the ciphertext
• Thm CCA recipient private
• O(n) decryption time

, Kpk(B) , Kpk(A) , Kpk(C)
vk vk vk
K
17
Added Primitives for Efficiency

• A group G where CDH is hard
• Extend public keys with ga, private keys with a
• Model hash function as a random oracle
• Use extraction property to break CDH
• Use DH self-corrector Shoup97

18
Ciphertext Component Labels

• Speed decryption with private labels
• To make labels for every component
• Pick a single fresh exponent r
• Include gr in the ciphertext
• Label component for (pk, ga) with H(gar)
• Each recipient computes own label with gr and a
• Attacker can not associate H(gar) with ga
• Still need to tie labels to verification key
• Include gar in ciphertext components

19
Efficient CCA Construction
?
, gr
vk, , Kpk(B) vk, , Kpk(A) vk, ,
Kpk(C)
H(gbr) H(gar) H(gcr)
gbr gar gcr
MK

• Thm CCA recipient private (in RO model)
• O(1) cryptographic operations for decryption

20
Conclusions

• Many widely-deployed content distribution systems
  lack recipient privacy
• Email and encrypted file systems
• Introduced private broadcast encryption
• Recipient privacy against an active attacker
• Performance similar to non-private schemes
• Open problem private broadcast encryption with
  shorter ciphertext

21
Questions?
22
Broadcast Semantics of Email
23
BCC privacy in S/MIME

• S/MIME label is the RecipientInfo field.
• Label consists of the issuer and serial number of
  the recipients certificate
• Self-signed certificate
• Full name and email address in the clear
• 444d9 hl2 l 3 prim OBJECT
  commonName
• 449d9 hl2 l 11 prim PRINTABLESTRING
  Henry Kyser
• 462d7 hl2 l 32 cons SET
• 464d8 hl2 l 30 cons SEQUENCE
• 466d9 hl2 l 9 prim OBJECT
  emailAddress
• 477d9 hl2 l 17 prim IA5STRING
  h9565_at_hotmail.com
• VeriSign certificate identity at verisign.com

24
BCC Privacy by User Agent
Completely Exposes Partially Reveals Protects Identity
Apple Mail.app 2.622 Outlook 2003 Outlook Express 6 Thunderbird 1.02 Outlook Web Access
EudoraGPG 2.0 GPGshell 3.42 Hushmail KMail 1.8 PGP Desktop 9.0 Turnpike 6.04
S/MIME-based
PGP-based
25
Sending Separate Encryptions

• Sending separate encryptions provides BCC privacy
• Advantages of separate encryptions
• Can be deployed immediately and unilaterally
• Conceals the number (and existence of) BCC
  recipients
• Disadvantages of separate encryptions
• Difficult to implement for MUA plug-ins such as
  EudoraGPG
• Increases MTA workload and network traffic
