Recovery Boiler Modeling

1

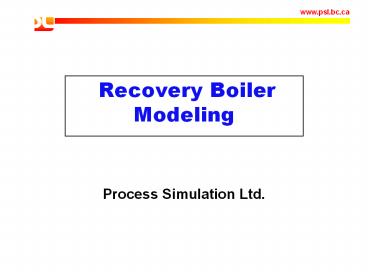

Recovery BoilerModeling

• Process Simulation Ltd.

2
Objectives

• Develop modeling tools to improve existing
  designs and operating procedures, and to lower
  carry over and environmental impact
• Analyse performance of different air systems and
  liquor firing strategies

3
Introduction

• Process and equipment design was, until recently,
  based on experience
• Advances in numerical methods and computer speed
  and memory
• increased possibility of using more scientific
  methods, called mathematical modeling, for
  process design and optimization

4
Mathematical Modeling Applications in Other
Industries
Jet engines
Weather
Computer
Harrier jet
Automotive
5
Equipment Modeling Capabilities
Time
gt30
4
6
1
1
We have active projects on this equipment
6
Client List

• Weyerhaeuser USA
• Weyerhaeuser Canada
• Canfor
• Kvaerner
• Scott Paper
• Anthony Ross
• Weldwood

7
Why Use Modeling?

• Recovery Boiler environment is too severe for
  measurement
• The model provides comprehensive information
  throughout the entire boiler at relatively low
  cost
• Can evaluate what if scenarios to improve
  operation/design
• Supplements steam chief and operator knowledge of
  recovery boiler operations
• Assists mill managers in making informed
  decisions regarding boiler refits/replacements

8
Details of the Recovery Boiler Model

• Advanced and verified solution algorithm
• Black liquor combustion model Drying Pyrolysis
  CO, CO2, CH4, H2, H2O Char gasification
• Gas phase combustion model
• Advanced radiation model
• Convective section model
• Char bed model

9
Issues Addressed by the Model

• High excess air
• CO, CO2, and other emissions
• Mechanical carryover plugging
• Bed blackouts
• Superheater and waterwall tube thermal stress
  failures
• Boiler stability and capacity

10
Input Data Required

• Boiler geometry
• Bed shape
• Convective section layout
• Air temperature and flow rate at each port
• Liquor characteristics

11
Model Predictions

• Gas species (e.g. H2,O2,N2,CO,CO2,H2O,CH4)distrib
  utions
• Gas flow velocity fields
• Temperature distributions and heat transfer to
  wall surfaces
• Liquor spray combustion and droplet trajectories.
• Carryover characteristics

12
Model Validation
Isothermal flow validation

• Water Model Measurements
• Full Scale Measurements

CE Boiler Model
Hot flow validation

• Temperature measurements at bullnose
• Carryover prediction trends
• CO emission trends
• Velocity measurements

BW Boiler Model
Different aspects of model results have been
validated against data from operating boilers
13
Recovery Boiler Refit Example
The Issue

• High plugging rates
• High gas temperature at superheater
• Bed growth control

The Objective

• To recommend modifications to air system

14
Test Case Geometries
Tertiary Air Ports (20)
Secondary Air Ports (30)
Primary Air Ports (50)
Base Case
15
Secondary Air System Problem and Solution
Base Case
Modified Air System
16
Air/Liquor System Data in Plan View
17
Temperature Profiles
18
Velocity Profiles
19
Fuel Particle Trajectories
Modified Air System
Base Case
20
Carryover Mass Flux
21
(No Transcript)
22
(No Transcript)
23
(No Transcript)
24
Conclusions

• The modified air system
• Larger air ports provides better jet penetration.

• Increases gas mixing
• Breaks up the vertical air core
• Significantly reduces plugging rates.
• Reduces gas temperatures at superheater
• In general, modeling
• Provides detailed data to facilitate efficient
  operation of Recovery Boilers.
• Helps mill managers make informed decisions
  regarding boiler refits/replacements
