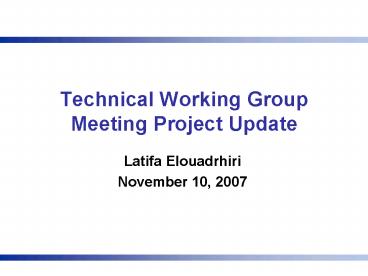

Technical Working Group Meeting Project Update

1
Technical Working Group Meeting Project Update

• Latifa Elouadrhiri
• November 10, 2007

2
What is CD2?
APPROVE PERFORMANCE BASELINE DEFINE Detailed
Scope Detailed Cost Detailed Schedule For
projects gt20M, a formal Earned Value Management
System (EVMS) is required. For projects gt100M,
the EVMS must be formally certified. A change in
scope, cost, or schedule requires a formal Change
Request (CR)
3
What is CD2?
APPROVE PERFORMANCE BASELINE DEFINE Detailed
Scope Detailed Cost Detailed Schedule For
projects gt20M, a formal Earned Value Management
System (EVMS) is required. For projects gt100M,
the EVMS must be formally certified. OECM Earned
Value Management System (EVMS) Certification
Scheduled 3-DEC-07
4
Goals RD and PED

• Reference design for the Torus Magnet by January
  31, 2008
• Reference design for the SC Solenoid by March 31
  , 2008
• 100 design of DC by end of FY08
• 100 design of PCAL end of FY08
• 100 design for all other detectors, beam line,
  Infrastructure, computing by end of FY09
• Complete RD by end of FY08

5
CD3 Deliverables

• 100 Design
• Drawings - Signed
• Specifications Procurement Plans
• Fabrication detail plans including QA written
• Non-DOE Contributions
• Hall B Management Plan
• Organization Structure
• Subsystem Leads
• Key P3e Milestones
• JLab University MOUs
• Draft Minimum
• Draft Hall B Commissioning Plan

6
FY08 Hall B Design Reviews Meetings

• DOE-convened reviews
• Lehman Independent Project Review Jun/July
  -2008
• JLab-convened reviews
• SVT February 2008
• Superconducting Magnets April 2008
• CLAS12 Detector Reviews May 2008
• Hall-B-convened reviews
• CLAS12 Workshop Detector Review- February 2008
• Hall-B- Convened meetings
• Regular Technical Working Groups
• Weekly Technical Design Group Meeting
• Weekly Technical Control Board Meeting
• Last Friday of each month detail progress report
  on CLAS12 detector, infrastructure and DAQ
• Friday in the middle of the moth detail progress
  report on the Off-line and online software

7
Draft - CLAS12 Offline Software Needs
8
Draft - CLAS12 Offline Software Needs
9
(No Transcript)
10
(No Transcript)
11
(No Transcript)
12
Earned Value Management System (EVMS) Validation
Review Jefferson Science Associates Newport News,
VA December 3 -7, 2007 Agenda
13
Genat 4 Based Simulation for the CLAS12 Silicon
Vertex Tracker K. A. Stopani CLAS-Note
2007-018 ITEP kstopani_at_jlab.org
14
Geant 4 based simulation of Rates for CLAS12
central SVT
Simulated Geometry
15
Total rates
16
Hadronic and electromagnetic rates
17
Hit Distribution
18
Hit Distrubution
19
Simulation and Track Reconstruction in the
Central SVT K. A. Stopani ITEP kstopani_at_jlab.org
20
Conversion from energy deposition to signals in
ADC
Strip layout on a surface of one Cylindrical
sublayer The inner most strip orientation was
selected to be 1.5o and the outermost -1.5o
21
Conversion from tracks to energy deposition in
silicon sensor
Spatial Distribution of energy depostion from 500
MeV proton striking a 300 mm silicon plate
22
Reconstruction of hit coordinates
Schematic view of one cell formed by
intersection of two planes U and V strips
23
Proton Momentum Resolution
24
Near Term Future Plans

• Complete tracking efficiency as function
• Luminosity
• Magnetic field
• Background due to electronic noise
• Of momentum
• Particle type
• Perform alignment Studies
• Complete tracking in the forward silicon detector
• Implement the current studies in the CLAS12
  Framework Software

25
Dedicated Task Force for the software development

• Task force to perform the studies that are
  crucial making decisions in the design of the
  CLAS12 Software
• First meeting will focus meeting on tracking
• Wednesday November 14, 2007 at 130
• Room F227
• Detail schedule for software development
• Documentation
• Review process
