Title: Shocks and Associated Phenomena in Space


1

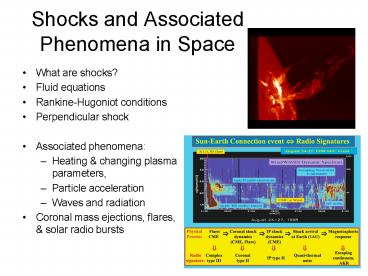

Shocks and Associated Phenomena in Space
  • What are shocks?
  • Fluid equations
  • Rankine-Hugoniot conditions
  • Perpendicular shock
  • Associated phenomena
  • Heating changing plasma parameters,
  • Particle acceleration
  • Waves and radiation
  • Coronal mass ejections, flares, solar radio
    bursts

2
1. Shocks - Qualitative
?
  • When disturbance moves faster than speed of
    small amplitude waves, e.g., cs or VA
  • Why speed depends on amplitude
  • How nonlinear steepening leads to wavebreaking
    dissipation
  • What flow deflection, compression, slowing,
    heating, particle acceleration, field
    enhancement, waves, radiation
  • Overall excess motion ? dissipation and
    redistribution of energy

3
2. Fluid Equations (MHD GD)
  • Derived from moments of the Boltzmann Equation

Maxwells Equations
4
Normal incidence frame
5
3. Rankine-Hugoniot (Jump) Conditions 1
  • Derived from conservation equations for mass,
    momentum energy with Maxwells equations.
  • Conservation law for scalar Q flux F
  • Time-steady flow with zero source. Volume
    integral ? surface integral and taking limit as
    box thickness tends to zero ?
  • Jump condition for conserved quantity normal
    flux from region 1 into region 2 equal.

Upstream Region 1
Downstream Region 2
6
Rankine-Hugoniot (Jump) Conditions 2
  • Mass conservation
  • Normal momentum
  • Tangential momentum
  • Energy
  • Normal B
  • Tangential E

7
Rankine-Hugoniot (Jump) Conditions 3
  • Shock normal frame has u1 u1n. Shock variables
    are the Alfven and sonic Mach numbers and angle
    ?
  • Mass conservation ? compression ratio
  • Eliminate Bn, then Bt, ut to find

8
Rankine-Hugoniot (Jump) Conditions 4
  • Rankine-Hugoniot equation follows on eliminating
    P2
  • Cubic in MA2 ?3 solutions
  • Weak discontinuity r 1 ? a ? 1 and (17) becomes
    the dispersion equation for the MHD modes
    fast/slow magnetosonic Alfven.
  • MA ? 8 find r ? (G 1)/(G 1) 4 for G5/3.
    Limiting compression.
  • Fast mode shock B increases, slow mode shock B
    decreases.
  • All shocks compression, slowing and heating of
    the flow.

(17)
9
3. Perpendicular shock
  • ? p/2, so B1nB2n 0, and
  • RH solution is
  • Find r increases towards (G 1)/(G 1) 4 as
    MA increases.
  • Gasdynamic shock (B 0) has
  • Flow compression, slowing heating. Field
    increase.

10
4. Earths Bow Shock
  • Slows deflects flow around magnetopause.
  • Once sub-Alfvenic, information (waves) can
    propagate upstream and nonlinearly steepen to
    form the shock.
  • Qualitative ram pressure balanced by downstream
    thermal pressure

11
B (nT)
?
f
Earths Bow Shock
V (km/s)
?v
fv
Cs (km/s)
N (cm-3)
Pram (nPa)
2230
Time (UT)
2100
12
Excellent agreement with Rankine-Hugoniot
conditions
(Lepidi et al., 1997)
13
5. Heating of Downsteam Plasma
  • Balancing Pram against P2,th often ? Ti 106 K.
  • ? thermal emission X-rays from downstream.
  • Examples supernova remnants coronal ISM, solar
    system ISM shock interactions.

Hubble BZ Cam
14
Particle Reflection Acceleration at Shocks
B1
electron motion
E (y)
  • Convection electric field E -u1 x B1 ? E x B
    drift
  • plasma drift with
  • Shock-drift acceleration
  • Magnetic mirror reflection conservation of
    magnetic moment

15
Electron beams, Langmuir waves radiation
B ? vExB ?
Kuncic Cairns (2004)
16
Flares and Coronal Mass Ejections (CMEs)
17
CMEs
18
Shock, electrons, waves in situ
f (Hz) Power E(V/m) Electron Flux N(cm-3) B
(nT)
Wind Spacecraft (Bale et al., 1999)
Time (UT)
19
Predicted Radio Emission (CME)
Knock Cairns (2004)
20
CMEs, radio bursts, Space Weather
Reiner
21
Type III Bursts
  • Type III solar burst
  • Electron beam
  • Langmuir waves
  • Radio waves fp 2fp
  • Earths foreshock radiation

Lin et al., 1981
22
6. Summary Shocks in Space Astrophysics
  • Shocks nonlinear steepening dissipation
  • Rankine-Hugoniot conditions fluid theory and
    mass, momentum etc. conservation.
  • Shocks redistribute supersonic flow energy
  • Compress, slow, deflect heat plasma.
  • Heating balance downstream Pth against Pram.
  • Accelerate particles shock-drift Fermi
  • Can cause intense plasma radio waves
  • Space exciting, fundamental relevant physics.
