Title: Chapter 4 Traverse Computations


1

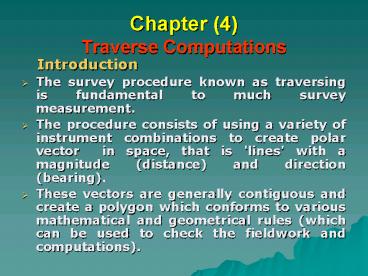

Chapter (4) Traverse Computations
  • Introduction
  • The survey procedure known as traversing is
    fundamental to much survey measurement.
  • The procedure consists of using a variety of
    instrument combinations to create polar vector
    in space, that is 'lines' with a magnitude
    (distance) and direction (bearing).
  • These vectors are generally contiguous and create
    a polygon which conforms to various mathematical
    and geometrical rules (which can be used to check
    the fieldwork and computations).

2
  • The equipment used generally consists of
    something to determine direction like a compass
    or theodolite, and something to determine
    distance like a tape or Electromagnetic Distance
    Meter (EDM).
  • There are orderly field methods and standardized
    booking procedures to minimize the likelihood of
    mistakes, and routine methods of data reduction
    again to reduce the possible occurrence of
    errors.
  • The most fundamental of these checks is to
    perform a closed traverse that is a traverse that
    starts and finishes on either the same point or
    known points, (similar in concept to a level run).

3
  • The Function of Traverses
  • Traverses are normally performed around a parcel
    of land so that features on the surface or the
    boundary dimensions can be determined.
  • Often the traverse stations will be revisited so
    that perhaps three-dimensional topographic data
    can be obtained, so that construction data can be
    established on the ground.
  • A traverse provides a simple network of 'known'
    points that can be used to derive other
    information.

4
(No Transcript)
5
  • Types of traverse
  • There are two types of traverse used in survey.
  • These are open traverse, and closed traverse.

6
  • Open Traverse
  • An open traverse begins at a point of known
    control and ends at a station whose relative
    position is known only by computations.
  • The open traverse is considered to be the least
    desirable type of traverse, because it provides
    no check on the accuracy of the starting control
    or the accuracy of the fieldwork.
  • For this reason, traverse is never deliberately
    left open.
  • Open traverse is used only open projects like
    roads, cannels, railway lines, shoreline
    protection.

7
  • Closed Traverse
  • This traverse starts and ends at stations of
    known control.
  • There are two types of closed traverseclosed on
    the starting point and closed on a second known
    point.
  • Closed loop traverse
  • This type of closed traverse begins at a point of
    known control, moves through the various required
    unknown points, and returns to the same point.
  • This type of closed traverse is considered to be
    the second best and is used when both time for
    survey and limited survey control are
    considerations.
  • It provides checks on fieldwork and computations
    and provides a basis for comparison to determine
    the accuracy of the work performed.

8
  • The first step in checking a closed traverse is
    the addition of all angles.
  • Interior angles are added and compared to
    (n-2)180o.
  • Exterior angles are added and compared to
    (n2)180o.
  • Deflection angle traverses are algebraically
    added and compared to 360o.
  • The allowable misclosure depends on the
    instrument, the number of traverse stations, and
    the intention for the control survey.
  • c K n 0.5

9
  • where
  • c allowable misclosure.
  • K fraction of the least count of the
    instrument, dependent on the number of
    repetitions and accuracy desired (typically 30"
    for third-order and 60" for fourth-order)
  • n number of angles.
  • Exceeding this value, given the parameters, may
    indicate some other errors are present, of
    angular type, in addition to the random error.
  • The angular error is distributed in a manner
    suited to the party chief before adjustment of
    latitude and departures. Adjustment of latitudes
    and departures is the accepted method.
  • The relative point closure is obtained by
    dividing the error of closure (EC ) by the line
    lengths.
  • Relative point closure EC / S of the distances

10
  • Closed traverse between two known control points
  • This type of closed traverse begins from a point
    of known control, moves through the various
    required unknown points, and then ends at a
    second point of known control.
  • The point on which the survey is closed must be a
    point established to an equal or higher order of
    accuracy than that of the starting point. This is
    the preferred type of traverse.
  • It provides checks on fieldwork, computations,
    and starting control. It also provides a basis
    for comparison to determine the accuracy of the
    work performed.

11
  • The procedure for adjusting this type of traverse
    begins with angular error just as in a loop
    traverse.
  • To determine the angular error a formula is used
    to generalized the conversion of angles into
    azimuth.
  • The formula takes out the reciprocal azimuth used
    in the back sight as (n-1) stations used the
    back-azimuth as a back sight in recording the
    angles.
  • A1 a1 a2 a3 ... an -(n-1)(180o )A2

12
  • If the misclosure is exceeded, the angular error
    may have been exceeded or the beginning and
    ending azimuths are in error or oriented in
    different meridian alignments.
  • If beginning and ending azimuths were taken from
    two traverses, and the angle repetitions were
    found to be at least an order of magnitude better
    than the tabulated angular error, the ending
    azimuths may contain a constant error which may
    be removed to improve the allowable error.
  • GPS or astronomic observations may be used to
    find the discrepancy if the benefit of this.

13
  • Traverse fieldwork
  • The easiest way of visualizing the traversing
    process is to consider it to be the formation of
    a polygon on the ground using standard survey
    procedures.
  • If the traverse is being measured using a
    theodolite (which is the normal case) then angles
    are observed to survey stations on both faces for
    a given number of rounds, and booked and reduced
    accordingly.
  • The stations being observed are pre marked and
    targeted with range poles or traversing targets,
    or simply by a plumb-bob string for the duration
    of the angle measurement.

14
  • If bearings are being observed with a magnetic
    compass then care must be taken to reduce the
    effect of variation in declination over the
    period of the survey, and especially to avoid the
    effects of local attraction.
  • This is done by avoiding nearby metallic objects,
    and by observing both forward and reverse
    bearings for each traverse line.
  • Whatever method is used for the measurement of
    distance then all appropriate corrections should
    be made, and the distances reduced to horizontal.

15
  • Choice of points
  • Planning - establish requirements for accuracy,
    density and location of control points.
  • Reconnaissance - nature of terrain, access,
    location of points.
  • Station marking
  • Station marking - type of mark, reference.
  • Protection.
  • Description Card.
  • Observations
  • Angular and Distance Measurements.
  • Angular Measurement Targets, Reading and
    booking procedure.
  • Linear Distance - Standard, slope, temp.
  • Booking procedure.

16
  • Traverse Computations
  • 1 Angular Closure of Closed loop traverse
  • Using a theodolite we can measure all the
    internal angles.
  • The sum of the internal angles of a polygon
    (traverse) is given by the rule
  • S ? (n -2) 180O
  • Where n is the number of sides of the traverse,
    and each internal angle.
  • Any variation from this sum is known as the
    misclosure and must be accounted for, either
    through compensation (if it is an acceptable
    amount) or elimination by repetition of the
    observations.
  • An angular closure is computed for traverses
    performed with either Theodolites or magnetic
    compasses.

17
  • A larger misclosure could be expected when using
    a magnetic compass, but in any case it must be
    calculated and removed.
  • The Angular Misclosure
    S Measured Angles - S Internal Angles
  • Maximum Angular Misclosure 2Accuracy of
    Theodolite v (No. of Angles)
  • Calculation of Whole Circle Bearing
  • When the angles is adjusted, then a bearing is
    adopted for one of the lines (or a known bearing
    is used) and bearings for all the lines are
    computed.
  • The bearing of a line is computed by adding 180
    to the bearing of the line before, and then
    subtracting the included angle (a).

18
Example Observations, using a 6" Theodolite,
were taken in the field for an anti - clockwise
polygon traverse, A, B, C, D. The bearing of line
AB is to be assumed to be 0o and the co-ordinates
of station A are (3000.00 m E 4000.00 m N).
N
C
B
A
D
19
(No Transcript)
20
Solution Calculation of Angular misclosure S
(Internal Angles) 360º 00? 12" S (Internal
Angles should be (N-2)180º
360º 00? 00" The Angular
Misclosure(?) S Measured Angles - S Internal
Angles 360º 00? 12" - 360º
00? 00" 12" Allowable 2 6" v4
24" OK Therefore distribute
error The correction / angle -12/4 3"
21
(No Transcript)
22
Calculation of Whole circle Bearing
23
  • Linear closure
  • The method of checking the distance component of
    the closed traverse is known as performing a
    linear closure.
  • In its simplest form this consists of converting
    the corrected angles into bearing and then
    computing the partial Easting and Northing for
    each line.
  • ? Easting D . Sin ?
  • ? Northing D . Cos ?
  • These values are then summed, and any deviation
    from the expected value is assessed.
  • In a traverse that starts and finishes on the
    same point the total change in position should be
    zero, and in a traverse that starts and finishes
    on points that have a known position the sum
    should equal the known displacement.

24
  • An angular closure must be performed first, as
    these formulae contain two measured variables
    (direction and distance) the bearings must have
    their error eliminated so we can attribute the
    remaining error to the distances.
  • If the linear misclosure is acceptable, then this
    can be adjusted out of the network, but if the
    misclosure is too large then the fieldwork should
    be repeated (unless the source of the problem can
    be isolated).

25
linear misclosure In above example can be
calculated as follow
26
  • e v (? E2 ? N2 )
  • v (0.0942 0.6542) 0.661m
  • e is the LINEAR MISCLOSURE
  • Fractional Linear Misclosure (FLM) 1 in (S D
    / e )
  • 1 in (9172.59 / 0.661) 1 in
    13900
  • Acceptable FLM values -
  • 1 in 5000 for most engineering surveys
  • 1 in 10000 for control for large projects
  • 1 in 20000 for major works and monitoring
    for structural deformation etc.

27
Example Consider the following traverse and
traverse table
28
(No Transcript)
29
Solution Calculation of Angular misclosure S
(Internal Angles) 539º 59? 10" S
(Internal Angles) should be (n -2)180
(5-2)180 540º 00? 00" The Angular
Misclosure(?) S Measured Angles
- S Internal Angles 539º
59? 10" - 540º 00? 00" - 50" Allowable 2
20" v5 89.44" OK Therefore distribute
error. The correction/angle 50"/5 10 The
angles area adjusted for this misclosure amount,
this case 10 seconds would be added to each angle
to distribute the misclosure evenly throughout
the traverse.
30
(No Transcript)
31
Linear closure
32
  • From the table, S ?E -0.029, and S ?N -0.026
    This is then converted to a vector, expressing
    the misclosure in terms of a bearing and
    distance.
  • Distance ( S ?E 2 S ?N2 )1/2 0.039 meters,
  • Bearing tan-1 (S ?E/ S ?N) 227 30
  • Then the work is repeated. Conventionally the
    misclosure is expressed as a ratio of the total
    perimeter of the traverse and referred to as the
    'accuracy'.
  • In this case this is 113,795 which satisfies
    requirements under the Survey Coordination Act.
  • If the misclosure was found to be large then it
    is likely that a mistake had occurred during the
    field process.
  • The bearing of the misclosure vector can be used
    as an indication of the line in which the mistake
    occurred, however this is a guide only.
  • Naturally if the misclosure was close to one
    physical length of the measuring device (say 50m)
    then it is likely that a chain length was omitted
    somewhere. If the source of the mistake cannot be
    isolated,

33
If the coordinates of point A ( 2000,5000 ) Now
we will go to correct the coordinates of the
points of the traverse
34
Final corrected coordinates
35
  • Traverses - Missing Data
  • As a rule traverses are always closed, either
    onto them selves or between known points so that
    an estimate of accuracy and precision can be
    obtained, as well as a check on our fieldwork.
  • There are rare occasions where traverses cannot
    be closed, and more commonly there are situations
    where open traverses run off a rigorous network
    are used to determine the dimensions of features
    that are not readily accessible.
  • The use of traversing procedures and calculation
    to determine these dimensions is based on the
    mathematics of a closed traverse.
  • That is, the data that is missing from the
    traverse is presumed to be that which would close
    the traverse.
  • If we adopt this procedure, then an additional
    condition applying to our measurements is known

36
  • The missing elements of a traverse polygon that
    can be solved for are as follows
  • Bearing and Distance of One Line .
  • Bearing of One Line, Distance of Another.
  • Distance of two Lines.
  • Bearing of two Lines.

37
Example In a theodolite survey the following
details were noted and some of the observations
were found to be missing.
Calculate the missing data ?
38
Solution
39
In Departure 415.69 1069.44 0.826 L 1205 Sin
(?) 00.00 1205 Sin (?) 0.826 L
1485.13 1452025Sin2(?)0.682L22453.43L2205611.12
(1) In Latitude 240 498.69 0.564 L 1205
Cos (?) 00.00 1205 Cos (?) 0.564 L
258.69 1452025Cos2(?)0.318 L2291.8 L 6692 0.52
(2) For length CD Add Eq.(1) and
Eq.(2) 1452025 Sin2(?)Cos2(?)L22161.63 L
2272531.64 L2 2161.63 L 820506.64 00.00
(3) Solving Eq. (3)
L 491.455 m. For Bearing of line
CD Substitute in Eq.(1) 1205 Sin (?) 0.826 x
491.455 1485.13 Sin (?)
-0.8955
R.B. of CD N 63º 34?22"
W W.C.B. of CD 296º 25? 38"
40
Example (Mansoura 4/1/2006) C and D are two
stations whose coordinates are given below
From station C is run a line CB of 220 m length
with a bearing of 130º. From B is run a line BA
of length 640 m and parallel to CD . Find the
length and bearing of AD?
41
Solution
N
D (-680,1350.50)
130º
C (380,835)
220 m
A
B
640 m
o
42
DC (1060)2 (515.5)2 0.5 1178.703 m W.C.B
of DC tan-11060/515.5 115º 56? 05? W.C.B of
BA 295º 56' 05?
L sin ? - 652.983 m , L cos ? 377.011 m ? (
W.C.B of AD ) 325º 59' 57? , Length of AD
754.005 m
Write a Comment
User Comments (0)
About PowerShow.com
