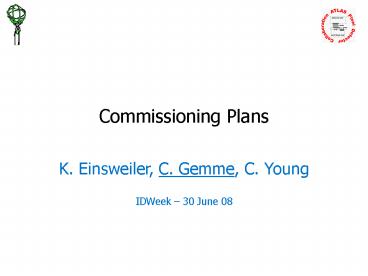

Commissioning Plans

1
Commissioning Plans

• K. Einsweiler, C. Gemme, C. Young
• IDWeek 30 June 08

2
Commissioning activities without cooling (I)

• Detector and safety
• TX issues
• Full reference campaign on a reduced sample of
  optoboards, TX,RX (OTDR, loopback, Ipin, power
  measurements)
• Monitoring of TX health, now in OFF state
• Monitoring of TX conditions (racks state,
  intelocks, settings)
• Fibers delays in the configuration?
• Services monitoring
• NTC and LV test
• DSS final implementation
• Beam pipe bake-out
• Measurement of thermal inertia of the system
  during bake-out (_at_ reduced heaters temperature)
• DSS interlock verification before any operation
• Optimization of Optoheater feedback (sw or/and
  hw) to keep optoboards at stable and set
  temperature.
• Few Problematic modules follow-up (HV open, high
  dispersion, etc..)
• Studies on Problematic Cooling loops in SR1
  changes of plant software to be more flexible
  during commissioning (Kevins talk).

3
Commissioning activities without cooling (II)

• DCS
• Temperature Overview panel of the pixel package
  (main user-case is bake-out)
• Cooling loop Detector view
• Minor optimizations and visualization of software
  interlocks.
• Optimization of DCS configuration (rights to
  load, tags, interface with DAQ, all parameters
  included)
• DAQ
• Calibration tools and procedure (next slides)
• DSP code validation
• DAQ/DCS
• Communication DCS/DAQ to define readiness before
  starting data-taking

4
Calibration tools and Procedures

• Ongoing for a long time, now our main software
  activity.
• Focus now on preparing Procedures, i.e. sequence
  of scans, analysis, writing in the calibration DB
  and/or a new configuration tag for BOC/modules
• Calibration console to run scans and the
  subsequent online analysis. Results are stored
  in the CalibrationDB where we need to import also
  the data coming from the production.
• offline analysis (Analysis Framework) to
  monitor the evolution of calibration results,
  make differences with reference scans and being
  able to put together results from different part
  of the detector.
• To speed up finalization of the procedures
• review process, so that each working group has to
  prepare a report on the validation of the
  procedure to be discussed with external reviewers
• daily shifts in SR1 devoted to a specific
  procedure

5
Online scans and analysis
Iterative procedure Generation of Masks for
modules to be enabled in the next scan as the
failed (no histo or failing analysis)
Raw data for each pixel
Calibration console
Detector view of calibration results
Raw data for each module
6
Offline analysis Analysis Framework

• Runs after online analysis access to
• Calibration DB
• Raw calibration ROOT data only when necessary
• PVSS DB to correlated the results with DCS
  conditions
• Metadata DB
• Configuration DB in some cases
• Main User cases
• Overview of calibration results because a
  complete calibration will likely require multiple
  scans
• Results Trend vs conditions, as temperature,
  time, etc
• Comparison with other scans or reference plots
• Complex analysis that need multiple input scans

7
Commissioning activities with cooling

• 1) Beam pipe bake-out
• As soon as cooling is back in the detector,
  priority will be given to be able to operate in
  stable condition at least the B-layer loops (11)
  and the end-cap loops (24).
• Notice that some of the needed loops are on the
  black list of problematic loops to run safely,
  solving problems observed during the sign-off
  period will be necessary.
• Stable operation of L1 (19) and optoboards (8)
  loops should be desiderable in case of need to
  produce extra cooling.
• Understanding of thermal inertia of the system is
  critical for the detector safety In case of
  plant or individual loop failure, how long the
  beam pipe takes to go back at RT?
• Keeping optosystem ON (opto loops, opto heaters,
  optoboards) could be necessary in case we need
  to switch on modules to stabilize unstable
  cooling loops. No optolink tuning is needed.
• Time estimation (dominated by problems) two
  weeks (?) for cooling operation and bake-out

8
Commissioning activities with cooling

• 2a) Optoboards operation heaters
• Optoboards temperature has to be as stable as
  possible not to affect optolink tuning that is
  (how much?) sensitive to temperature.
• Optoheater operation is therefore critical in
  this period when environmental temp will not be
  stable ( loops and modules ON will vary often)
  and individual Optoboards will be switched
  ON/OFF.
• NEEDED an automatic feedback algorithm to keep
  the optoboards array average temperature stable
  vs conditions (one optoheater serves six
  optoboards)

9
Commissioning activities with cooling

• 2b) Optoboards operation tuning
• Optolink tuning exists (many scans and analysis).
  Robustness of the old DSP code qualitatively
  tested during the pit CT and the sign-off.
• In the new DSP code fast and powerful (pseudo
  random sequence, comparison bit by bit vs time,
  able to detect slow turnon). Being fast,
  possible to minimize the error rate by sending a
  longer sequence.
• Validation of the optolink tuning during pit CT
  and sign-off was done indirectly using a
  threshold scan. Should we systematically use a
  digital scan?
• Optoboards operation and tuning are the first
  topic on which we can test the performances the
  calibration tools, management of DCS and DAQ
  configuration, etc
• Low scale of configuration and condition
  management that will be critical in module tuning

• Exercise doable even now in the pit
• Time estimation lt one week

10
Commissioning activities with cooling

• 3) Modules Calibrations
• During the sign-off, we have used the LOAD
  configuration (tuning at room temperature, pixel
  masks inherited from modules and stave warm
  tests)
• Only threshold scans run (data for 1100
  (CHECK!!) modules)
• Temperature 0-5 C (CHECK!!)
• Noise 170e
• Threshold average two peaks at 3800e and 4100e
• Threshold dispersion two peaks at 70e and 130e
• Configurations looks good enough to be used as a
  starting point.

11

• Correlation between higher threshold and lower
  RMS
• It should come from production sites.
• modules with higher threshold are usually on the
  same mechanical support
• No difference between disks and barrel.

12
Commissioning activities with cooling

• 3) Modules Calibrations
• Aim is to have for each module the conditions
  needed by the offline analysis threshold, TOT,
  pixel masks, etc to have a baseline as soon as
  possible for the detector conditions and
  performances (number of detached bumps, etc..)
• Minimal program optional, lower priority
• Starting from LOAD config (GDAC, TDACs, IF, FDACs
  from production), enable all pixels in data
  taking ()
• Threshold scan
• Retuning of few modules with threshold dispersion
  gt 250e (Should be O(10))
• Mask for pixels with bad fits and with Noise/Thgt
  x, x being a cut tuned from data taking
• Able to Move outliers or apply global shift in
  case of need.
• ToT scan at 20 ke to evaluate if ToT tuning is
  necessary (assumed not but no data available)
• ToT tuning
• ToT calibration
• Threshold scan HV off to study bump connection
• Monleak scan to have a reference in case of beam
  losses
• Other scans less critical, not included in the
  minimal set
• Xtalk, timing calibration (t0, intime threshold,
  timewalk)
• Time estimation one (?) week
• () pixels were masked as too hot in a source
  scan in self triggering mode. It may be that with
  an external trigger not all of them are too noisy
  for the DAQ.

13
Commissioning activities with cooling

• 4) Data taking
• NOTICE that data flow from pixel RODs to ROSes,
  SFI, etc should already be qualified by combined
  tests with simulated hits. As well as software
  compatibility with ATLAS TDAQ.
• When a part of the detector will be
  sufficiently calibrated (threshold and TOT
  tuned, pixel masks from threshold scan)
• Run in standalone with random triggers to mask
  noisy pixels -gt pixel detector is silent, no
  pixel with occupancy higher than xx (CHECK
  10E-5??)
• Technical runs with external (Atlas CTP, SCT?)
  trigger for timing
• Standalone data taking will be run on each part
  of the detector in order to mask the noisy pixels
  before joining a combined run.
• Time estimation one (?) week

14
Minimal commissioning time

• Previously described phases will be sequential on
  the same part of the detector but how long they
  will really take and how much we will be able to
  run in parallel (cooling commissioning,
  calibration and data taking) will mainly depend
  on the type, severity of problems we will have to
  solve.
• This minimal program, including optoboards
  operation, module calibrations, standalone data
  taking and combined technical runs, is expected
  to take O(3 to 4 weeks) assuming that no big
  surprises will come from the detector.
• Notice that All calibration involving modules
  need HV ON, that is interlocked by STABLE BEAM
  signal. This could be critical due to the present
  LHC schedule. Calibration program could be
  stretched between cooling availability and
  injection of first beams

15
Other slides (Charlie?)

• Training, shifts (when call for not experts)
  and OTP
• Operations pages
• manuals
• status
• whiteboard

16
AoB

• Preparation for shift documentation/training/opera
  tion
• Training lectures, hands-on sessions, assisted
  shifts

• Use of operation page
• Use of white board for communication, e.g. fiber
  repair, PP2 temp not working, etc
• Manuals (expert, shifter)
• Follow up of recovery procedure in expert manuals
• Status page it should reflect the status of DAQ
  and DCS, also during recovery.

Last recovery took 6 days(!) due to a network
switch misbehaving (pixel, netop, sysdamin
communication not very efficient) We finally have
all the LV Wiener! (but yesterday we had a
failure in Wiener PS for ROD crates)
17
Shift Training

• Typical steps.
• Presentation by guru.
• DCS by Susanne.
• DAQ by Paolo.
• Hands-on session with experts.
• Several DCS and DAQ sessions so far.
• More as needed.
• Take training/practice shift.
• Final decision by experts in charge.
• Participating in the three steps is necessary but
  insufficient condition to be qualified as
  shifter.

18
DAQ
DCS
Date when fulfilled
19
Pit Activities

• ATLAS plans to have combined runs every weekend.
• Other activities planned for weekdays.
• See for example Thorstens talk at Weekly Run
  Meeting (http//indico.cern.ch/conferenceDisplay.p
  y?confId35739).
• Dont take details at face value.
• We will have standalone data-taking runs to test
  and validate as we find necessary/useful.
• Join in combined weekend runs when appropriate.
• Use simulator.
• Demonstrate stability over extended periods or
  discover problems to be fixed.
• Encouragement to take care of all the so-called
  trivial things.
• Opportunity for everyone to familiarize with
  activities.
