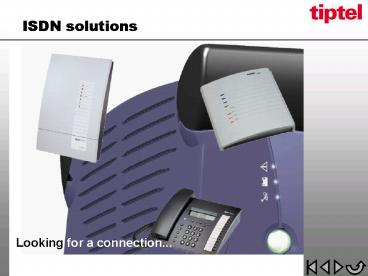

ISDN solutions

1
ISDN solutions
Looking for a connection...
2
ISDN PABXs

• tiptel 412 USB
• tiptel 31 home
• tiptel 21 clip
• tiptel 410/810 S clip
• System telephone tiptel 72 system
• tiptel UPS 500

3
Internet for Home and SoHo

• 1 external ISDN-connection
• 1 internal ISDN-bus
• 4 analogue extensions with CLIP
• Data connection via USB-port

tiptel 412 USB
4
PC configuration

• tiptel Manager for Windows 98, ME, 2000, XP
• Easy configuration of the PABX
• Configuration via USB port or internal ISDN bus
  with an ISDN PC card

tiptel 412 USB
5
Data connection

• plug internet quick and easy
  Internet-installation
• Dial-up networking for ISP access
• CAPI for Windows 98, ME, 2000, XP
• NDIS WAN miniport driver
• Virtual modem driver
• enternow SW for fax, telephony and answering
  machine on the PC

tiptel 412 USB
6
Features

• 4 ports for analogue terminals such as
  telephones, fax machines, answering machine,
  cordless phones etc.
• Configuration SW under Windows 98 / ME / 2000 /
  XP
• Configuration also via connected telephone
• Internal calls free of charge
• Call forwarding via 2nd B-channel or ISDN feature
  in the network
• 3 party conference
• Music on hold internal
• Integrated telephone book for 100 entries
• Call cost administration, 1000 data set stored
  internally
• Charge pulse for analogue phones
• Firmware-update via ISDN-server or PC

tiptel 412 USB
7
the cost-effective ISDN-PABX

• 1 external ISDN BRI (point to multipoint)
• 3 analogue connection for up to 9 units
• Least Cost Routing (LCR)
• operating status via LEDs
• setting with Windows-PC or terminal
• setting via telephone

tiptel 31 home
8
the solution for your home

• 1 external ISDN connection
• 6 MSN assigned to internal connections
• call forwarding and transfer, e.g. to a mobile
  phone (remote modification possible)
• PC online connection with ISDN card or modem

tiptel 31 home
9
LCR and update server

• LCR- data
• firmware update (alternatively via PC)

tiptel 31 home
10
the cost-efficient solution

• ISDN- terminal adapter with the functions of a
  small PABX
• 1 ISDN- point-to-multipoint
• 2 analogue connections for up to 6 units
• indication of operating status and line
  occupation via LEDs

tiptel 21 clip
11
ISDN with system

• point-to-point or point-to-multipoint
• 4 or 8 analogue extensions
• system telephones
• calling line identification presentation (CLIP)
• indication of operating status and line
  occupation via LEDs
• serial PC- connection
• external music-on-hold

tiptel 410/810 S clip
12
solution for private or SOHO use

• parallel use of system telephones and analogue
  units possible
• PC-online connection via ISDN card or -modem
  (parallel at NTBA)
• door intercom phone and module available

tiptel 410/810 S clip
13
system telephone

• calling line identification presentation (system
  CLIP)
• busy line indicator
• menu-guided configuration of the PABX
• telephone directory for 100 entries
• automatic redialling
• easy connection to the analogue ports (4 wire
  technology)

tiptel 72 system
14
Overall view of the controls
Call list
Date / time
Day / night
Loudspeaker
tiptel 72 system
Mute function
Indication B-channel
Busy line indication
Call diversion
15
calling without interruption

• protection against power failure 230V
• specially tested with tiptel products
• 3 safety sockets (2 battery buffered and 1
  filtered)
• cold start (start without 230 V)
• wall-mounting
• set in delivery
• package

tiptel UPS 500
