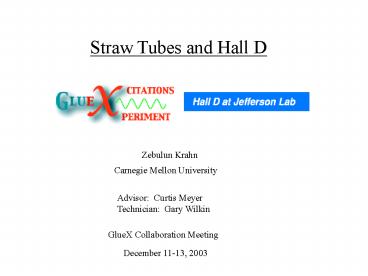

Zebulun Krahn

1
Straw Tubes and Hall D
Zebulun Krahn
Carnegie Mellon University
Advisor Curtis Meyer Technician Gary Wilkin
GlueX Collaboration Meeting
December 11-13, 2003
2
Outline of the Talk

• Work Done to Date

• Gas simulations, endplate production, etc

• Current Work

• Straws, feed-through system, glue tests,
  stringing

• Future Plans

• Electronics, DAQ, prototype testing

3
Built Gas Mixing System
Matches JLAB equipment
Can mix up to three gases
Completed June 02
4
Garfield Gas Simulations
Lorentz Angle vs. Drift Time
Note 62 -Completed Nov. 02
5
Studies of BNL Chamber
Studied performance of chamber with cosmics and
Ru106

• Studied coincidence between tubes

• Studied position dependence

• Dissection to analyze construction methods

Completed Dec. 02 Note 54
Note Very Leaky!
6
Prototype Endplates
¼ endplates machined checked at JLAB
Straight and Stereo layers
2-3 man months set-up and machining
Completed June 03
Note 61
Final Accomplishment Successfully closed out a
JLAB RD account
7
Current Work
Goal Build a prototype full scale ¼ chamber at
CMU
Since May of 03
8
Issues with Straw Tubes
Straw Tube vendors

• Vendors differ widely in price and service

• On preliminary order, as many as ¾ of the
  tubes, not usable

• Shipping of Tubes

How do you cut a 4 mil walled straw tube?
12,000RPM with a 10 mil blade
9
Issues with Straw Tube Chambers
They leak!

• Look for design that allows for gas-tight system

• Determine methods of containing leaks that do
  exist

• System design and product testing

• Epoxy testing

10
Epoxy Testing
Pressure Gauges
Two important criteria

• Gas-tight seal

• Electrical conductivity

Used a known non-conductive epoxy as
baseline 3M Scotch-Weld 2216
Two candidates, to date might use both

• Resin-Tech TIGA 920-H

• Tra-Con 2907

Held 2.5 PSI for several weeks
Fill Valve
11
Feed-Through System
Two main components

• Donuts

• Inserted in end of straw tube

Tube

• Hole and V-notch allow injection of epoxy

12
Feed-Through System II

• Feed-Through

• Inserted through
• endplate and
• captures donut

• Chamfer allows space for glue

13
Gas Flow System
Towards Gas-Tight goal

• Learned a lot from BNL chamber minimize leaks

• Plenum Design

Gas Seal

• Plexiglas plenum covers

• Stand-offs

• Electronics?

Gas Seal
14
Stringing Method
Axle system for stringing

• Whole chamber rotates on axis

• Hook Swivel

• Ball Joint Base Plate

• Tension cables prevent bowing

Note We are building stringing apparatus for
actual full size chamber!
15
Sliding Collars
Allow for capture of inner radius of endplates
Lower collar bolted to axle for strength
Upper collar allowed to slide capture, set
screwed in
16
Hook Swivel Joint
Steel plug inserted into aluminum axle

• Allows for use of crane/winch

• Mobility

• Allows for rotation of chamber

This steel plug will also be the anchor point for
tension cable/rods
17
Ball Joint Base Plate
Steel Plug inserted into aluminum axle

• Captures the bottom of axle

• Allows for rotation
• and more!

• Stereo layers

Base Plate will bolt to floor
18
The Axle
Specifications
Limiting factor ability to machine the axle

• Length 10 feet

• Radius 5.5 inch OD

• Wall Thickness ½ inch

• Weight 93 lbs

• Maximal Deflection for 600lb chamber 1.6 mm

19
Future Work

1. Actual Manufacture of required pieces

• Donuts, Feed-Throughs, sliding collars, 50 tube
  prototype

1. Electronics

• PC-Boards and Pre-Amps

1. Setting up DAQ

1. Upon completion of prototype, testing will be
   needed

20
Conclusion

• Work Done to Date

• Gas simulations, endplate production, etc

• Current Work

• Straws, feed-through system, glue tests,
  stringing

• Future Plans

• Electronics, DAQ, prototype testing
