Reference Resolution

1

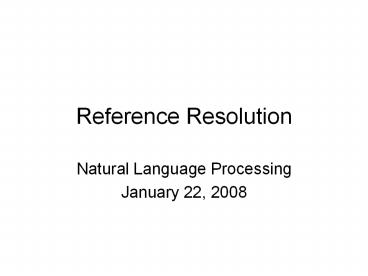

Reference Resolution

• Natural Language Processing
• January 22, 2008

2
Agenda

• Reference resolution
• Knowledge-rich, deep analysis approaches
• Centering
• Knowledge-based, shallow analysis CogNIAC (95)
• Learning approaches Fully, Weakly, and Un-
  Supervised
• CardieNg 99-04

3
Centering

• Identify the local center of attention
• Pronominalization focuses attention, appropriate
  use establishes coherence
• Identify entities available for reference
• Describe shifts in what discourse is about
• Prefer different types for coherence

4
Centering Structures

• Each utterance (Un) has
• List of forward-looking centers Cf(Un)
• Entities realized/evoked in Un
• Rank by likelihood of focus of future discourse
• Highest ranked element Cp(Un)
• Backward looking center (focus) Cb(Un)

5
Centering Transitions
6
Centering Constraints and Rules

• Constraints
• Exactly ONE backward -looking center
• Everything in Cf(Un) realized in Un
• Cb(Un) highest ranked item in Cf(Un) in Un-1
• Rules
• If any item in Cf(Un-1) realized as pronoun in
  Un, Cb(Un) must be realized as pronoun
• Transitions are ranked
• Continuing gt Retaining gt Smooth Shift gt Rough
  Shift

7
Centering Example

• John saw a beautiful Acura Integra at the
  dealership
• Cf (John, Integra, dealership) No Cb
• He showed it to Bill.
• Cf(John/he, Integra/it, Bill) Cb John/he
• He bought it
• Cf (John/he, Integra/it) Cb John/he

8
Reference Resolution Differences

• Different structures to capture focus
• Different assumptions about
• of foci, ambiguity of reference
• Different combinations of features

9
Reference Resolution Agreements

• Knowledge-based
• Deep analysis full parsing, semantic analysis
• Enforce syntactic/semantic constraints
• Preferences
• Recency
• Grammatical Role Parallelism (ex. Hobbs)
• Role ranking
• Frequency of mention
• Local reference resolution
• Little/No world knowledge
• Similar levels of effectiveness

10
Alternative Strategies

• Knowledge-based, but
• Shallow processing, simple rules!
• CogNIAC (Baldwin 95)
• Data-driven
• Fully or weakly supervised learning
• Cardie Ng ( 02-04)

11
Questions

• 80 on (clean) text. What about
• Conversational speech?
• Ill-formed, disfluent
• Dialogue?
• Multiple speakers introduce referents
• Multimodal communication?
• How else can entities be evoked?
• Are all equally salient?

12
More Questions

• 80 on (clean) (English) text What about..
• Other languages?
• Salience hierarchies the same
• Other factors
• Syntactic constraints?
• E.g. reflexives in Chinese, Korean,..
• Zero anaphora?
• How do you resolve a pronoun if you cant find it?

13
CogNIAC

• Goal Resolve with high precision
• Identify where ambiguous, use no world knowledge,
  simple syntactic analysis
• Precision correct labelings/ of labelings
• Recall correct labelings/ of anaphors
• Uses simple set of ranked rules
• Applied incrementally left-to-right
• Designed to work on newspaper articles
• Tune/rank rules

14
CogNIAC Rules

• Only resolve reference if unique antecedent
• 1) Unique in prior discourse
• 2) Reflexive nearest legal in same sentence
• 3) Unique in current prior
• 4) Possessive Pro single exact poss in prior
• 5) Unique in current
• 6) Unique subj/subj pronoun

15
CogNIAC Example

• John saw a beautiful Acura Integra in the
  dealership.
• He showed it to Bill.
• He John Rule 1 it -gt ambiguous (Integra)
• He bought it.
• HeJohn Rule 6 itIntegra Rule 3

16
Data-driven Reference Resolution

• Prior approaches
• Knowledge-based, hand-crafted
• Data-driven machine learning approach
• Cast coreference as classification problem
• For each pair NPi,NPj, do they corefer?
• Cluster to form equivalence classes

17
NP Coreference Examples

• Link all NPs refer to same entity

Queen Elizabeth set about transforming her
husband, King George VI, into a viable monarch.
Logue, a renowned speech therapist, was summoned
to help the King overcome his speech
impediment...
Example from CardieNg 2004
18
Training Instances

• 25 features per instance 2NPs, features, class
• lexical (3)
• string matching for pronouns, proper names,
  common nouns
• grammatical (18)
• pronoun_1, pronoun_2, demonstrative_2,
  indefinite_2,
• number, gender, animacy
• appositive, predicate nominative
• binding constraints, simple contra-indexing
  constraints,
• span, maximalnp,
• semantic (2)
• same WordNet class
• alias
• positional (1)
• distance between the NPs in terms of of
  sentences
• knowledge-based (1)
• naïve pronoun resolution algorithm

19
Classification Clustering

• Classifiers
• C4.5 (Decision Trees), RIPPER
• Cluster Best-first, single link clustering
• Each NP in own class
• Test preceding NPs
• Select highest confidence coref, merge classes
• Tune Training sample skew class, type

20
Classifier for MUC-6 Data Set
21
Unsupervised Clustering

• Analogous features to supervised
• Distance measure weighted sum of features
• Positive infinite weights block clustering
• Negative infinite weights cluster, unless
  blocked
• Others, heuristic
• If distance gt r (cluster radius), non-coref
• Clustering
• Each NP in own class
• Test each preceding NP for dist lt r
• If so, cluster, UNLESS incompatible NP
• Performance Middling b/t best and worst

22
Problem 1

• Coreference is a rare relation
• skewed class distributions (2 positive
  instances)
• remove some negative instances

NP3
NP4
NP5
NP6
NP7
NP8
NP9
NP2
NP1
farthest antecedent
23
Problem 2

• Coreference is a discourse-level problem
• different solutions for different types of NPs
• proper names string matching and aliasing
• inclusion of hard positive training instances
• positive example selection selects easy positive
  training instances (cf. Harabagiu et al. (2001))

Queen Elizabeth set about transforming her
husband, King George VI, into a viable monarch.
Logue, the renowned speech therapist, was
summoned to help the King overcome his speech
impediment...
24
Problem 3

• Coreference is an equivalence relation
• loss of transitivity
• need to tighten the connection between
  classification and clustering
• prune learned rules w.r.t. the clustering-level
  coreference scoring function

coref ?
coref ?
Queen Elizabeth set about transforming her
husband, ...
not coref ?
25
Weakly Supervised Learning

• Exploit small pool of labeled training data
• Larger pool unlabeled
• Single-View Multi-Learner Co-training
• 2 different learning algorithms, same feature set
• each classifier labels unlabeled instances for
  the other classifier
• data pool is flushed after each iteration

26
Effectiveness

• Supervised learning approaches
• Comparable performance to knowledge-based
• Weakly supervised approaches
• Decent effectiveness, still lags supervised
• Dramatically less labeled training data
• 1K vs 500K

27
Reference Resolution Extensions

• Cross-document co-reference
• (Baldwin Bagga 1998)
• Break the document boundary
• Question John Smith in A John Smith in B?
• Approach
• Integrate
• Within-document co-reference
• with
• Vector Space Model similarity

28
Cross-document Co-reference

• Run within-document co-reference (CAMP)
• Produce chains of all terms used to refer to
  entity
• Extract all sentences with reference to entity
• Pseudo per-entity summary for each document
• Use Vector Space Model (VSM) distance to compute
  similarity between summaries

29
Cross-document Co-reference

• Experiments
• 197 NYT articles referring to John Smith
• 35 different people, 24 1 article each
• With CAMP Precision 92 Recall 78
• Without CAMP Precision 90 Recall 76
• Pure Named Entity Precision 23 Recall 100

30
Conclusions

• Co-reference establishes coherence
• Reference resolution depends on coherence
• Variety of approaches
• Syntactic constraints, Recency, Frequency,Role
• Similar effectiveness - different requirements
• Co-reference can enable summarization within and
  across documents (and languages!)

31
Coherence Coreference

• Cohesion Establishes semantic unity of discourse
• Necessary condition
• Different types of cohesive forms and relations
• Enables interpretation of referring expressions
• Reference resolution
• Syntactic/Semantic Constraints/Preferences
• Discourse, Task/Domain, World knowledge
• Structure and semantic constraints

32
Challenges

• Alternative approaches to reference resolution
• Different constraints, rankings, combination
• Different types of referent
• Speech acts, propositions, actions, events
• Inferrables - e.g. car -gt door, hood, trunk,..
• Discontinuous sets
• Generics
• Time

33
Discourse Structure Theories

• ,Natural Language Processing
• CMSC 35100-1
• January 22, 2008

34
Roadmap

• Goals of Discourse Structure Models
• Limitations of early approaches
• Models of Discourse Structure
• Attention Intentions (Grosz Sidner 86)
• Rhetorical Structure Theory (Mann Thompson 87)
• Contrasts, Constraints Conclusions

35
Why Model Discourse Structure?(Theoretical)

• Discourse not just constituent utterances
• Create joint meaning
• Context guides interpretation of constituents
• How????
• What are the units?
• How do they combine to establish meaning?
• How can we derive structure from surface forms?
• What makes discourse coherent vs not?
• How do they influence reference resolution?

36
Why Model Discourse Structure?(Applied)

• Design better summarization, understanding
• Improve speech synthesis
• Influenced by structure
• Develop approach for generation of discourse
• Design dialogue agents for task interaction
• Guide reference resolution

37
Early Discourse Models

• Schemas Plans
• (McKeown, Reichman, Litman Allen)
• Task/Situation model discourse model
• Specific-gtGeneral restaurant -gt AI planning
• Topic/Focus Theories (Grosz 76, Sidner 76)
• Reference structure discourse structure
• Speech Act
• single utt intentions vs extended discourse

38
Discourse Models Common Features

• Hierarchical, Sequential structure applied to
  subunits
• Discourse segments
• Need to detect, interpret
• Referring expressions provide coherence
• Explain and link
• Meaning of discourse more than that of component
  utterances
• Meaning of units depends on context

39
Earlier Models

• Issues
• Conflate different aspects of discourse
• Task plan, discourse plan
• Ignore aspects of discourse
• Goals intentions vs focus
• Overspecific
• Fixed plan, schema, relation inventory

40
Attention, Intentions and the Structure of
Discourse

• GroszSidner (1986)
• Goals
• Integrate approaches for focus (reference res.),
  plan/task structure, discourse structure, goals
• Three part model
• Linguistic structure (utterances)
• Attentional structure (focus, reference)
• Intentional structure (plans, purposes)

41
Linguistic Structure

• Utterances group into discourse segments
• Hierarchical, not necessarily contiguous
• Not strictly decompositional
• 2-way interactions
• Utterances define structure
• Cue phrases mark segment boundaries
• But, okay, fine, incidentally
• Structure guides interpretation
• Reference

42
Intentional Structure

• Discourse participants overall purpose
• Discourse segments have purposes (DP/DSP)
• Contribute to overall
• Main DP/DSP intended to be recognized

43
Intentional Structure Relations

• Two relations between purposes
• Dominance
• DSP1 dominates DSP2 if doing DSP2 contributes to
  achieving DSP1
• Satisfaction-Precedence
• DSP1 must be satisfied before DSP2
• Purposes
• Intend that someone know something, do something,
  believe something, etc
• Open-ended

44
Attentional State

• Captures focus of attention in discourse
• Incremental
• Focus Spaces
• Include entities salient/evoked in discourse
• Include a current DSP
• Stack-structured
• higher-gtmore salient, lower still accessible
• Pushsegment contributes to previous DSP
• Pop segment to contributes to more dominant DSP
• Tied to intentional structure

45
Attentional State cntd.

• Focusing structure depends on the intentional
  structure the relationships between DSPs
  determine pushes and pops from the stack
• Focusing structure coordinates the linguistic and
  intentional structures during processing
• Like the other 2 structures, focusing structure
  evolves as discourse proceeds

46
Discourse examples

• Essay
• Task-oriented dialog
• Intentional structure is neither identical nor
  isomorphic to the general plan

47
0
The "movies" are so attractive to the great
American public, especially to young people, that
it is time to take careful thought about their
effect on mind and morals. Ought any parent to
permit his children to attend a moving picture
show often or without being quite certain of the
show he permits them to see? No one can deny, of
course, that great educational and ethical gains
may be made through the movies because of their
astonishing vividness. But the important fact to
be determined is the total result of continuous
and indiscriminate attendance on shows of this
kind. Can it other than harmful? In the first
place the character of the plays is seldom of the
best. One has only to read the ever-present
"movie" billboard to see how cheap, melodramatic
and vulgar most of the photoplays are. Even the
best plays, moreover, are bound to be exciting
and over-emotional. Without spoken words, facial
expression and gesture must carry the meaning
but only strong emotion or buffoonery can be
represented through facial expression and
gesture. The more reasonable and quiet aspects of
life are necessarily neglected. How can our young
people drink in through their eyes a continuous
spectacle of intense and strained activity and
feeling without harmful effects? Parents and
teachers will do well to guard the young against
overindulgence in the taste for the "movie".
1
2
3
4
5
6
48
H1. First you have to remove the flywheel . R2.
How do I remove the flywheel? H3. First, loosen
the screw , then pull it off. R4. OK .5. The
tool I have is awkward. Is there another tool
that I could use instead? H6. Show me the tool
you are using. R7. OK. H8. Are you sure you are
using the right size key? R9. Ill try some
others. 10. I found an angle I can get at it
. 11. The screw is loose, but Im having trouble
getting the flywheel off. H12. Use the
wheelpuller . Do you know how to use it ? R13.
No. H14. Do you know what it looks like? R15.
Yes. H16. Show it to me please. R17. OK. H18.
Good. Loosen the screw in the center and place
the jaws around the hub of the flywheel, then
tighten the screw onto the center of the shaft.
The flywheel should slide off.
49
Processing issues

• Intention recognition
• What info can be used to recognize an intention
• At what point does this info become available
• Overall processing module has to be able to
  operate on partial information
• It must allow for incrementally constraining the
  range of possibilities on the basis of new info
  that becomes available as the segment progresses

50

• Info constraining DSP
• Specific linguistic markers
• Utterance-level intentions
• General knowledge about actions and objects in
  the domain of discourse
• Applications of the theory
• Interruptions
• Weak not linked to immediate DSP
• Strong - not linked to any DSP
• Cue words

51
Interruption

• John came by and left the groceries
• Stop that you kids
• And I put them away after he left

kids DSP2
John, groceries DSP1
John, groceries DSP1
52
Conclusions

• Generalizes approaches to task-oriented dialogue
• Goal Domain-independence
• Broad, general, abstract model
• Accounts for interesting phenomena
• Interruptions, returns, cue phrases

53
More conclusions

• Asks more questions than it answers.
• How do we implement these aspects of dialog?
• Is it remotely feasible????
